Automobile Detergent Production Machine

Automobile Detergent Production Machine photo-1
Automobile Detergent Production Machine photo-2
Automobile Detergent Production Machine photo-3
Automobile Detergent Production Machine photo-4
US$ 13,000 - 14,952 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
JINMEITU
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port Shanghai port Tianjin port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name JINMEITU
Voltage 220V/380V
Dimension(L*W*H) Depeneds
Processing Types Liquid
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Automatic automobile care products, detergent product, liquid product producing line especial for windshield cleaning fluid, glass cleaner, engine coolant, antifreeze liquid, automobile detergent, almighty detergent, tyre wax and other room temperature stirred liquid products. Widely used in auto repair workshop, auto product factories, auto beauty shop, automobile refitted shop and so on.
Easy operation. Two workers can produce 5-6 MT automobile products in 8 hours.
All the product formula of products mentioned above , are free to customers, which are also used in our production in China.




Advanced Small Size Water Treatment
RO Membrane Reverse Osmosis System
RO membrane is imported from USA . Design with a individual filter for RO membrane protecting.
Water Outlet Grade
Drinking water standard
Capacity
0.5MT/ H
No. of Tanks
3
Material of Tank
Glass fiber reinforce plastic

4 Taps Automatic Filling Line
4 taps automatic filling machine
4 taps for filling, 4 times filling efficiency
Length of Conveyor
4 meters , speed adjustable

Multifunction Semi-Automatic Feeding Machine
Function
Filling and Feeding
Features
Timing and dosing, adjustable, easy operation
Quatity of Filters inner
2



Dual Power Agitator
Material
SUS 304 Stainless Steel
Volume Capacity
1 MT
Mixing Mode
Liquid materials are mixed by draught machine and a circulating pump, more effective.
Quatity of Agitator
2

Automatic Ink Printer
Operation Mode
Automatic or Manual
Printing Speed
0-60pcs/min
Aluminum Foil Sealing Machine
Sealing Spead
0-50pcs/min
Quality Inspection Device
devices include
Freezing point detector, Boiling point detector, Alcohol meter
Workbentch
Material
Stainless Steel
Cap Screwing Machine
Power
Electric power supply
Detailed Images

Advanced Small Size Water Treatment

* Large particulate matters, iron and manganese are filtered in the first glass fiber reinforce plastic tank
* Peculiar smell is eliminated in the second tank.
* Sodium, calcium, magnesium, and other little microelement will be filtered in the third tank by resin inner. Water after treating flow through six blue filter bottles with PP cotton.
* Three tanks designed with self-cleaning function, no need to disassemble them for cleaning.
* Designed with RO rambrabe osmosis reverse system brought from USA. Water will be highly purified here, grade up to drinking satandard.
* One filter before RO reverse osmosis system for protecting.
* Two water inlet pressure gages, display of conductivity of water inlet and outlet, display of flowmeter of unqualified and qualified water, more easy to operate.

*  RO membrane self-cleaning function, realize the repeated use of RO membrane.

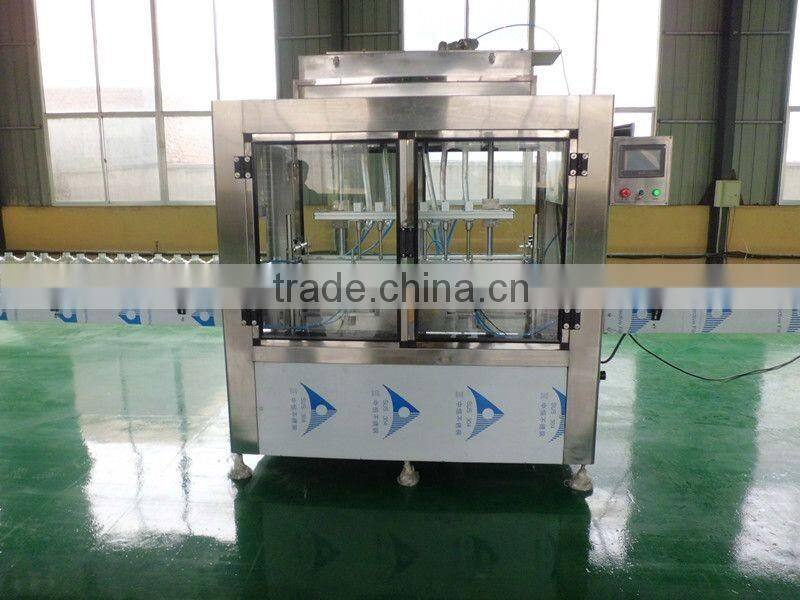

Medium Size Automatic Filling Line

4 taps for filling, 4 times of your efficiency. Designed with 4 meters conveyor witch speed is ajuastable . Suitable for liquid product filling work, such like glass cleaner, windshield cleaning fluid, antifreeze liquid, engine coolant, automobile almighty detergent, automobile detergent and beverage .

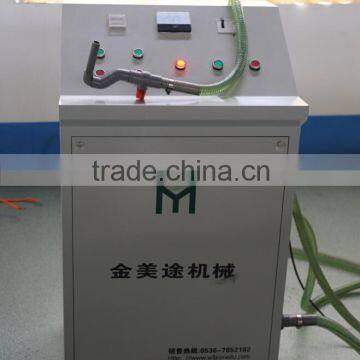

Multifunction Semi-Automatic Feeding Machine

*  Two PP cotton filters inner, could be used in filling and feeding. Liquid materials and products can be purified again.

*  Timing and dosing filling or feeding, adjustable as need.

*  Pressure control walve ensure filling or feeding effect.

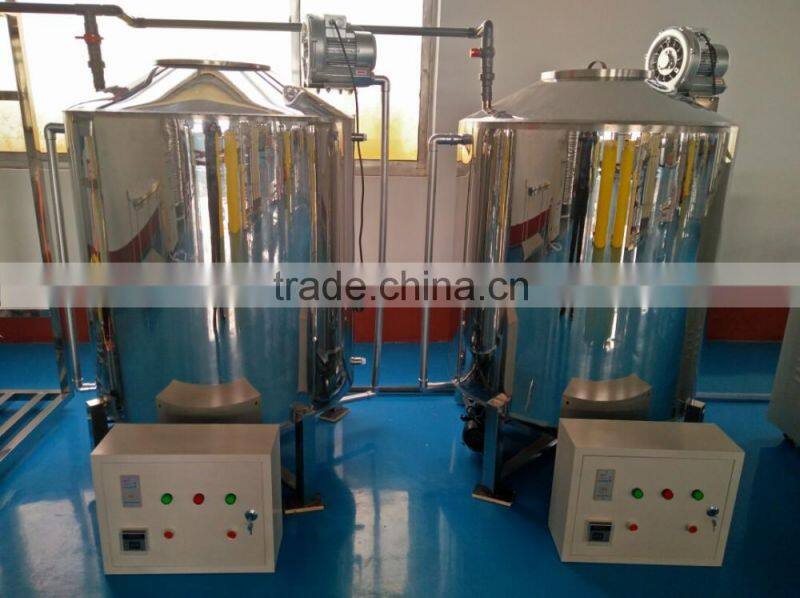

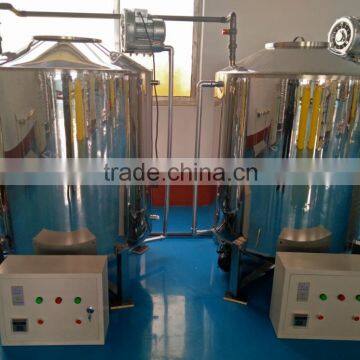

Dual Power Agitator

*  Made of SUS 304 stainless steel, good performance in acid and alkali resistance.

*  Longer useful life.

*  1MT volume capacity one time for each agitator.

*  Easy to clean and feeding.

*  Stirring blade is driven by a draught machine upper and a circulating pump under, more effective

*  There is one PLC control box for each agitator.

Cap Screwing Machine

*  Cap range: Diameter from 10mm to 50mm.

*  Adjustable cluth protect caps effeciently.

*  Once caps are fastened, this cap screwing machine will be stop working immediately.

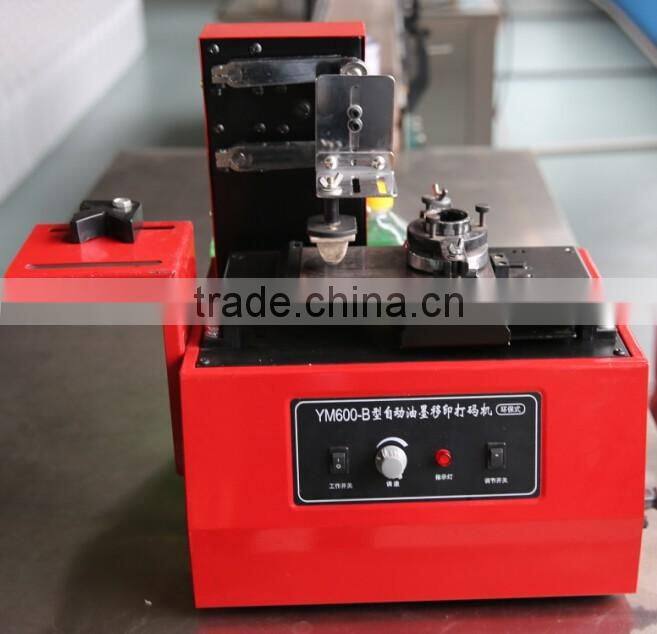

Automatic Ink Printer

*  Printing speed could be adjustable as need.

    0-60pcs/min

*  Operation mode:  Automatic or manual

Automatic Aluminum Foil Sealing Machine

*  Electromagnetic heating design

*  Sealing speed could be adjustable as need. 0-50pcs/min


Packing & Delivery

* Prepare machines according to the packing list.

* Debug all the spare parts.

* Assemble equipments.

* Set up new machines.

* Twine your machines with stretch film first.

* Packing all your machines with composite board case.

* Delivery with packing list

* Or packing as requests by customers.
