7 Inch Wall Mount Android Tablet With Etherner RJ45 POE For Industrial Control
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Screen Size:
Other, 7"
Processor Manufacture:
AllWinner
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
7" Industrial Tablet PC Android POE RS485 With Temperature Humidity SensorNegotiableMOQ: 1 Piece -
Embeded Wall Automation Android POE Operator With Temperature/Humidity SensorNegotiableMOQ: 1 Piece
-
7" Aluminum On Wall Interactive Android POE Tablet For Hotel/Home AutomationNegotiableMOQ: 1 Piece
-
Automation 7" Android POE Control Panel With Temperature/Humidity SensorNegotiableMOQ: 1 Piece
-
7" IPS Table Display Restaurant Electronic Ordering Menu Android Touch PanelNegotiableMOQ: 1 Piece
Products Status
Stock
Screen Size
Other, 7"
Processor Manufacture
AllWinner
Processor Type
Other, dual core
Processor Main Frequency
1.2GHz
Hard Drive Capacity
8GB
Memory Capacity
1GB
Touch Screen Type
Capacitive Screen
Display resolution
1024x600
Operating System
Other, Android 4.2.2
Weight
390g
Place of Origin
Guangdong, China
Brand Name
Sibo
Model Number
Q896
Color
Black, Transparent, White
Battery Life
n/a
7 Inch Wall Mount Android Tablet With Etherner RJ45 POE For Industrial Control
Interface:
RJ45 (Power over ethernet POE)
- HDMI OUT
- USB 2.0 (USB Host/USB Slave,can support two USB 2.0 port Max)
- CVBS IN
- DC IN (9-24V)
- RS232/RS485/GPIO optional
Network:
- WiFi 802.11b/g/n
- LAN Ethernet RJ45
- Bluetooth 4.0
- 3G(W-CDMA) USB dongle optional
Mount:
- Desktop mount
- Glass wall mount
- Inwall flush mount
- Onwall mount/shelf mount
Customized Service:
- Customized animation firmware with your logo (available in bulk order)
- Temperature/Humidity Light Sensor
- Customzied with USB jumper for debugging
| Model Number | Q896 | |||
| Hardware Specs | Solution | Allwinner Dual-Core Cortex™-A7 CPU | ||
| CPU | ARM Cortex A7 Dual-Core, 1.2GHz | |||
| Display | 7 Inch IPS Display, Resolution:1024 x 600, Brightness: 350 cd/m2 | |||
| RAM | 1GB | |||
| Nand Flash | 4GB | |||
| Software Feature | System | Google Android 4.2.2 | ||
| Video | H.264 2160p video decoding, Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264, VP6/8, AVS jizun, Jpeg/Mjpeg,etc. H.264 High Profile 1080p@30fps or 720@60fps encoding 3840 x 1080@30fps 3D decoding, BD/SBS/TAB/FP supported Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols | |||
| Audio | Integrated 3W Amplifier (No Speakers, Only Speaker connector) | |||
| Language | Support multi-languages | |||
| Interfaces | Back | Ethernet Interface(RJ45) | ||
| HDMI Out | ||||
| USB Socket | ||||
| CVBS IN | ||||
| DC IN Power Terminal (9V-24V) | ||||
| UART, IO, 3W AMP OUT Available | ||||
| Network | WIFI+BLUETOOTH | WIFI (802.11b/g/n), Bluetooth v2.1+EDR/Bluetooth 3.0/3.0+HS/4.0 | ||
| LAN Port | Ethernet RJ45 | |||
| Power Supply | DC IN | DC 9V - 24V | ||
| Boot Up | Auto Boot | Auto Boot Up When Power Supplies | ||
| Software | Auto Run Web App | |||
Inwall flush mount:

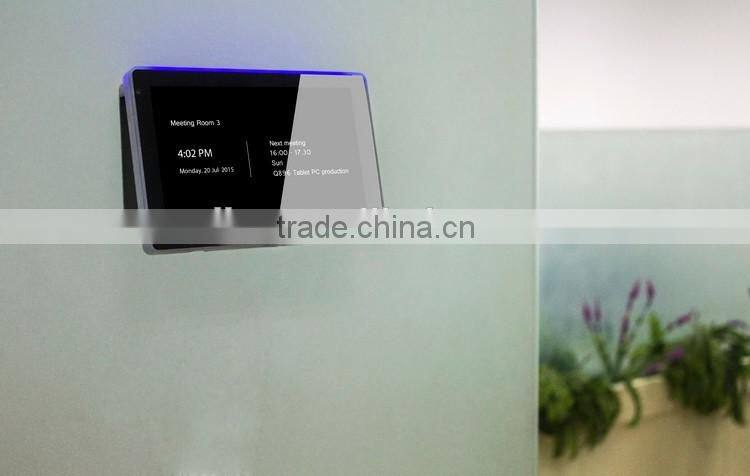

Onwall mount / shell mount:
Tabletop mount:

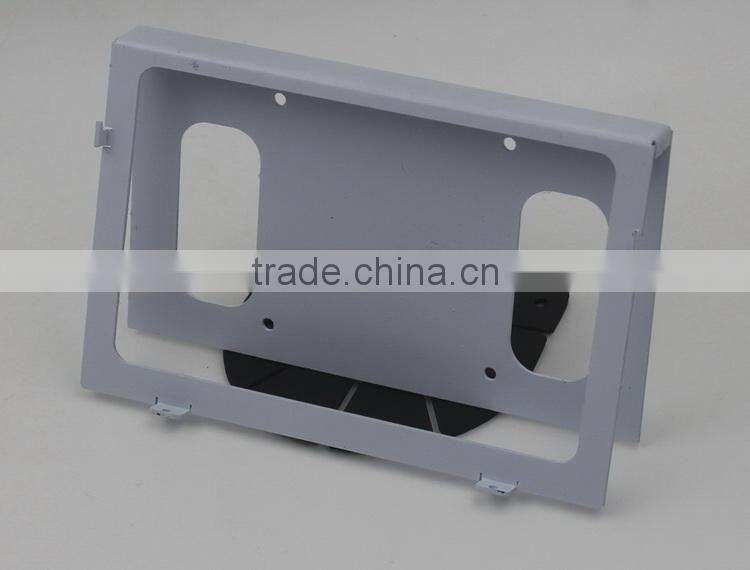

Glass mounting bracket:
Packaging & Shipping
Package:
Devices are packed by air column bag, 10 devices in one carton box
Carton Size:55*36*24cm
Gross Carton Weight: 12 kg
Shipping:
Sample lead time: 5-7 working days
Order>100 pcs: 20-25 working days
Sample shipped by express (DHL, TNT, UPS)
Our Services
Hardware and software support:
Modification on both hardware and software to meet your requirements
After sale service:
Instant response to all your questions
Company Information
Found in the year of 2001 and have ability of design, research & development, production
Professional production line: Dust-free
Aging test for more than 6 hours before final full function check:
Engineer Check on production line:
