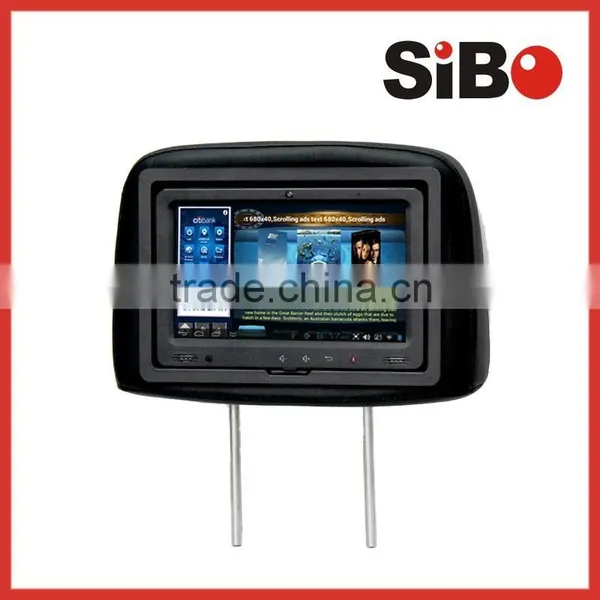

Bus Headrest Android Monitor for Passenger Entertainment with VOD System

Specifications

Bus Headrest Android Monitor
Wifi/3G/RJ45
DC IN 9V-27V /POE:24V
Customized VOD System
Multi-view Angle Adjustable Screen

Bus Headrest Android Monitor for Passenger Entertainment with VOD System,Say Goodby to Boring Road Trips



Main Specifications:

• Constant Voltage Control Circuit(9V-27V)
• Non Standard POE:24V ---Optional
• 3G Module(W-CDMA)---Optional
• Wifi(802.1b/g/n)---Optional
• Camera(0.3MP) ---Optional
• TF CARD Slot(Support 1GB-32GB)
• Muti-View Angle Adjustable Screen (90 Degrees)
• Shockproof Design
• Backlight Buttons
• Atuo Boot Up When Power Supplies or Vehicle Ignition is on---Optional
• Power Button Works as Menu Button---Optional
• Auto-Run Customized VOD System Full Screen---Optional
• Customized Logo Printed on the Touch Monitor ---Optional



Model Number	Q9V(with back frame);Q9w(without back frame)
Solution	Via WM8850, 1.2GHz, Cortex-A9; GPU: Mali-400
System	Android 4.0.3/Android 4.1
Display	9 Inch Five Points Multi Touch Capacitive Screen(800x480 pixel,16:9)
RAM	DDR3 512MB
Nand Flash	8G
Audio Format	MP3 / WMA / WAV / AAC / FLAC / OGG
Video Format	MOV 1080P, AVI / WMV / RM / RMVB / 3GP / MKV / MP4 / ASF/ VOB
Ports/Slots	Earphone Jack*1
	Speakers 1W *2
	Front Camera(optional)
	TF CARD slot ( Supprot 1GB-32GB )
	Ethernet Interface(RJ45)
	DC IN Power Terminal (Support :9V -- 27VDC)
	USB Port For 3G Dongle
Network	WIFI (802.11b/g/n)
	3G Module
	Ethernet RJ45
Power	Power Supply (Support :9V -- 27VDC)
	Battery(1800mAh/3.7V)
	Non Standard Power Over Ethernet:24V
	Car power,engine and taxi meter
Usage	Headrest (For private cars, commercial vehicle, taxi, bus)





Bus -Media On Demand System

• Touch screen automatically switches on when ignition is on
• Software runs as soon as monitor boots up
• Passengers can choose music,movie,game as they like to enjoy their trip
• Six icons on the main user interface: movie, game, internet, mobile TV, travel, settings
• Input password in settings to return to android standard user interface











Complete solution with bus touch monitor—Bus Entertaiment System



Non Standard POE:24V



Non Standard POE(Power On Ethernet 24V) can be used in bus VOD system Installation to reduce arrangement of wires,The POE technology feature is a system that safely transfers electrical power, along with data to remote devices over standard category 5 cable(cat 5) in an Ethernet network. It does not require modification of existing Ethernet cabling infrastructure.



















 We are also specialized in customizing software for you!







 Installations:



As a manufacture,Sample and ODM/OEM orders as well as your ideas are welcome,and we could provide a complete solution of hardware and software for the bus headrest entertainment.
