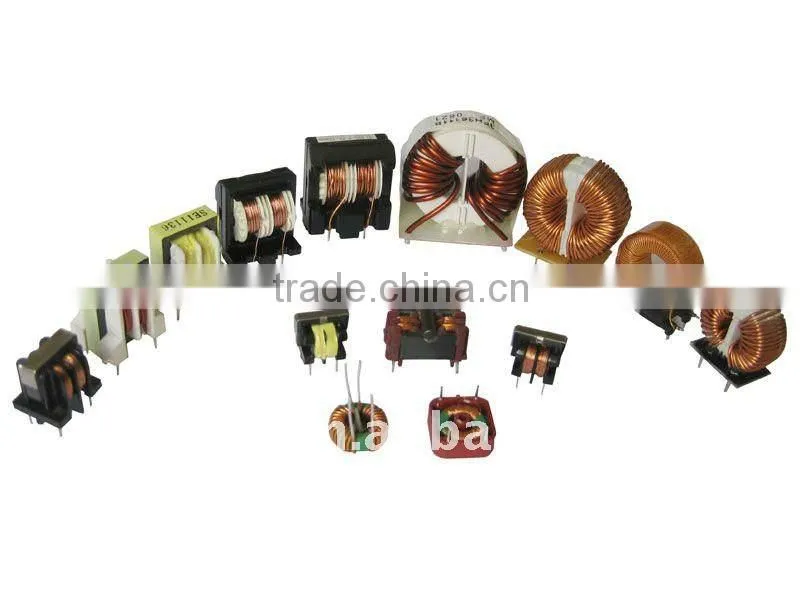

Help CenterCustomized PCB Mounted Electronic Transformer
Related Products
-
High Quality Encapsulated EI TransformersNegotiableMOQ: 300 Pieces -
Encapsulated Toroidal Transformers ,electronic TransformersNegotiableMOQ: 300 Pieces
-
Flyback Transformer Electronic TransformersNegotiableMOQ: 300 Pieces
-
Low Frequency EI TYPE TransformerNegotiableMOQ: 3000 Sets
-
Low Frequency R Shaped Transformer/special TransformerNegotiableMOQ: 1000 Pieces
Specifications
PCB mounted electronic transformer1.Electronic transformer
2.Low profile and low weight
3.Low temperature rise

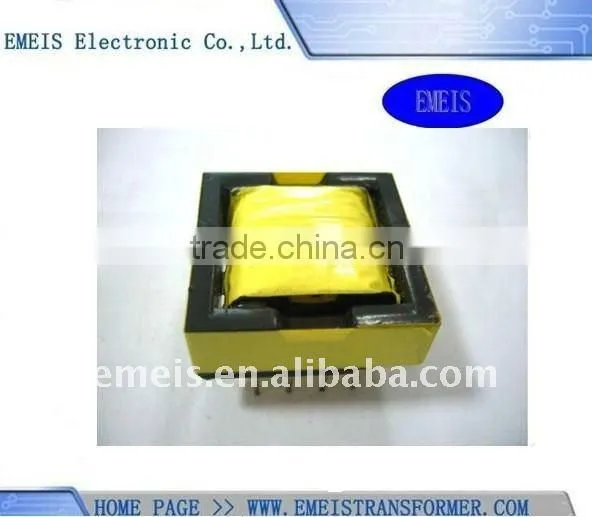

PCB mounted electronic transformer
1. Maximum Power: 20.0VA
2. Primary: Series: 230V; Parallel: 115V
3. Secondary: Series: 16.0V CT@ 1.25A; Parallel: 8.0V @ 2.5A
4. Voltage Regulation: 25% TYP @ full load to no load
5. Temperature Rise: 25C TYP
6. Hipot tested 100% at 2500 VRMS
Construction:
Three flange bobbin construction with primaries and secondaries wound side by side for low capacitive coupling.
Agency File:
UL: File E53148, UL 5085-2 (506), Class B General Purpose Transformer,
CUL: File E53148, UL 5085-2 (506), Class B General Purpose Transformer,
Canadian Use (CSA 22.2, No. 66.2-06)
This model is also available in Class 2, UL 5085-3 (1585) version
Remark:the above parameter is only for your reference ,customer-made is subject to costomer's request
