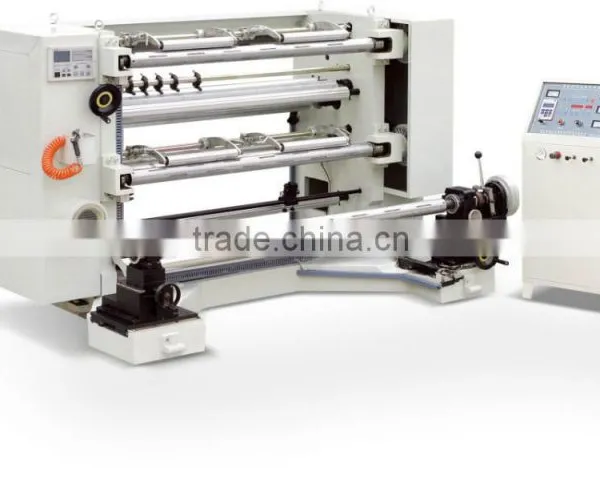

Slit cutting machine for BOPP,PET,CPP,CPE,PVC,PE,Aluminum foil laminated with film
Application:
Slit cutting machine for BOPP,PET,CPP,CPE,PVC,PE,Aluminum foil laminated with film is suitable for alitting and rewinding such various roll materials as BOPP.PET.CPP,CPE.PVC.aluminum foil laminated with film and pape,etc,And can cut edge,separate and cut material according to different requirements during production.
Characteristics:
- Main motor equipped with inverter for speed regulation
- Separated General Control Cabinet.more flexible and even easier operation
- Automatic EPC for Unwinding .photocell is suitable for tracking the edge and /or the linde of material
- Equipped with air shaft for unwinding material loading ,magnetic powder brake and auto tension controller
- Air shaft for rewinding (frictional cam shaft avaliable for option),Magnetic powder clutch for rewinding tension control
- Equipped with air trim discharge conveying system
- Automatic meter counting device
- Pressure roller for rewinding to make rewinding roll more uliform
- Disk knife avaliable for option
Type | FQ-L700B | FQ-L1100B | FQ-L1300B |
Max.Width of Mother Roll | 700mm | 1100mm | 1300mm |
Max.Diameter of Mother Roll | 600mm | 600mm | 600mm |
Width of Final Roll | 50-700mm | 50-1100mm | 50-1300mm |
Max.Diameter of Rewinding | 450mm | 450mm | 450mm |
Internal Diameter of Roll Core | 76mm | 76mm | 76mm |
Mechanical Speed | 180m/min | 180m/min | 180m/min |
Slitting and Rewinding Speed | 160m/min | 160m/min | 160m/min |
Tolerance of EPC | ±0.5mm | ±0.5mm | ±0.5mm |
Total Power | 2.9kw | 3.7kw | 3.7kw |
Weight of Machine | 1300kg | 1600kg | 1900kg |
Overaqll Dimension(L*W*H) | 1570*2100*1500mm | 1570*2500*1500mm | 1570*2700*1500mm |
