Help Center2015 New GF-D High Speed Laminating Machine for BOPP,PET,Nylon ,CPP,CPE.Aluminum Foil and Paper.etc
Related Products
-
High Speed Laminating Machine 180m/minUS$ 110,700 - 118,100MOQ: 1 Set -
180m/min High Speed Laminating Machine (GF-D Series)US$ 110,700 - 118,100MOQ: 1 Set
-
Solventless Laminating MachineNegotiableMOQ: 1 Set
-
Film Solventless Laminating MachineNegotiableMOQ: 1 Set
-
Solventless Laminating Machine for Pet, Bopp Etc.NegotiableMOQ: 1 Set
To be the Best Printing&Packaging Manufacture in China
Company introduction:
- 14 years experience in packing industrial
- Appliance is strictly in accordance with CE standard
- Assembly&parts are processed by CNC lathe
- Good after-sale service
- Prompt reply within 24 hours
- Professional&enthusiastic sales team
FangBang Development History:
- August ,1999 ---Ruian.jianshe Packing Equipment Co.,Ltd ,Was established
- April ,2002 ---Shanghai Fangbang industry Co.,Ltd Wad established
- October, 2003 ---Main products passed the inspection of Zhejiang Province Light Industry Machine Quality Supervision and Inspection Center,past the Province Level Authentication an listed by Govenment Authorities as the new products
- August .2005 ---Jiangsu Fangbang Machinery Co.,Ltd Was established
- October .2005 ---Passed ISO9001:2000 Authentication
- May,2006 ---Zhejiang Fangbang Machiery Co.,Ltd .Was established
- Augus,2006 --- Passed CE Authentication
- July ,2010 --- The Famous Product of Ruian City
- September ,2010 -- The Famous Brand of Ruian City
- August,2011 --- National High&New Technology Enterprise

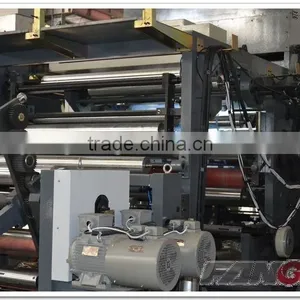

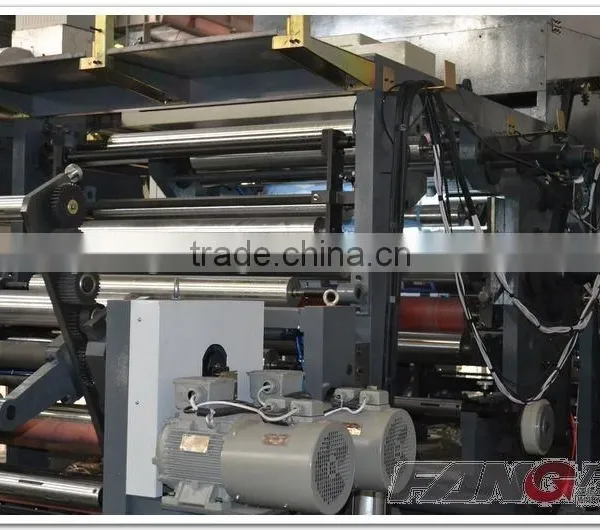

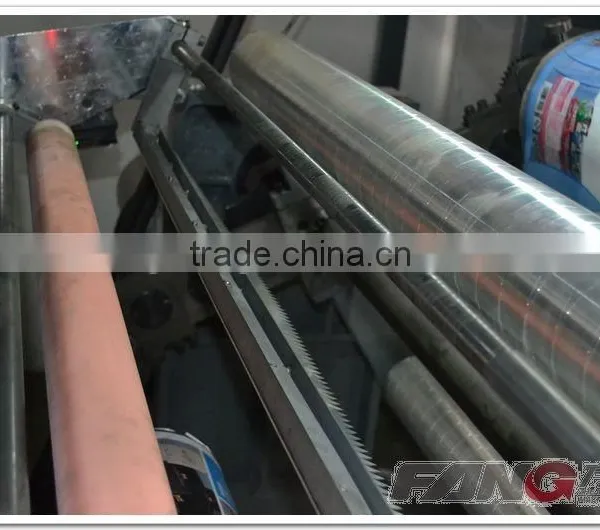

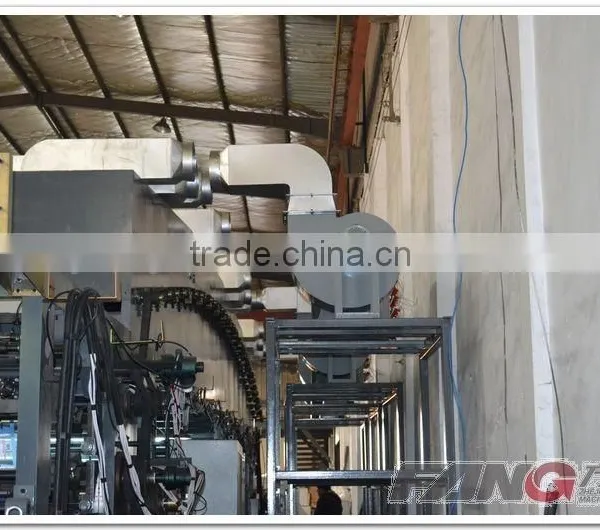

2015 New GF-D high speed laminating machine for BOPP,PET,Nylon ,CPP,CPE.Aluminum foil and paper.etc
2015 New GF-D high speed laminating machine for BOPP,PET,Nylon ,CPP,CPE.Aluminum foil and paper.etc is suitable for multi-color once-through continuous printing for such roll film materials with excellent printing performance as BOPP,PET.PVC,PE ,Aluminum foil and paper ,etc
------ Skype: zhezhoutiankong -----
| Type | GF-1050D | GF-1250D |
| Max.Laminating width | 1000mm | 1200mm |
| Max.Web.Width | 1050mm | 1250mm |
| Max.Laminating speed | 180m/min | 180m/min |
| Max.Mechanical speed | 200m/min | 200m/min |
| Max.Diameter of Material roll | 600mm | 600mm |
| Max,Diameter of rewinding | 800mm | 800mm |
| Internal Diameter of roll core | 76mm | 76mm |
| Length of Drying chamber | 12000mm | 12000mm |
| Power for Drying chamber | 180kw | 180kw |
| Total power | 263kw | 268kw |
| Weight of machine | 20000kg | 22000kg |
| Overall Dimension | L12500*W4750*H4200mm | L16700*W4950*H4200mm |
Characteristics:
- In-touch screen man-machine interface.10.4
- Imported nine vector motor closed loop auto-tension synchronous cntrol system
- Anilox roller with doctor blade for coating ,various of anilox rollers available for different coating amount.
- Turret type unwinding station with EPC and auto splicing system with pre-driver,high speed non-stop shaft exchange.
- Turret type rewinding station with EPC and auto splicing system with pre-driver,High speed non-stop shaft exchange.
- Movable doctor balde with pneumatic back pressure
- Four independent constan temperature section drying system with separated heating station and hot air in feeding ,Temperature is controlled automaticall
- Pneumatic lifting drying chamber and operating platform for web passing ,active synchronous running leading roller inside drying chamber
- Pre-heating before laminating ,water cooling roller for laminated web.
- Inflatable Air shaft for web loading/unloading
- Three rollers nip laminating method,laminating pressure more even to ensure higher peel strength .
The Certificate :

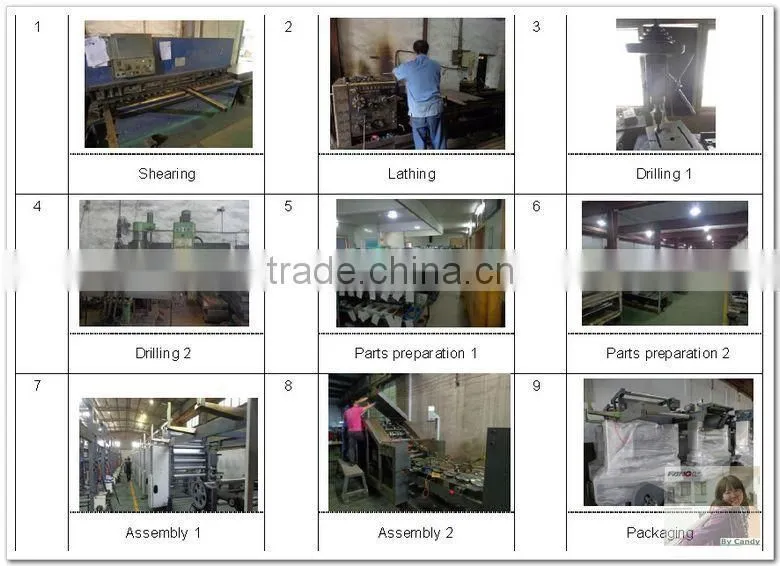

Production Flow:

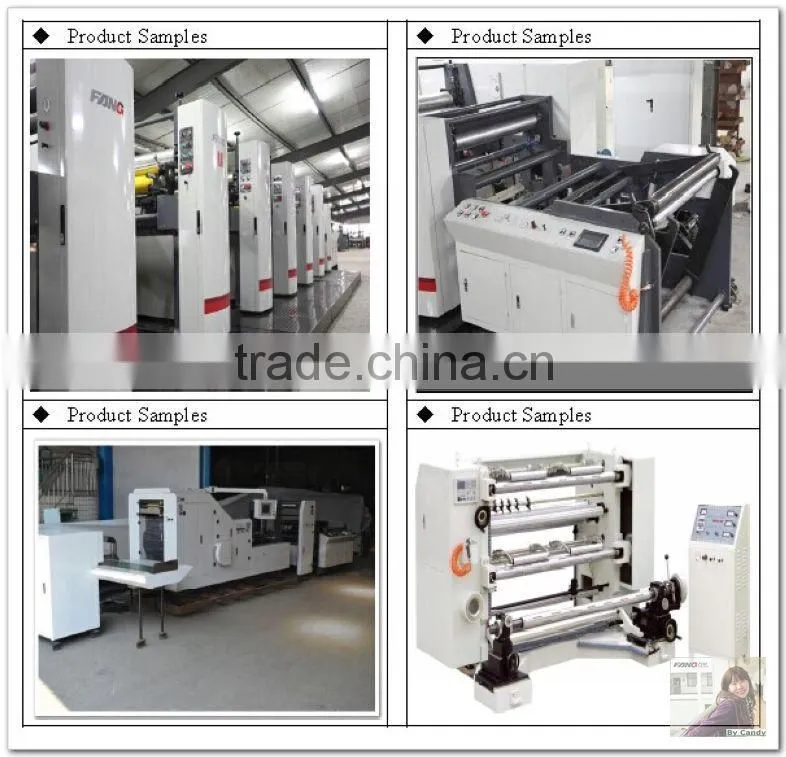

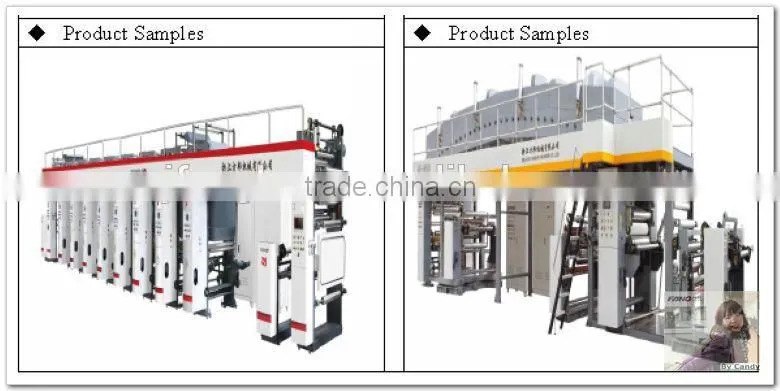

Company and Product Sample:
Q1.Are you a manufactrer ?
Yes.we have been in provding professional printing and packaging industry over 14 years from 1999
Q2.Do you have stock products to sell
No.We work on OEM order ,That means ; size ,material ,quantity ,design packaging etc.depend on your requests
Q3.What information should I let you know if I want to get a quotation ?
- The size of the products
- The material
- The quantity
If It is possible ,Please also provide with sample pictures which you need to make ,If not ,we will recommend you some products for reference
If you are interested in our machine .Pls feel free to contact with me :
Zhejiang Fangbang Machinery Co.,Ltd
Add : Qianbu Industrial Area.Xincheng Street .Ruian City .Zhejiang
M.T:+86-18867730098 +86-13587501104
Direct Line: +86-577-65186883
Skype: zhezhoutiankong Wechat : candy663555 Facebook: candy chi
Website:
