P7100 Oscilloscope probe(100MHz, 1XX) Cro coupling

Specifications

P7100 Oscilloscope probe(100MHz, 1X10X)

Attenuation     1X10X

Input resistance   1MΩ10MΩ

Input capacitance 1×:85pF-135pF

                   10×:15pF-19pF

Compensation scope   15pF-35pF

System bandwidth    1×: DC-6MHz

                     10×: DC-100MHz

Input voltage 1×:<300V DC +Peak AC

              10×: <600V DC +Peak AC

Operating Temperature Range -15°C—+75°C

Operating temperature range is not       -20°C—+60°C

Technology : Integration of injection molding

Color      Black

Weight   55g

Cable length  130cm

Humidity   ≤85%(Relative humidity)

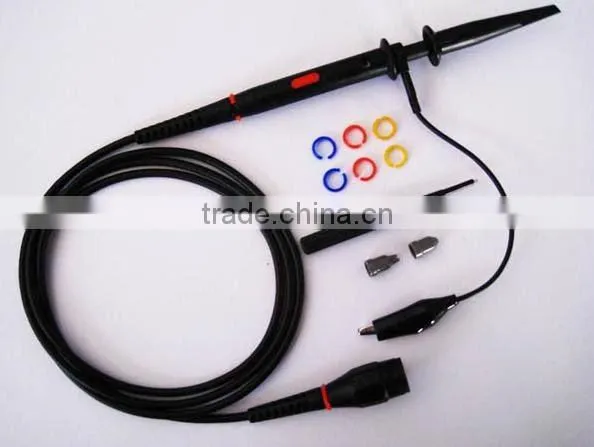

Operation manual

Adjusting tool: adjusts compensation capacitance to assure the rapier match with oscillograph.

Contractive-type acuminate hook

12cm earth wire with alligator clip

3 pairs of colorized cable markers

Locating sleeve adapts to IC testing.
