Suitable Rock Saw Attachment for Skid Steer Loader

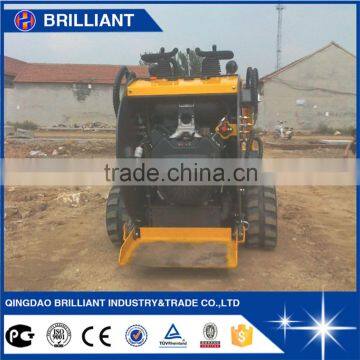

The BI400 is a wheel style mini skid steer loader designed for compact construction work. It has a quick attach mount plate which makes it easy for an operator to connect different attachments.
The loader is designed for operation in temperatures typically experienced in earth moving and
constructionwork environments.
Provisions may be required to operate in extreme temperatures. Use in any other way is considered
contraryto the intended use.
The BI400 should be operated, serviced, and repaired only by persons familiar with its particular
characteristics and acquainted with the relevant safety procedures.
| Main Technical Specifications | ||||||||
| Model | BI400 | |||||||
| Engine Model B&S | Rated Power(KW) | 23HP | ||||||
| Rotating speed(rpm) | 3600 | |||||||
| Max. noise (Db) | 95 | |||||||
| Hydraulic system | System Pressure(Mpa) |
17 | ||||||
Working time(s) |
lift | tipping bucket | landing | |||||
| 4.22 | 1.32 | 3.28 | ||||||
| Performance parameters | metric | |||||||
| Rated Load | 300--400kg | |||||||
| Bucket Capacity | 0.15 m3 | |||||||
| The most heavily lift | 395 kg | |||||||
| Max.Travel Speed | 0-5.5 km./h | |||||||
| Operating Weight | Solid tyres bodywork | 860 kg | ||||||
| Ordinary tire body | 860 kg | |||||||
| Widened tire body | 850 kg | |||||||
| Caterpillar vehicle | 900kg | |||||||
| Tire model | Solid tyres | 16*6-8 | ||||||
| Widened tire | KT-302 18*9.5-8 6p/TL | |||||||
| Herringbone engineering births | 18*6.5-8 | |||||||
| Rim | Solid tyres | 4.33R-8 | ||||||
| Widened tire | 8*6.5 | |||||||
| Fuel tank capacity | 25 L | |||||||
| Oil tank capacity | 27 L | |||||||
| Engine displacement | 627 ml | |||||||
| Bucket breakout force | 550Kg | Tipping load | 325kg | |||||

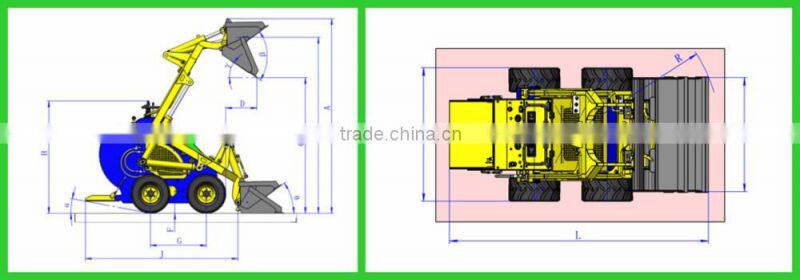

| Main dimensions(Metric unit) | ||||
| Caterpillar vehicles | Solid tyres | Wide platform | Herringbone engineering births | |
| The ing highly | 2184mm | 2115 mm | 2155 mm | 2194mm |
| Max. pin shaft height | 1975mm | 1856 mm | 1896 mm | 1985 mm |
| Biggest unloading height | 1520 mm | 1600 mm | 1500 mm | 1600 mm |
| High unloading distance | 405mm | 388 mm | 348 mm | 350mm |
| Bucket angular | 68° | 55° | 55° | 68° |
| Bucket unloading Angle | 33° | 30° | 30° | 33° |
| Angle of departure | 10° | 8° | 12° | 11° |
| Accept dou Angle | 35° | 25° | 25° | 35° |
| Total height | 1220 mm | 1205 mm | 1245 mm | 1265 mm |
| From ground height | 105 mm | 90 mm | 130 mm | 118 mm |
| wheelbase | 630 mm | 636 mm | 636 mm | 630mm |
| No bucket length | 1722 mm | 1752 mm | 1752 mm | 1752 mm |
| Total wide | 1060 mm | 1033 mm | 1160mm | 1150 mm |
| bucket width | 980 mm | 980 mm | 980 mm | 980 mm |
| Overall length with bucket | 2242 mm | 2206 mm | 2206 mm | 2242 mm |
| Front turning radius | 1292 mm | 1307 mm | 1307 mm | 1292 mm |
Our skid steer loader is multifunctional; we offer many optional attachments which could be used in different fields.

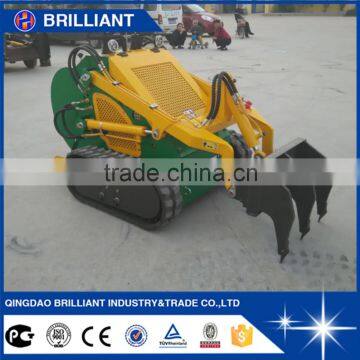

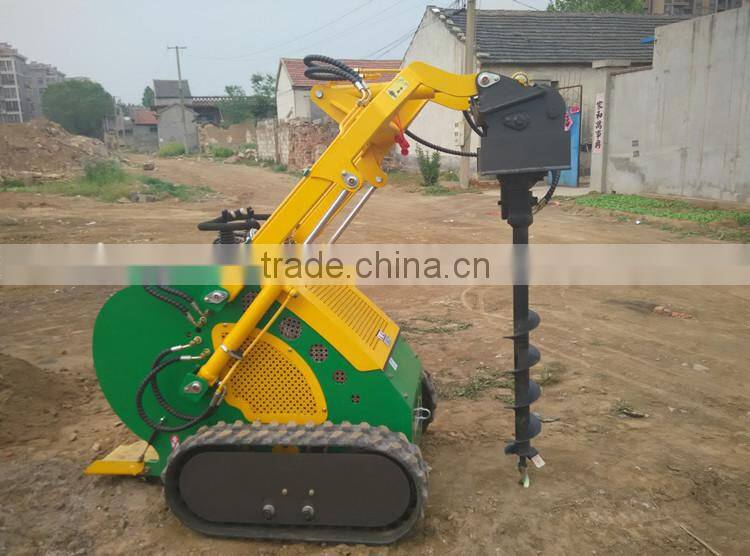

Attachments like 4 in 1 bucket,Auger,Fork shovel,Trencher,Level,Ripper,Digger,Hydraulic breaker,Rotary plow and so on.

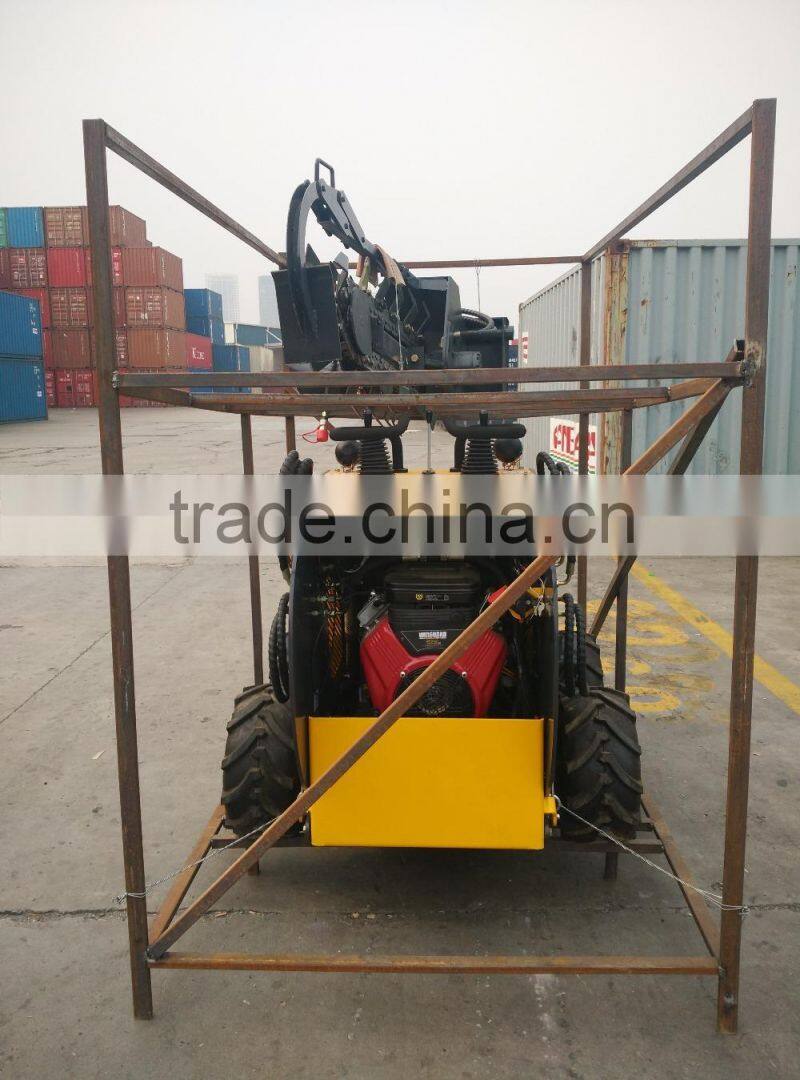

Credibility, friendship, intergrity and perfection are what we are going after. Our packaging is professional and dependable!
Who is BI400's designer?
- The skid steer loader is designed by ourselves.
What is BI400’s Engine?
- The engine brand is B&S (American engine),its power is 23hp.

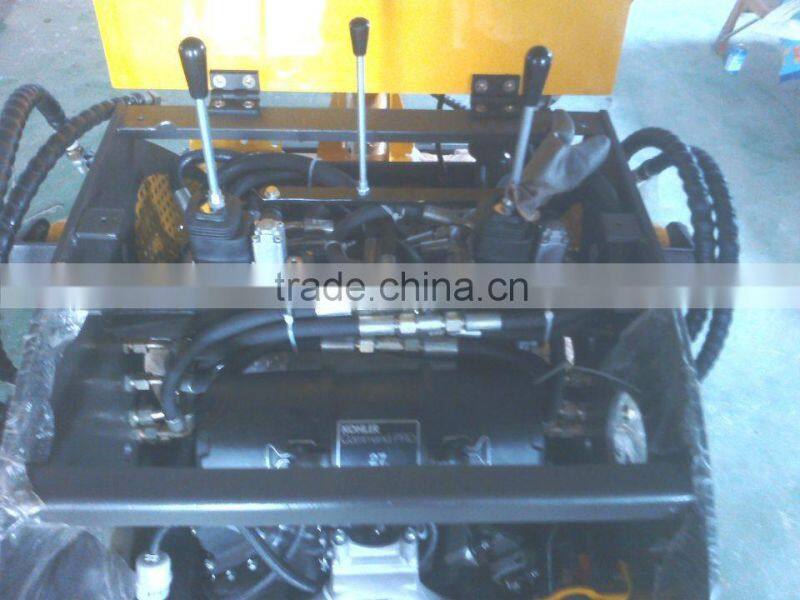

- Kohler engine or Chinese diesel engine is optional.
What’s BI400’s moving type?

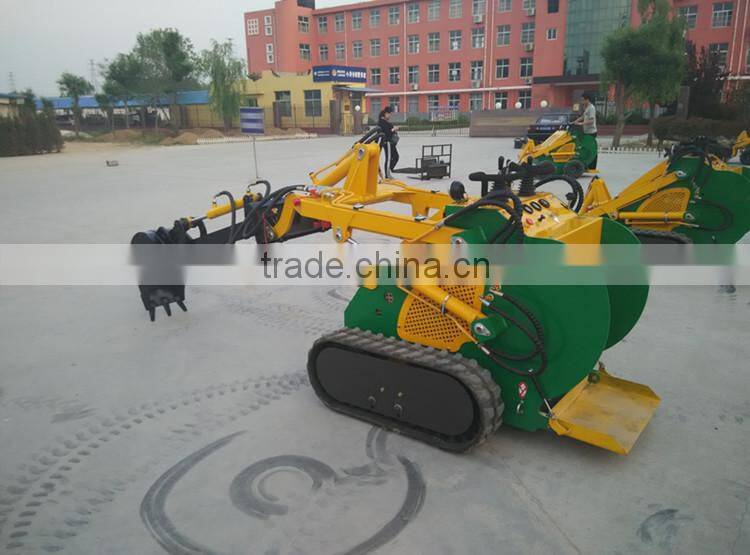

- Wheel loader or crawler loader.
- Wheel can be engineering tire,rubber track,solid tire or turf tire.
- Sandblasting and electrophoresis technology are used to keep MJ400 away from rusting.
- 10mm.
- 1 set.
Qingdao Brilliant Industry & Trade Co., Ltd.
With 20 years experience in the field of engineering industry also under the support by XCMG which is the No. 1 Chinese construction machinery manufacturer, our products has been well recognized by the customers all around the world as the symbol of reliable performance, competitive price, advanced technology and sincere services.
Our Well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfactions, we could also offer OEM services.
| SGS Serial NO. | QIP-ASI145346 |
| Audit Date | 2-Jul-14 |
| Company Name | Qingdao Brilliant Industry & Trade Co., Ltd. |
| Business Type | Manufacturer |
| Year of Establishment | Mar 14,2014 |
| Registered Capital | 83468.27 USD |
| Products | Excavator, Wheel Loader, Bulldozer, Forklift and so on |
| Number of Employees | 5-10 |
| Main Markets | Africa, Asia,Europe,South America |
Sales Personnel: Grace
Tel: 0086-532-80907506
Fax: 0086-532-82801885
Skype: brilliantmachinerygrace
Any comment&question,please contact with us freely!
We will try our best to meet your request!
Thanks for your valuable time!
