BI400 China Skid Loader With Concrete Mixer

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Qingdao/Shenzhen/Shanghai/Tianjin
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Brand Name	Brilliant
Model Number	BI400	Place of Origin	Shandong, China
Type	Skid Steer Loader	Moving Type	Other, wheel loader or crawler loader
Dimension(Long * Breadth * High)	224210601220mm	Rated Load	300--400kg
Certification	CE,ISO	Warranty	1 year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

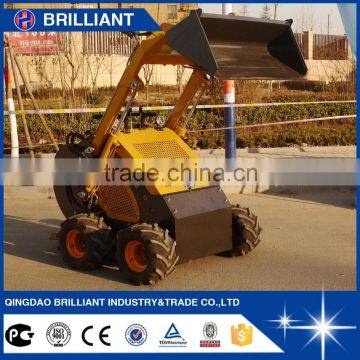

BI400 China Skid Loader with Concrete Mixer

Product Description

The BI400 is a wheel style mini skid steer loader designed for compact construction work.

It has a quick attach mount plate which makes it easy for an operator to connect

different attachments.

The loader is designed for operation in temperatures typically experienced in earth moving

and construction work environments.

Provisions may be required to operate in extreme temperatures. Contact your dealer.

Use in any other way is considered contrary to the intended use.

The BI400 should be operated, serviced, and repaired only by persons familiar with

its particular characteristics and acquainted with the relevant safety procedures.

Main Technical Specifications
Model					BI400
Engine Model B&S		Rated Power(KW)			23HP
		Rotating speed(rpm)			3600
Max. noise (Db)					95
Hydraulic system		System Pressure(Mpa)			17
		Working time(s)			lift		tipping bucket	landing
					4.22		1.32	3.28
Performance parameters							metric
	Rated Load						300--400kg
	Bucket Capacity						0.15 m3
	The most heavily lift						395 kg
	Max.Travel Speed						0-5.5 km./h
	Operating Weight		Solid tyres bodywork				860 kg
			Ordinary tire body				860 kg
			Widened tire body				850 kg
			Caterpillar vehicle				900kg
Tire model			Solid tyres				16*6-8
			Widened tire				KT-302 18*9.5-8 6p/TL
			Herringbone engineering births				18*6.5-8
Rim			Solid tyres				4.33R-8
			Widened tire				8*6.5
Fuel tank capacity			25 L
Oil tank capacity			27 L
Engine displacement			627 ml
Bucket breakout force			550Kg	Tipping load		325kg

Main dimensions(Metric unit)
	Caterpillar vehicles	Solid tyres	Wide platform	Herringbone engineering births
The ing highly	2184mm	2115 mm	2155 mm	2194mm
Max. pin shaft height	1975mm	1856 mm	1896 mm	1985 mm
Biggest unloading height	1520 mm	1600 mm	1500 mm	1600 mm
High unloading distance	405mm	388 mm	348 mm	350mm
Bucket angular	68°	55°	55°	68°
Bucket unloading Angle	33°	30°	30°	33°
Angle of departure	10°	8°	12°	11°
Accept dou Angle	35°	25°	25°	35°
Total height	1220 mm	1205 mm	1245 mm	1265 mm
From ground height	105 mm	90 mm	130 mm	118 mm
wheelbase	630 mm	636 mm	636 mm	630mm
No bucket length	1722 mm	1752 mm	1752 mm	1752 mm
Total wide	1060 mm	1033 mm	1160mm	1150 mm
bucket width	980 mm	980 mm	980 mm	980 mm
Overall length with bucket	2242 mm	2206 mm	2206 mm	2242 mm
Front turning radius	1292 mm	1307 mm	1307 mm	1292 mm

Moving Type

You can choose Caterpillar vehicles,Solid tyre,Wide platform,Herringbone engineering births.

Optional Attachments

There are many optional attachments as follows!

Packaging & Shipping

Our packaging and shipping are professional and dependable!

Warranty

The warranty period of the whole machinary is one year; enough easily damaged parts will be presented to you freely along with the machinery!

ATTENTION

Running the machine 5 minutes in idle after started.
Avoid operate the loader with full speed.
Avoid rapid start, rapid accelerate, unnecessary urgent stop or turning.
Clean the dust and scraping when you change the filter element.
Please check all the potential dangerous if working in a poor environment.
Please check the working time of the hour meter.

Wearing parts

We will provide many kinds of wearing parts for our clients freely!

Company Information

Qingdao Brilliant Industry & Trade Co., Ltd.

Qingdao Brilliant Industry and Trade Co., Ltd is a ISO9001, CE and BV certified professional manufacturer and authorized exporter specialized in construction machinery and industrial vehicle like excavator, forklift, wheel loader, bulldozer and so on...

With 20 years experience in the field of engineering industry also under the support by XCMG which is the No. 1 Chinese construction machinery manufacturer, our products has been well recognized by the customers all around the world as the symbol of reliable performance, competitive price, advanced technology and sincere services.

Our Well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfactions, we could also offer OEM services.

SGS Serial NO.	QIP-ASI145346
Audit Date	2-Jul-14
Company Name	Qingdao Brilliant Industry & Trade Co., Ltd.
Business Type	Manufacturer
Year of Establishment	Mar 14,2014
Registered Capital	83468.27 USD
Products	Excavator, Wheel Loader, Bulldozer, Forklift and so on
Number of Employees	5-10
Main Markets	Africa, Asia,Europe,South America

Contact

Sales Personnel: Grace

Tel: 0086-532-80907506
Fax:0086-532-82801885
Skype:brilliantmachinerygrace

Any comment&question,please contact with us freely!
We will try our best to meet your request!
Thanks for your valuable time!
