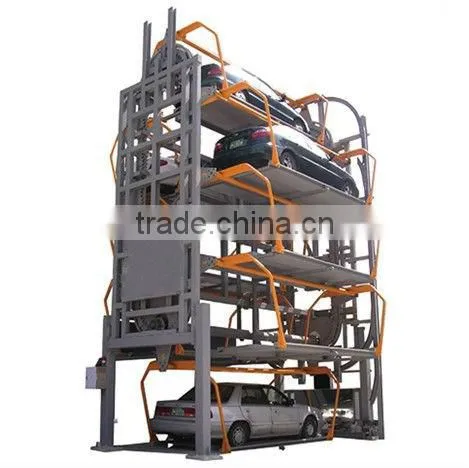

Rotary Vertical Circulating Automatic Parking System
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Other, Rotary parking system
Height (mm):
customized
Width (mm):
customized
Payment & Shipping
Payment Methods:
Port of Shipment:
Shagnhai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Private Garage Car Rotating Platform for TurningNegotiableMOQ: 1 Set -
Carrousel Residential Garage Car TurntableNegotiableMOQ: 1 Set
-
Smart Multilayer Puzzle Parking SystemNegotiableMOQ: 1 Unit
-
Robotic Multilayer Puzzle Parking SystemNegotiableMOQ: 1 Unit
-
Automated Robotic Multilayer Puzzle Parking SystemNegotiableMOQ: 1 Unit
Type
Other, Rotary parking system
Height (mm)
customized
Width (mm)
customized
Place of Origin
Shanghai, China
Brand Name
RP
Model Number
RP7011
Warranty
12 Months
Specifications
Rotary Vertical Circulating Automatic Parking System1. Motor Driven
2. Simple installation
3. Easy operation
Rotary Vertical Circulating Automatic Parking System
Features:
- It is controlled with PLC system, IC card and buttons
- It is mostly installed outdoors but can be installed under canopy as well.
- Driven by motors and chain system.
- Multiple security detection devices are configured in order to ensure the safe and reliable operation.
- Anti-fall device
- Alarm device for preventing people or vehicle from entering when the machinery is running.
- Alarm device for prevention of exceeding height and length of vehicles
- Low-voltage, lack-phase, over-current and overload protection device
- Power-off self-locking protection device
- Emergency stop button device.
Number of vehicles |
8,10,12 |
Load capacity |
≤2000KG |
Vehicle size (mm) |
5000*1850*1550 |
Length |
6200 mm |
Height |
11060 mm |
Width |
5100 mm |
Rotating speed |
6 m/min |
Driving mode |
Chain |
Motor voltage |
380V/50HZ |
