Hot Rod Show Car Turntable for Sale

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Other, Car turning plate for automotive parking system	Height (mm)	customized
Width (mm)	customized	Place of Origin	Shanghai, China
Brand Name	RP	Model Number	RP-7010
Warranty	12 Months

Hot rod show car turntable for sale
1.Applied for parking system or private garage
2.High quality & accuracy

Hot rod show car turntable for sale

Directions for Use:

1. This model is used where the car cannot make a turn and displays in car showrooms

2. The range of rotation: 0-360 degree

3. Automatic control of rotation

4. It can be operated smoothly with low noise

Diameter	4.0 m	4.5 m	5.0 m	5.5 m	6.0
Height without top	305 mm	305 mm	305 mm	305 mm	305 mm
Speed	0.2~1Rpm	0.2~1Rpm	0.2~1Rpm	0.2~1Rpm	0.2~1Rpm
Loading	2,500 kg	3,000 kg	3,000 kg	3,500 kg	4,000 kg
Motor power	0.55KW German Nord Motor and Gearbox with CE Certificate
Drive Position	Patented Pin-Gear Drive Position
Control Box	On/Off buttons, CW/CCW selector, STOP button, Various speed control
Remote control system	Sweden Tele-Radio Remote control system
Steel Coating	Rust resistant paint and primer / Hot-dipped galvanized
Top surface	18mm thick MDF board / 19mm thick Plywood / 4mm thick diamond steel plate / 6mm thick diamond aluminum alloy

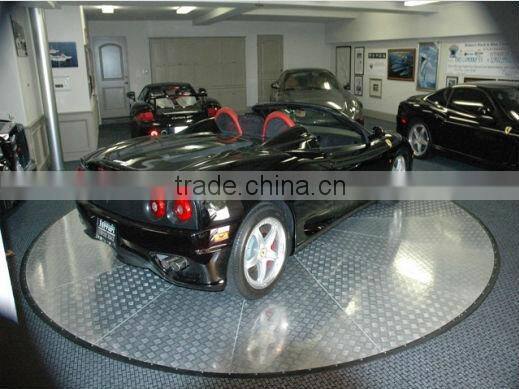

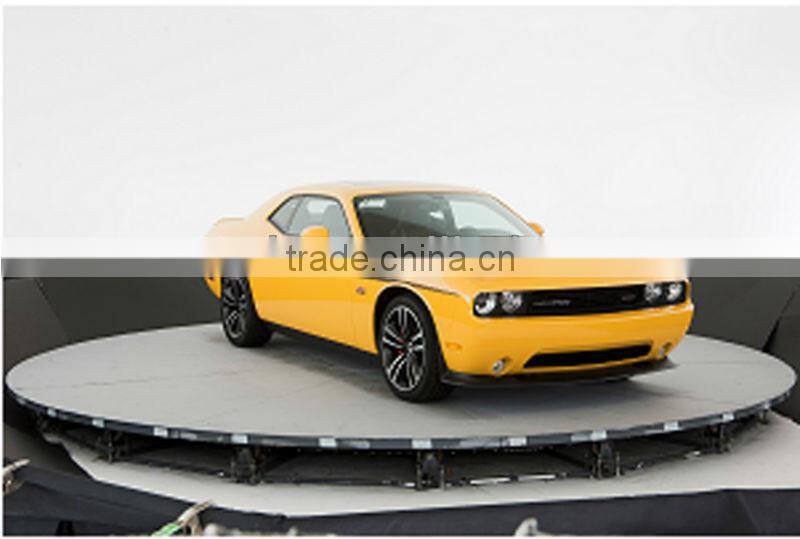

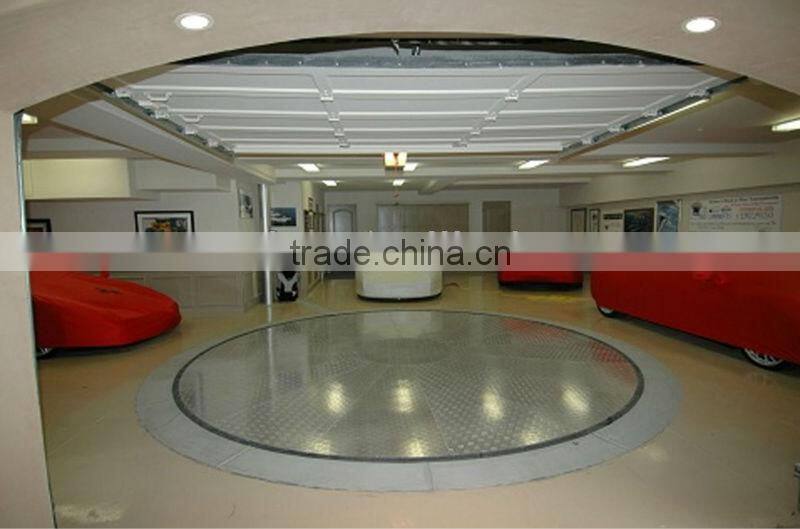

Indoor model:

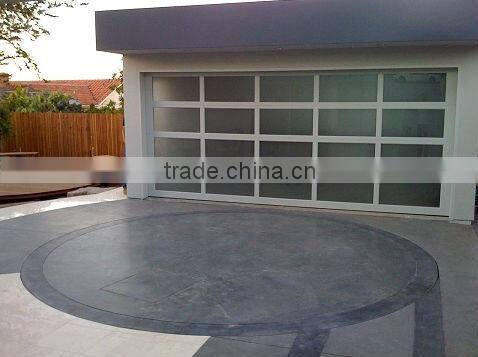

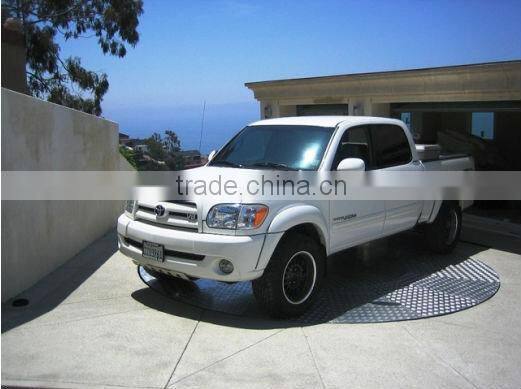

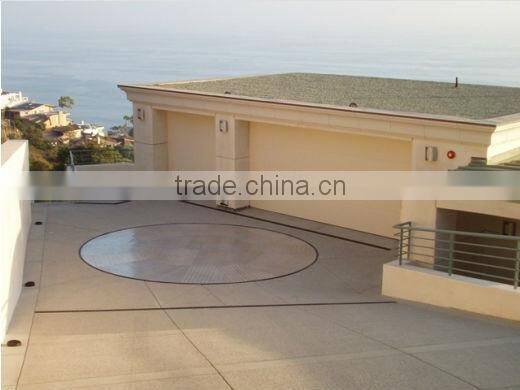

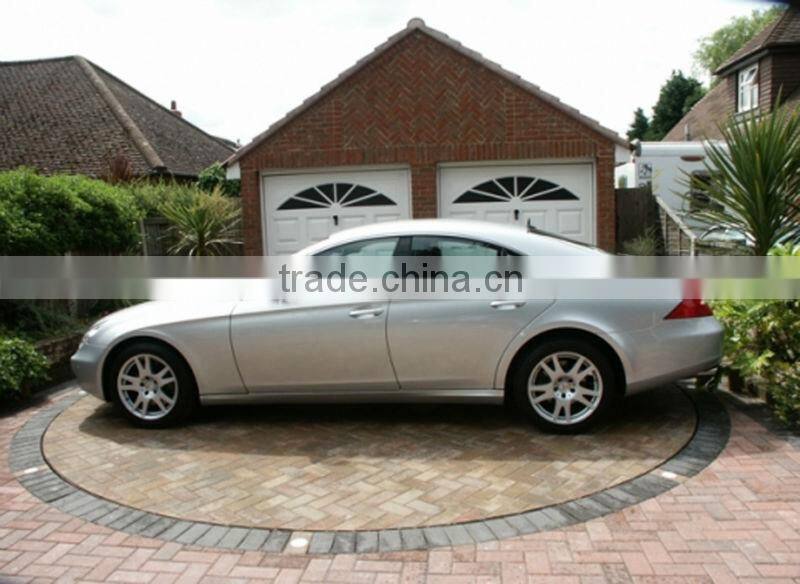

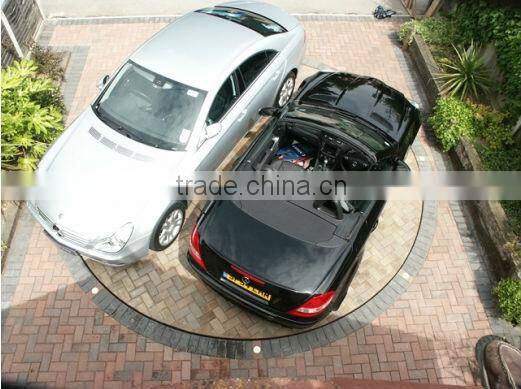

Outdoor model:

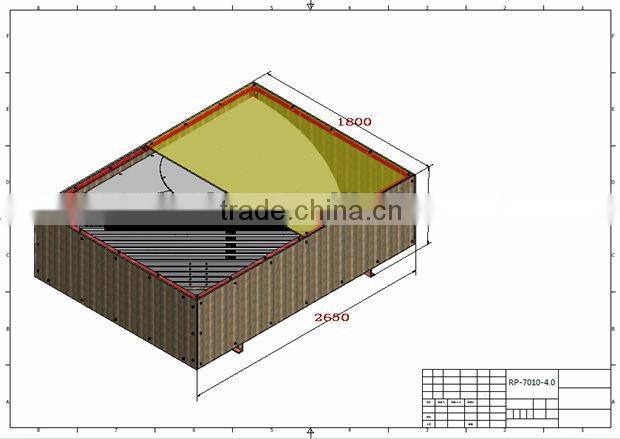

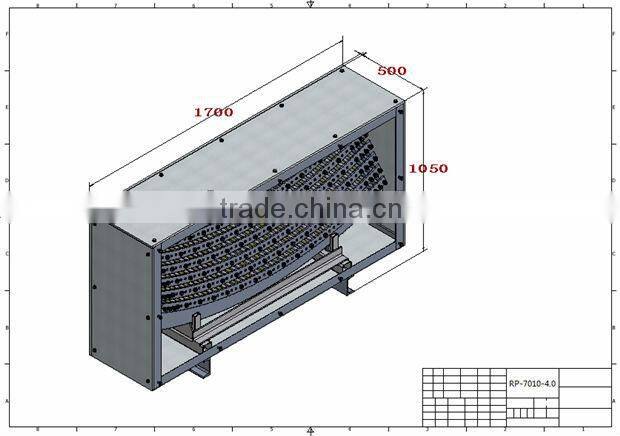

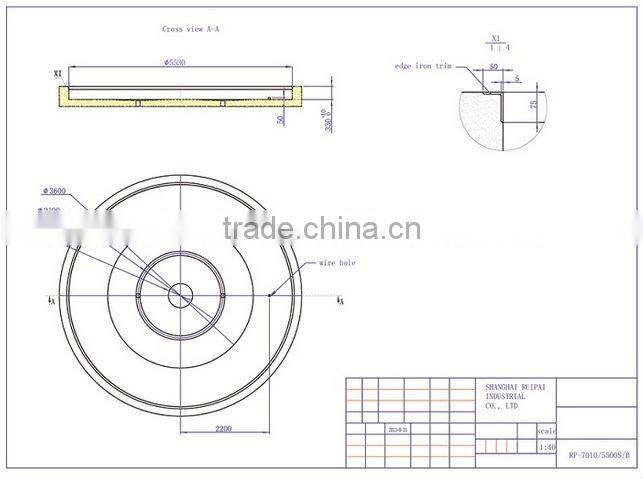

The drawing:

Our products:
