High Level Shopping Plaza Parking System

Specifications

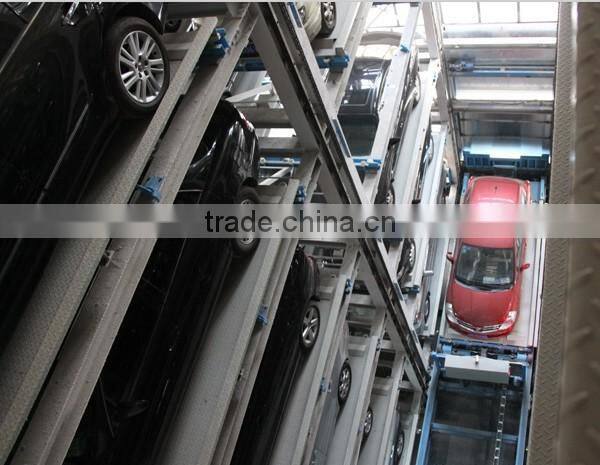

High level shopping plaza parking system

Features:

1. It is controlled with PLC, accompanied with touch screen. Process of parking has never been easier.
2. This kind of parking suits residential areas, it is good looking as much as apartment or office buildings
3. Driven with a number of motors and a system of steel cables.
4. Multiple security detection devices are configured in order to ensure the safe and reliable operation.
5. Anti-fall device
6. Alarm device for preventing people or vehicle from entering when the machinery is running.
7. Alarm device for prevention of exceeding height and length of vehicles
8. Low-voltage, lack-phase, over-current and overload protection device
9. Power-off self-locking protection device
10. Emergency stop button device.

    Specification
    Control mode	PLC ,automated
    Load capacity	≤2500KG
    Vehicle size (mm)	5300×1900×2050
    Lifting speed	90 m/min
    Motor power	30 kW
    Shuttle speed	60 m/min
    Shuttle power	2× 2.2 kW
    Robotic trolley speed	60m/min
    Robotic trolley power	2×0.75 kW
    Driving mode	Chain
    Motor voltage	380V/50HZ

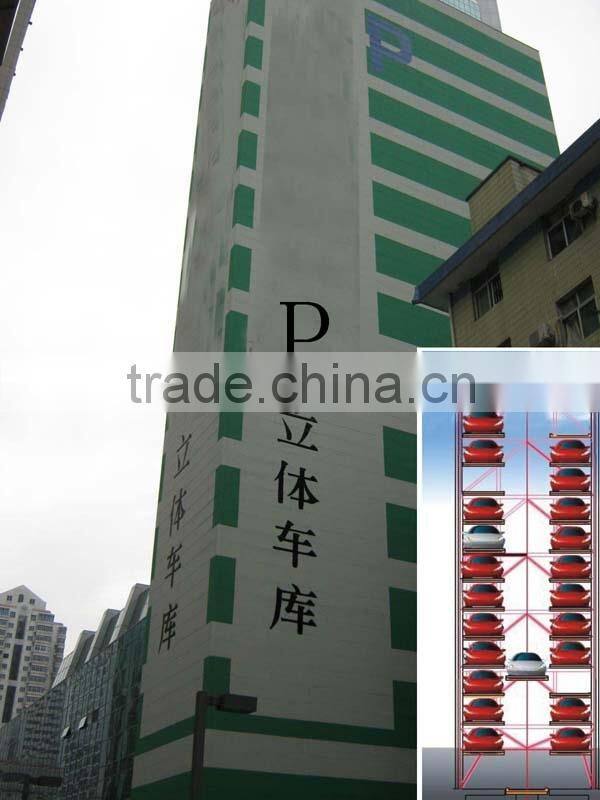

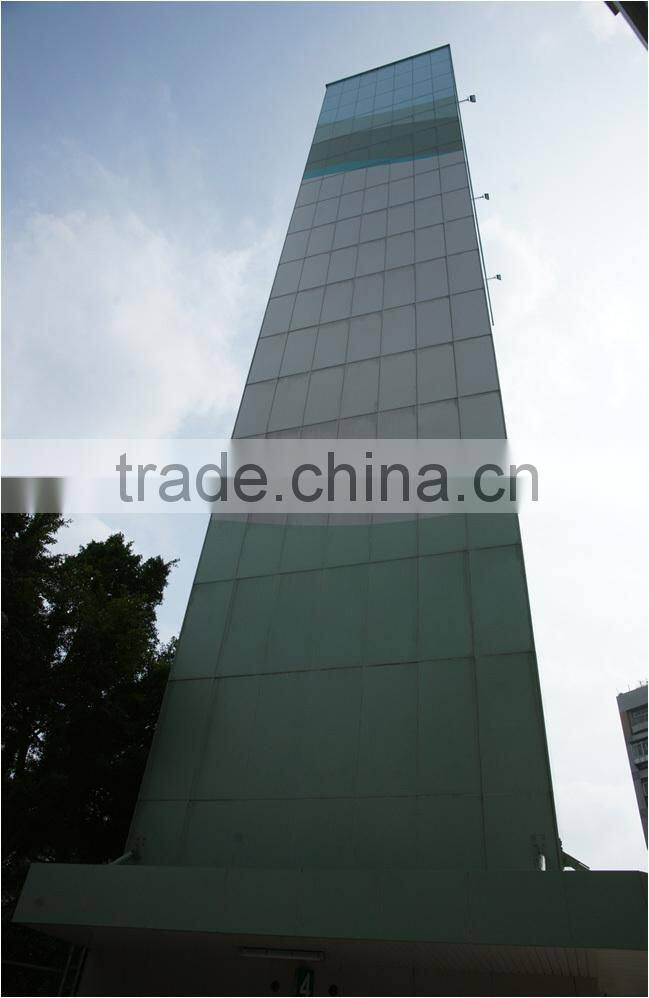

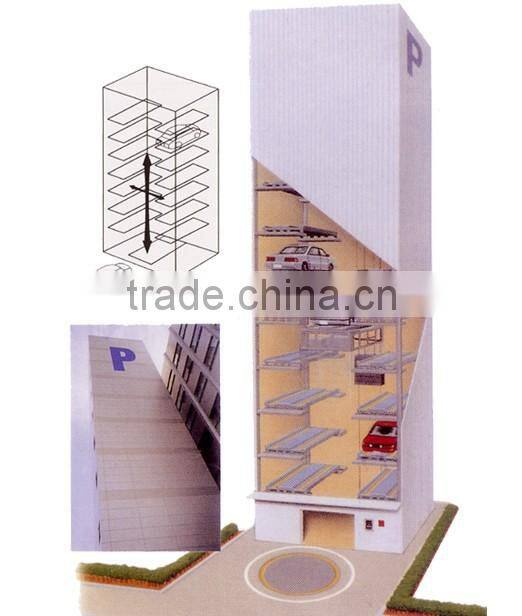

This model can be designed in 20 floors. It is suitable for being used in all kind of parking lot of enterprises, public institutions, office buildings, hotels, property management of residences, etc.

Space saving:

Our factory:
