Home > Products > Parking System > Underground Multilevel Parking Garage Design
Underground Multilevel Parking Garage Design
Negotiable
/ Set
1 Set(Min. Order)
- Shanghai China mainland
- T/T
You May Like
Product Details
| Type | Parking Lift | Height (mm) | 2400mm | |
| Width (mm) | 2120mm | Place of Origin | Shanghai, China | |
| Brand Name | RP | Model Number | RP-7001 |
Product Description
Specifications
Underground Multilevel Parking Garage Design1.High quality
2.Easy to operate
3.Space-saving
4.CE approved
Underground Multilevel Parking Garage Design
Features:
- Storage lift for household or enterprise use to save half space.
- Low ceiling design with advanced Hydraulic direct drive double stage cylinders for better lifting performance.
- Column can be shared between two machines. With our special design can save precious space to suit design of building.
- Modularized platform to save shipping, handling and installation cost.
- Optional 24V electrical locking release for customer safety.
- Multiple locking positions give protection during both rise up and lower down.
- Parachute valve in every cylinder provide extra hydraulic safety.
Technical specifications | |
Temperature | -15-+40 degree |
Load capacity | 3.2t |
Lifting height | 2140mm |
Runway width | 2120mm |
Width between posts | 2400mm |
Lifting time | 55-60sec |
Power supply | 380V ,220V/50HZ |
Weight | 1400kg |
Lead time | 30 days |
Packaging | Metal frame/plastic |
Drive | Electro-hydraulic |

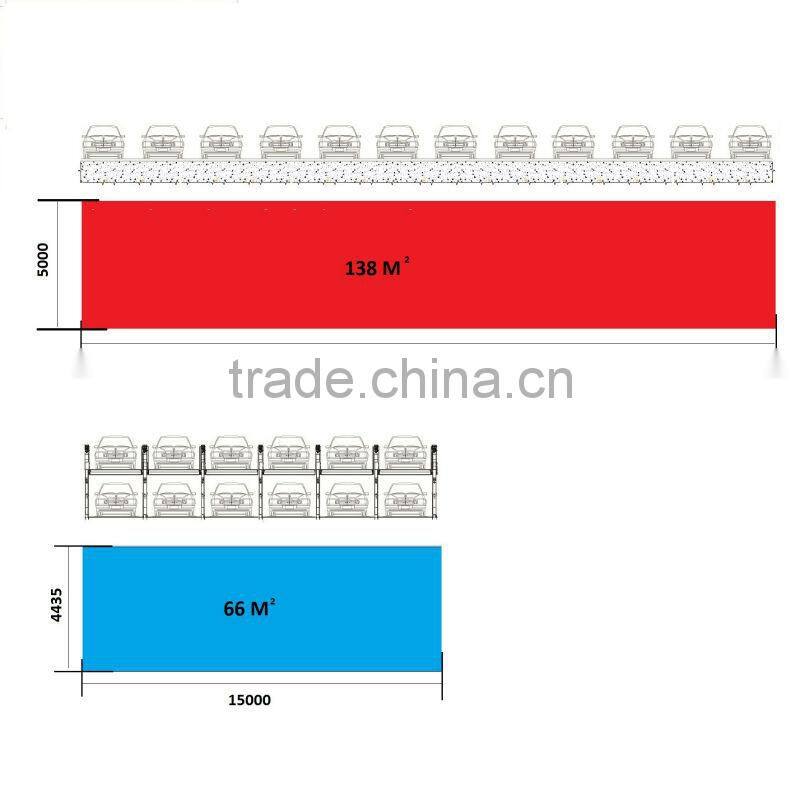

Space saving:
Contact Us
- Shanghai Ruipai Industrial Co., Limited
- Contact nameVictor Zhou Chat Now
- Phone86-21-64959776
- AddressRoom B704, Keji Mansion, No. 705, Yishan Rd.
