  Shanghai best steel structure car parking building

   Features:

1. This model can be designed in three floors and components are steel structures. It is suitable for being used in underneath parking lots and for being built outdoors with a canopy, the appearance of which can be decorated to add to its’ beauty.
2. The steel plate of the top layer lifts, which can fall to the ground floor when there's access to cars; the middle steel plate lifts and moves transversely; the ground steel plate only transverses. There must be an empty space in every lower layers, in order to down the upper steel plate.
3. The steel plates of upper layers are suspended by four wire ropes which make the steel plate fall to the ground floor when there's access to cars.
4. Driven by wire rope, provides safety
5. Multiple security detection devices are configured in order to ensure the safe and reliable operation.
6. Anti-fall device
7. Alarm device for preventing people or vehicle from mistakenly entering
8. Alarm device for prevention of exceeding height and length of vehicles
9. Low-voltage, lack-phase, over-current and overload protection device
10. Power-off self-locking protection device
11. Emergency stop button device

    capacity	≤1700KG
    Vehicle size (mm)	5000*1850*1550
    Length	6200 mm
    Height	9000 mm
    Maximum access	115 sec

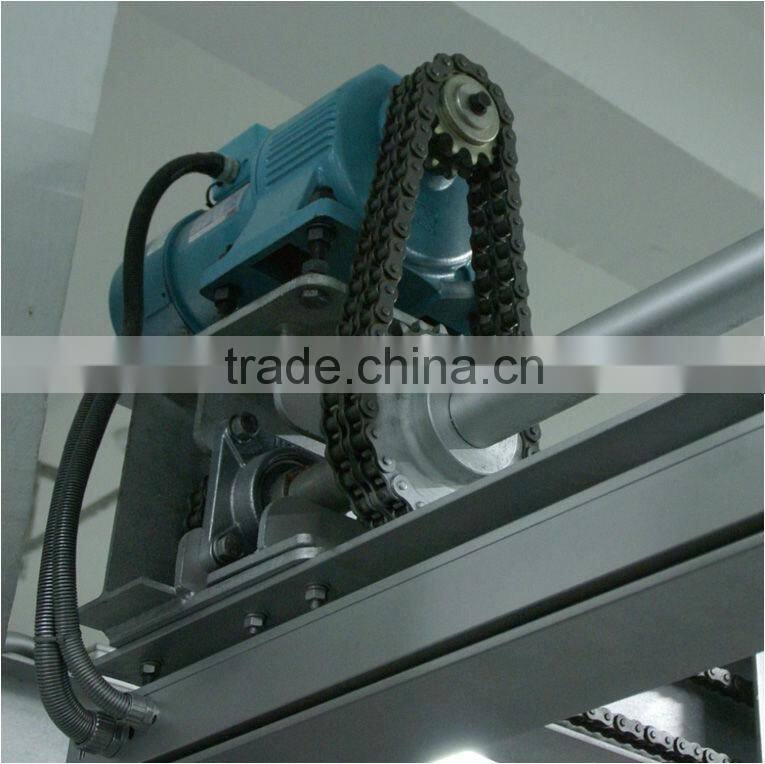

    Driving mode	Chain
    Motor voltage	380V/50HZ

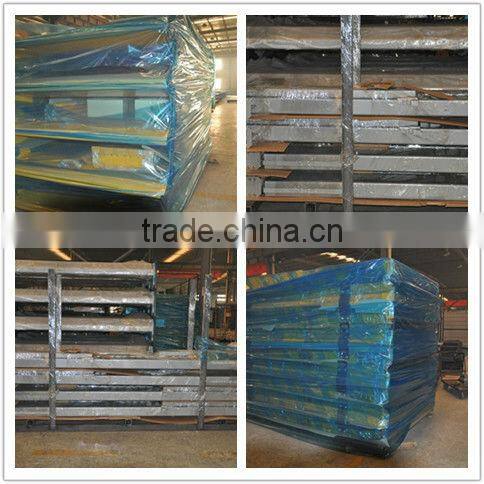

    Our factory:  Packaging details:
