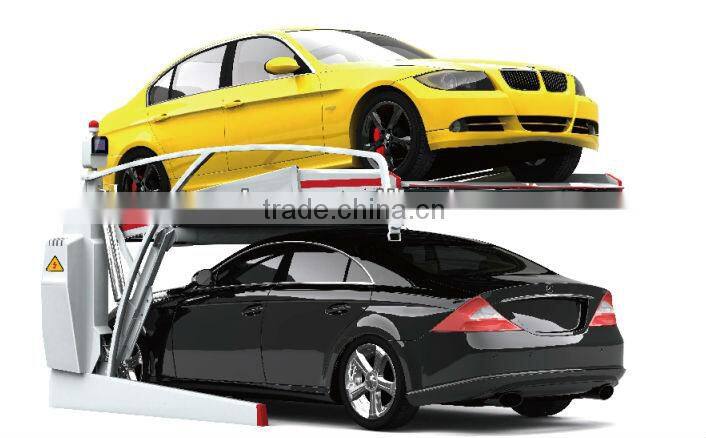

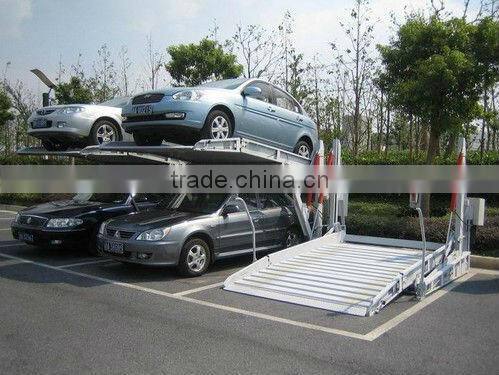

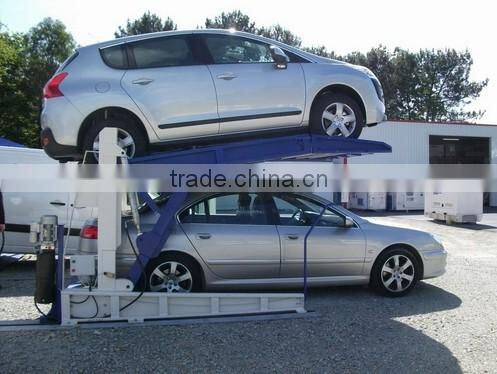

Hydraulic low ceiling tilting car stacking lift

Features:

This model is especially suitable for being used in places with lower net height.
This upper steel plate of this model is inclined, which can make full use of space.
Driven by hydraulic pressure, it can operate smoothly with low noise.
Anti-fall Device
It is easy to set up, without the help of civil work.
Note: 1.N is the number of successive posts.
W p can be decided by customers' needs, not confined to the above-mentioned three specifications.

Technical datas:

Vehicle suitable for parking	Model	D Large size car1	D Large size car1
	Vehicle size	LengthWidthHeight	LengthWidthHeight
	mm	5000X1950X1550	5000X1950X1550
	Vehicle weight	2000kg	2000kg
Required Space	W p (mm)	2450,2500,2600	2450,2500,2600
	La (mm)	5800	6000
	Overall width (mm)	Wp*N+200	Wp*N+200
	Net height (mm)	over 3100	over 2900
Driving device	Driving mode	Oil Pressure	Oil Pressure
Driving device	Motor power (kW)	1,5	1,5
Lifting time		245	245
Operation mode		button	button
Capacity		2*N	2*N
Motive power		Three-Phase Five-Wire	Three-Phase Five-Wire

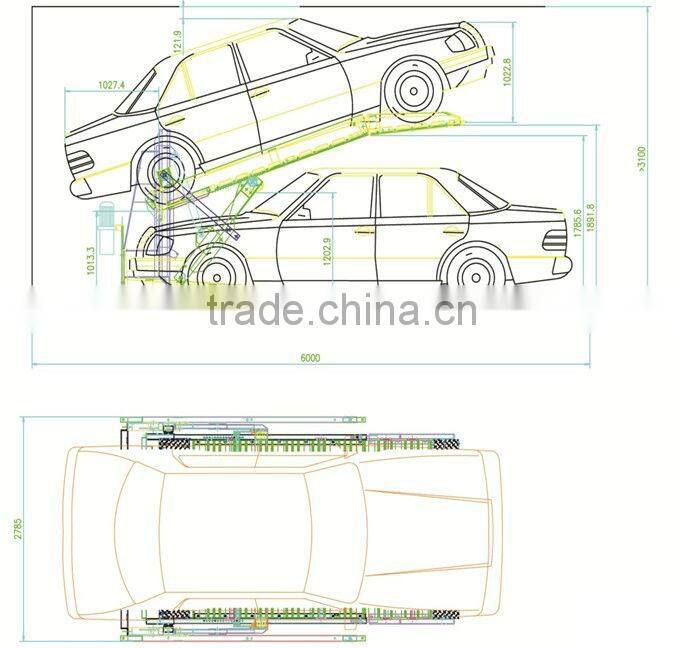

The drawing:

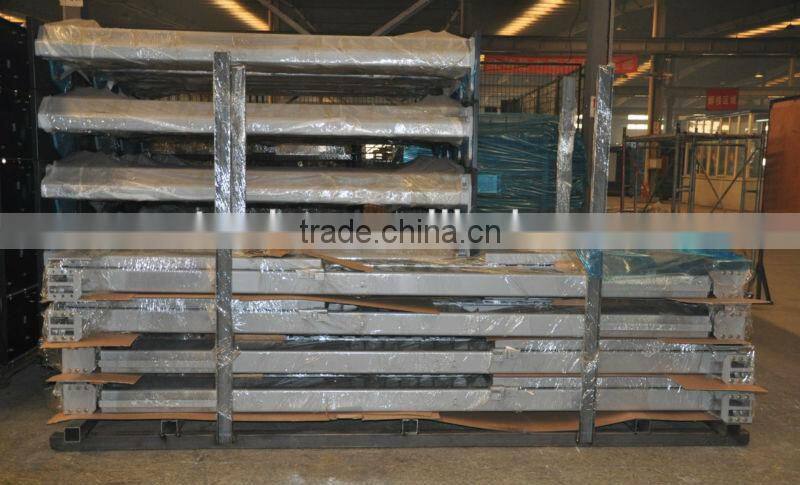

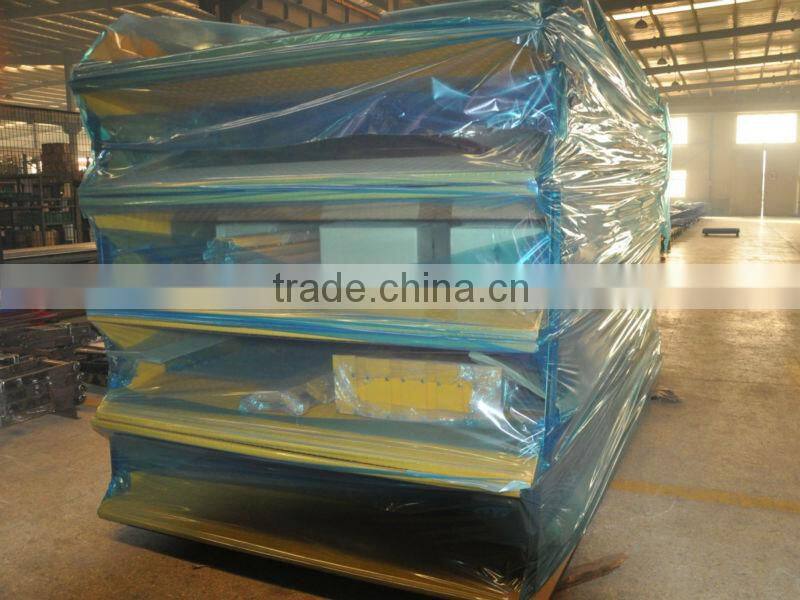

Packaging & Shipping

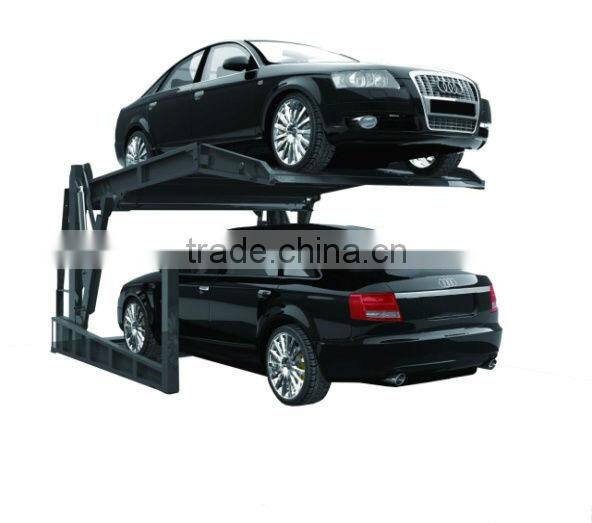

Our other products you may interested in:
