Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Excavator > Earth Moving Type 4 Ton Bobcat Mini Excavator Parts
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Yuchai
Model Number:
YC35-8
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
YC15-8 Model 1.5 Ton Mini Excavator For Sale Quality ChoiceNegotiableMOQ: 1 Set -
Chinese New 2 Ton Mini Track Excavator for SaleNegotiableMOQ: 1 Set
-
Chinese New 17ton/18 Ton Crawler Excavator YC18-8US$ 15,000 - 30,000MOQ: 1 Set
-
Chinese New 25 Ton/28 Ton/30 Ton Crawler Excavator YC25-8US$ 15,000 - 30,000MOQ: 1 Set
-
Chinese Cheap Mini 8 Ton Excavator For Sale Price (XE80)US$ 50,000 - 80,000MOQ: 1 Set
Place of Origin
Shandong, China
Brand Name
Yuchai
Model Number
YC35-8
Condition
New
Moving Type
Crawler Excavator
Operating Weight
3740kg
Bucket capacity
0.12m3
Maximum Digging Height
5200mm
Maximum Digging Depth
3535mm
Machine Weight
3740kg
Max Digging Radius
5590mm
Rated Speed
3.4-4.8km/h
Certification
CE, ISO9001: 2000
After-sales Service Provided
Engineers available to service machinery overseas

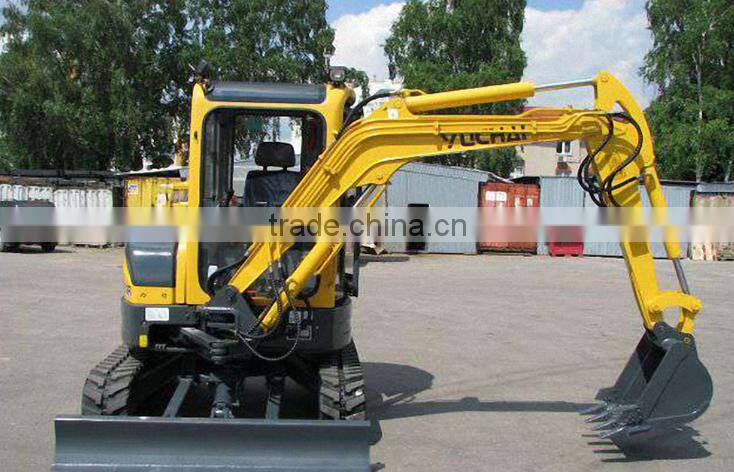

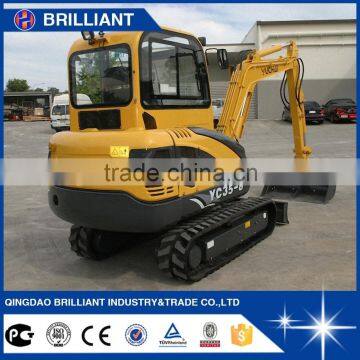

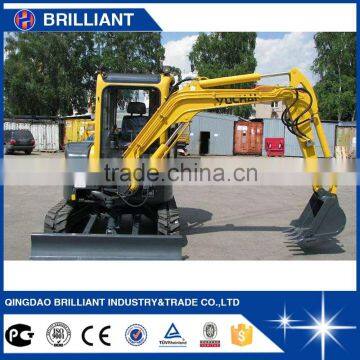

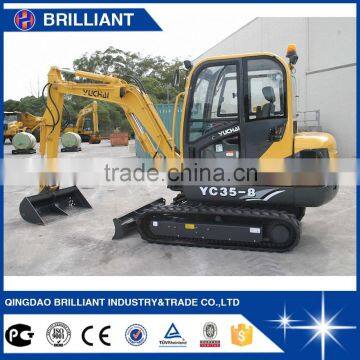

Earth Moving Type 4 Ton Bobcat Mini Excavator Parts
Product Description
1. Machine Weight : 3740kg
2. Rated Power: 31.2kw/2200rpm
3. Bucket Capacity: 0.12m3
4. Standard Bucket width: 630mm
5. Famous imported engine is optional (Yanmar, Kubota, Perkins and so on)
2. Rated Power: 31.2kw/2200rpm
3. Bucket Capacity: 0.12m3
4. Standard Bucket width: 630mm
5. Famous imported engine is optional (Yanmar, Kubota, Perkins and so on)

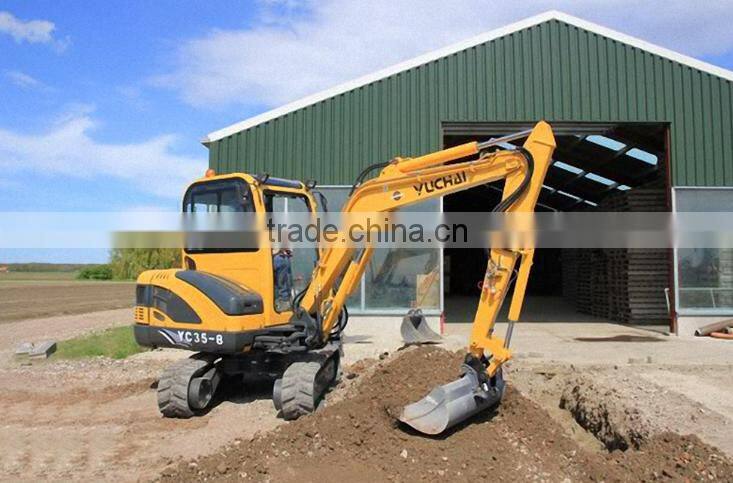

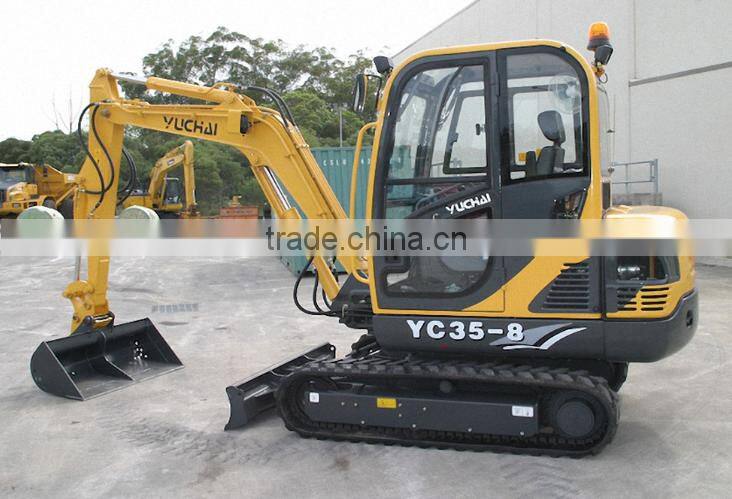

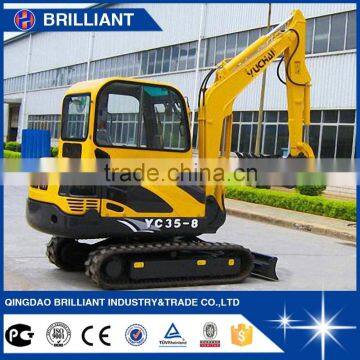

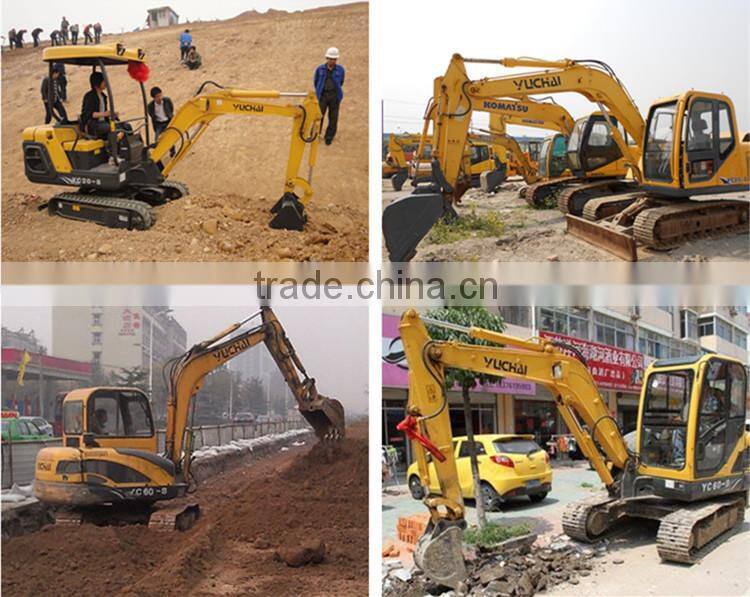

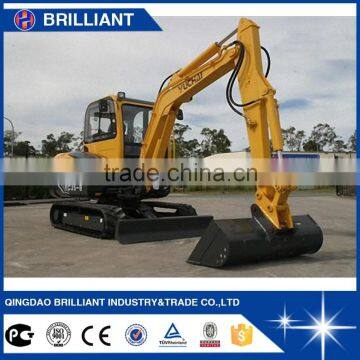

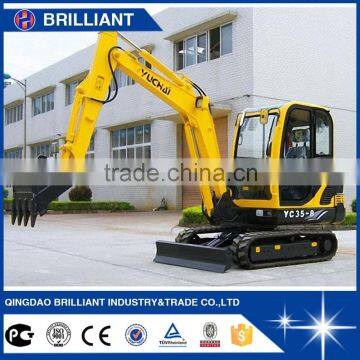

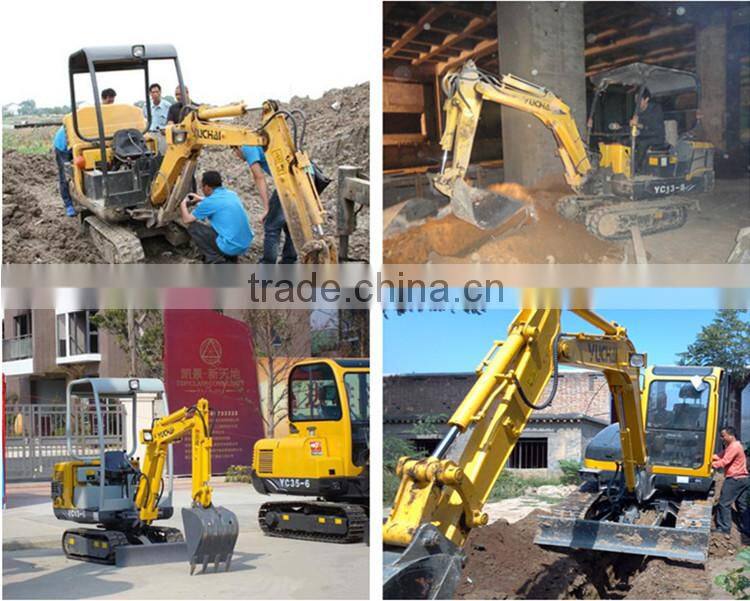

YC35-8 hydraulic excavator has beautiful design, its platform can rotate 360 degrees. The excavator is equipped with rubber track, it's reliable and of user-friendly. With multiple functions of digging, grabbing, drilling, bull-dozing, ditch-cleaning and rock-breaking, this excavator can be widely used in various construction projects such as water supply, power supply, gas supply, telecommunication network, farmland and garden works etc.
Main Parameters
| Performance paraneters | |||
| Engine model | Kubota V2403 | ||
| Engine power | kw/rpm | 31.2/2200 | |
| Machine Weight | kg | 3740 | |
| Standard bucket capacity | m3 | 0.12 | |
| Outer width of bucket | mm | 630 | |
| Operation hydraulic pressure | mpa | 21 | |
| Max. digging force | kn | 22.19 | |
| Gradeability | % | 58 | |
| Pressure to the ground | kpa | 21 | |
| Working speed | km/h | 3.4/4.8 | |
| Max. hauling force | kn | 29 | |
| Swing speed of platform | rpm | 11~13 | |
| Dimension | |||
| Max. length of transportation | mm | 5250 | |
| Machine height | mm | 2470 | |
| Overall width | mm | 1518 | |
| Width of track | mm | 300 | |
| Platform tail turning radius | mm | 1343.5 | |
| Length of track | mm | 1943.5 | |
| Height between undercarriage and groud | mm | 302 | |
| Width of platform | mm | 1450 | |
| Length between platform and groud | mm | 538 | |
| Range of operation | |||
| Max.digging height | mm | 5200 | |
| Max.digging depth | mm | 3535 | |
| Max.platform tail turning radius | mm | 1992 | |
| Max.digging radius | mm | 5590 | |
| Max.dumping height | mm | 3680 | |
| Max.digging reach of ground level | mm | 5486 | |
Warranty
1 year or 1200 working hours, whichever come first.
During the warranty period, in the event of the defect of material or workmanship has occurred with spare parts in common operation, the defective part will be repaired or replaced free of charge, at our discretion.

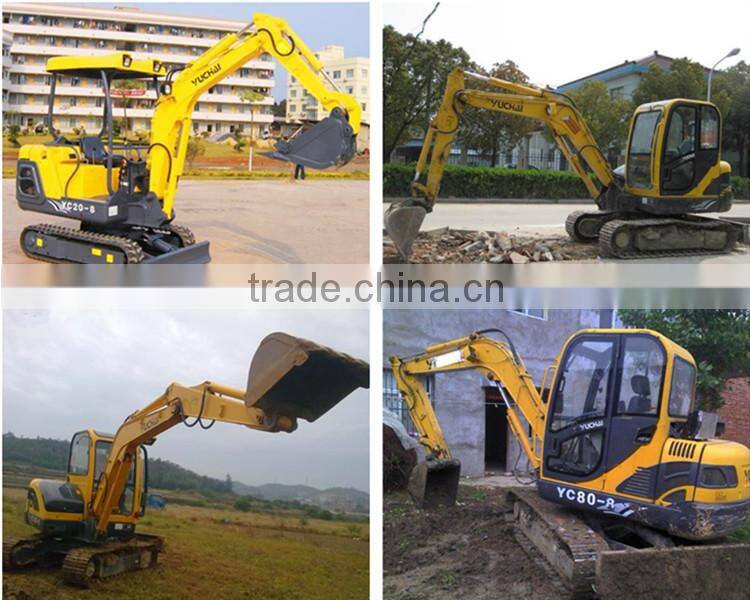

Related Products
Our excavators cover over 60 multifunctional hydraulic excavator, most of excavator is CE certified.
IF YOU ARE INTERESTED IN THESE EXCAVATORS ,PLEASE CLICK THEM:
YC08-8
YC15-8
YC18-8
YC18SR
YC25-8
YC25SR
YC35-8
YC35SR
YC55-8
YC55SR
Our Advantage
- High quality and inexpensive price
- Genuine product
- Prompt and timely delivery
- Dependable after-sales service
- Professional package
- Excellect engineer team
FAQ
What is YC35-8's MOQ?
- 1 set.
What is YC35-8's color?
- It is optional, any color and any pattern!
Why the price is difference for the same model?
- It depends on the engine, tyre, discharge height etc, we can make it according to your request.
Company Information
Qingdao Brilliant Industry & Trade Co., Ltd.
Qingdao Brilliant Industry and Trade Co., Ltd is a ISO9001, CE and BV certified professional manufacturer and authorized exporter specialized in construction machinery and industrial vehicle like excavator, forklift, wheel loader, bulldozer and so on...
With 20 years experience in the field of engineering industry also under the support by XCMG which is the No. 1 Chinese construction machinery manufacturer, our products has been well recognized by the customers all around the world as the symbol of reliable performance, competitive price, advanced technology and sincere services.
Our Well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfactions, we could also offer OEM services.
With 20 years experience in the field of engineering industry also under the support by XCMG which is the No. 1 Chinese construction machinery manufacturer, our products has been well recognized by the customers all around the world as the symbol of reliable performance, competitive price, advanced technology and sincere services.
Our Well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfactions, we could also offer OEM services.

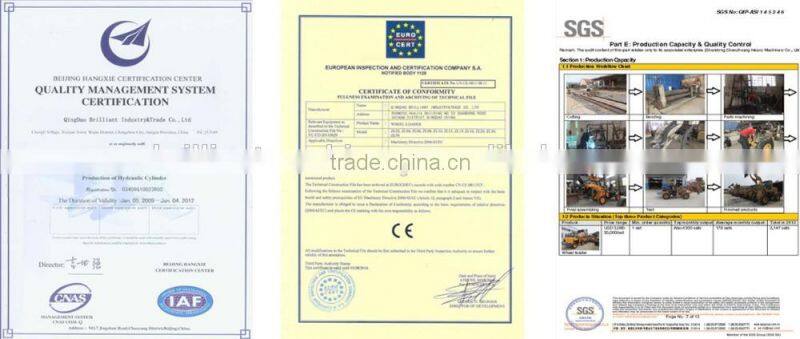

| SGS Serial NO. | QIP-ASI145346 |
| Audit Date | 2-Jul-14 |
| Company Name | Qingdao Brilliant Industry & Trade Co., Ltd. |
| Business Type | Manufacturer |
| Year of Establishment | Mar 14,2014 |
| Registered Capital | 83468.27 USD |
| Products | Excavator, Wheel Loader, Bulldozer, Forklift and so on |
| Number of Employees | 5-10 |
| Main Markets | Africa, Asia,Europe,South America |
Contact
Sales Personnel: Grace
Tel: 0086-532-80907506
Fax: 0086-532-82801885
Skype: brilliantmachinerygrace
Email: grace @
Any comment&question,please contact with us freely.We will try our best to meet your request.Thanks for your valuable time!
