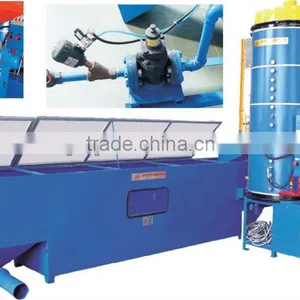

Continuous Pre-expander

Continuous Pre-expander photo-1
US$ 5,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Foaming Machine
Plastic Type:
EPS
Product Type:
Sheet
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Type Foaming Machine
Plastic Type EPS
Product Type Sheet
Automatic Yes
Place of Origin Jiangsu, China
Brand Name XFY
Model Number 70

Specifications

1.All process:filling,expanding,sieving,de-lumping and conveying works automatically.
2.With first and secondary expansion

Main features:

1.All process include filling,expanding,sieving,de-lumping and conveying works automatically;

2.With primary and secondary expansion device to get density of 8-30g/L;

3.First filling was controlled by frequency converter;

4.Dryer bed was made of stainless steel;

5.Power-off protection device;

6.Japan steam pressure reducing valve.



Item



SPY70

SPY90

SPY120

Expansion Chamber

Diameter

Volume

Effective Volume

Φ700mm

0.6M3

0.4M3

Φ 900mm

1.2 M3

0.8 M3

Φ 1200mm

2.2 M3

1.5 M3

Steam

Entry

Consumption

Pressure

DN20

80-100KG/H

0.6-0.8Mpa

DN25

100-150KG/H

0.6-0.8Mpa

DN40

150-200KG/H

0.6-0.8Mpa

Compressed Air

Entry

Pressure

DN15

0.6-0.8Mpa

DN20

0.6-0.8Mpa

DN20

0.6-0.8Mpa

Drainage

Condensate

Φ 20mm

Φ 20mm

Φ 20mm

Capacity

15g/L

20g/L

25g/L

30g/L

100KG/H

120KG/H

150KG/H

200KG/H

150KG/H

200KG/H

250KG/H

300KG/H

250KG/H

300KG/H

410KG/H

500KG/H

Material Convey Line



Φ 150mm

Φ 150mm

Φ 150mm

Power



8.93Kw

9.73Kw

14.83Kw

Density

First Expansion

Secondary Expansion

12-30g/L

8-11g/L

12-30g/L

8-11g/L

14-30g/L

8-13g/L

Overall Dimension

(L*W*H)

4700*2660*2600

4700*2930*3200

4905*4665*3250

Weight



1300KG

1500KG

1800KG

Height of Workshop



3000mm

3000mm

3000mm
