5kA Signal Surge Protectors (SPD)

FOB Price

US$ 1 - 10 / Piece

100 Pieces(Min. Order)

Port Ningbo or Shanghai Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	REYUN
Model Number	LYX-K12

Product Description

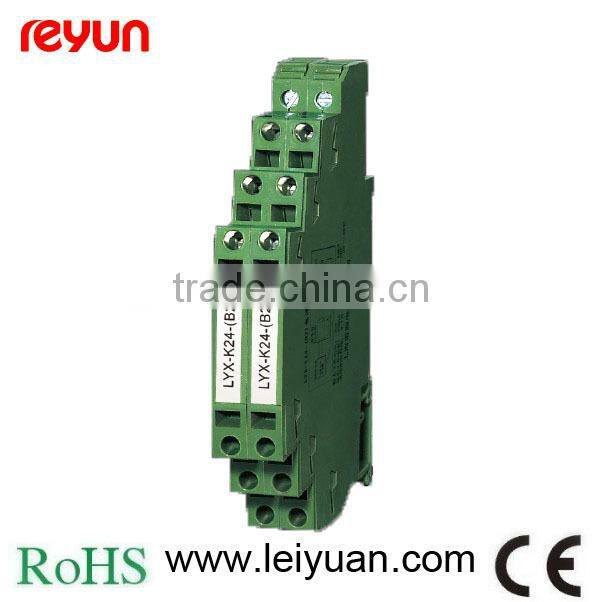

5kA Signal surge protectors (SPD)

LYX-K Series products are mainly used to prevent the lightning and switching over-voltage in the industrial control equipment from the damage and ensure signal transmission safely. Spring plate compressed to connect with cable, convenient and fast, the shell thickness 7.6mm, it can be earthed directly from rail, reduce the wire layout. Two wire or three wire system is available for being protected. The product mounted on standard 35mm rail, spring plate compressed connection. Working freq. width: 10Mhz, high carrying capacity: Imax(8/20μs)10kA.

Technical parameter

Product model	LYX-K5	LYX-K12	LYZ-K24
Working voltage Un	5V, DC	12V, DC	24V, DC
Maxi. Continuous operating voltage Uc	6V, DC	15V, DC	32V, DC
Maxi .working current	250mA	250mA	250mA
Through-circuit resistance(Each line)	4.7Ω	4.7Ω	4.7Ω
Maxi. discharge current 8/20μs	10kA (Line to earth)	10kA (Line to earth)	10kA (Line to earth)
Rated discharge current(8kV/20μs)	5kA(Line to line, line to earth)	5kA(Line to line, line to earth)	5kA(Line to line, line to earth)
Limited voltage (1kV/μs)	15V	25V	45V
Residual voltage output Vrest (8kV/20μs)	30V	40V	60V
Response time ns	<10ns
Band width(-0.5dB)	10Mhz
Outline dimension(L×H×D)	99×92×7.6
Connection mod	Spring plate connection
Maxi. Sectional conductor(mm²)	2.5
Mounting mode	DIN 35mm rail

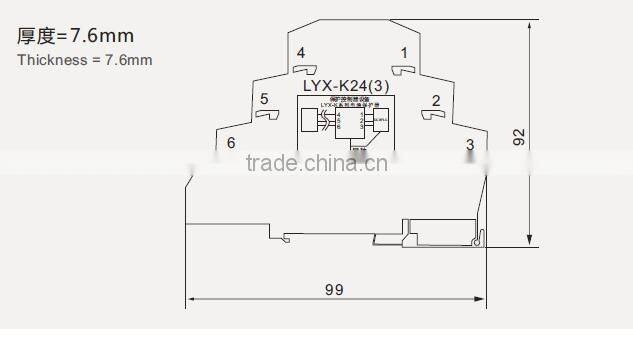

Outside size:
