LYX-Z Signal Video Surge Protective Device SPD
- Ningbo or Shanghai China
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | REYUN | |
| Model Number | LYX-Z |
Product Description

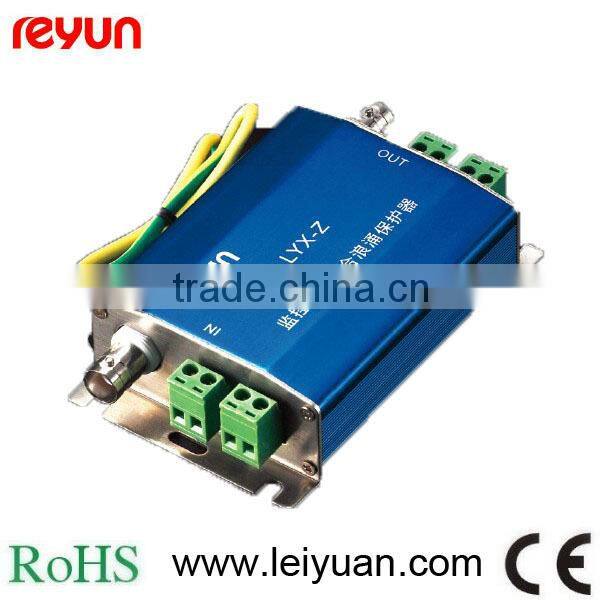

LYX-Z Signal video surge protective device (SPD)
LYX-Z series surge protective device for AC/DC supply monitoring video is multifunction integrated protector 3 in 1, and it can protect the circuit of power supply, video and audio, pan-tilt control in vidicon from surging, maximum discharge current up to 10kA, to limit voltage down to 15V, response time is nanosecond class. It can fully protect the latest hi-tech monitoring equipments.
Characteristics
Multifunctional surging over-voltage protection
Large capacity 10kA
Quick response
3 in 1 designed.
Low loss
Technical parameter
Model and specification | LYX-Z | |
Function | Comprehensive surge protector | |
| Power protection parameters | |
Maxi continuous operating voltage | 320V | 40V |
Load current | 10A | 5A |
Limiting voltage | 900V | 75V |
Normal discharge current | 5kA | 5kA |
Maxi discharge current | 10kA | 10kA |
Video protection parameters | ||
Maxi continuous operating voltage | 8V | |
Limiting voltage | 15V | |
Normal discharge current | 5kA | |
Maxi discharge current | 10kA | |
Maxi. Transmission rates | 10MHz(Insertion loss <0.2dB) | |
PTZ Control signal protective parameter(only three in one type) | ||
Maxi continuous operating voltage | 8V | |
Limiting voltage | 15V | |
Normal discharge current | 5kA | |
