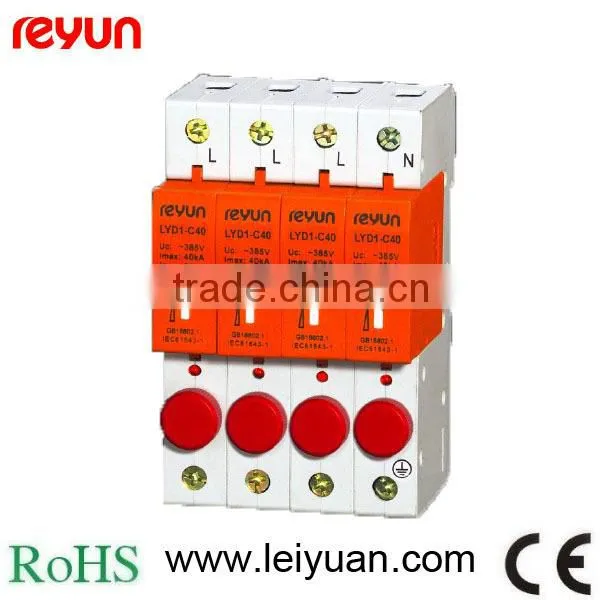

Help CenterLYD1-R SURGE PROTECTIVE DEVICE WITH FUSE (SPD)
Related Products
-
10kA 3P+N Surge Protective Device (SPD)US$ 1 - 10MOQ: 100 Pieces -
10kA 3P+N Surge Protectors (SPD)US$ 1 - 10MOQ: 100 Pieces
-
20kA Surge Protector SPD Class IIUS$ 1 - 10MOQ: 100 Pieces
-
Class C NPE Surge Protective Device SPDUS$ 1 - 10MOQ: 100 Pieces
-
40kA NPE Surge Suppressors (SPD)US$ 1 - 10MOQ: 50 Pieces
Product introduction
In order to meet with user demand, we developed new generation LYD1-R series protector with built-in circuit breaking device, to limit surge current, overvoltage, over-current occurred in the power system duo to some reasons, working in the system of AC 50Hz, rated voltage 380V and below to prevent surge voltage from damaging electric equipment.
Features:
LYD1-R series protector has integrated short circuit protective function in its SPD module fuse not need again, it can be mounted on 35mm railway, compared with normal combination of fuse SPD module, there has following advantages.
Residual voltage reduce more than 50%, for normal combination, fuse body and connected conductor have inductance, and it will result in residual voltage, but LYD1-R series almost has no residual voltage at this case, therefore it can get better result of protecting equipment.
Easy installation, saving space, saving installation cost in cabinet.
Quick response speed, comprehensive performance being improved.
Better N point: no matter which step of circuit, there has shortest distance for discharging surge current, residual voltage decrease more.
Technical parameter
Model and specification |
LYD1-RD10 |
LYD1-RD20 |
LYD1-RC40 |
LYD1-RB60 |
LYD1-RB80 |
Rated working voltage Un(V/AC) |
AC220V/AC380V |
||||
Maxi continuous operating voltage Uc(V/AC) |
AC385/AC420V |
||||
Normal discharge current Imax(kA) (8/20µs) |
10 |
20 |
40 |
30 |
40 |
Maxi discharge current Imax(kA) (8/20µs) |
5 |
10 |
20 |
60 |
80 |
Protective level Up(kV) |
1.0/1.2 |
1.2/1.5 |
1.5/1.8 |
1.8/2.0 |
2.0/2.5 |
Pole combination |
1P, 2P, 3P, 4P, 1P+NPE, 3P+NPE |
||||
Response time (ns) |
≤25ns |
||||
Outline size (mm)(L×H×W) |
135×73×18 |
||||
Protective grade |
IP20 |
||||
Indication of invalidation |
White color is normal and red color is invalidation, and red LED shining is short circuit invalidation. |
||||
Remote signaling function |
Remote signal function can select. |
||||
Remark |
Other maxi continuous working voltage Uc(AC): 175V, 275V, 320V can be supplied if required. |
||||
