Specifications
1.High precision,High speed ,Wide application
2.CE Certification
3.SGS,ISO9001:2008
4.High performance
5.Easy to operation.
| Specifications | |

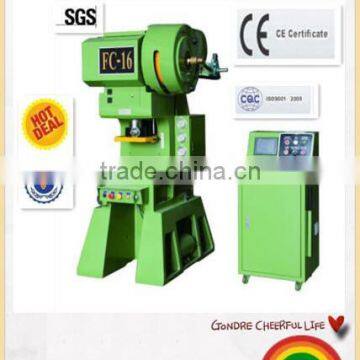

| Model | 16CP/16CF |
| Capacity | 16Ton |
| Stroke of slide | 20 30 |
| S.P.M | 200-900 200-800 |
| Die-Height | 220mm 215mm |
| Bolster area | 430*280mm |
| Slider | 260*185mm |
| Slide Adjustment | 35mm |
| Bed Opening | 330*250*90mm |
| Motor | 3HP |
| Gross Weight | 2300Kgs |
| Circulation | Automation |
| Speed Control | Lnverter |
| Clutch&Brake | Air&Friction |
| Auto Top Stop | Standard |
| Vibration System | Optional |
The Machine of Whole structure and Characteristics:

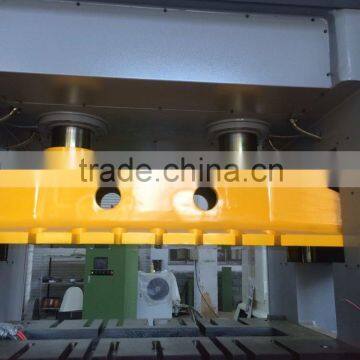

1.By using 4 or 6 round pillars structure,can minimize the dynamic friction.Therefore,in the case of continuous operation for long time,the heat generation is very tiny to ensure the accuracy of the press, it can prevent the damage of the mold,extend the life of the mold.
2. By using versatile bilingual touch screen,displaying operating procedures,punch angle,speed and fault information,complete functions,simple operation,safe and efficient.
3.The machine body is made of excellent tensile strenghth cast iron alloy which have excellent shock-absorbing properities.We have passed the testing of the national quality inspection.Even at high speed stamping and feeding,the body is still calm with small vibration,can ensure the long-term accuracy of the machine.
4.There are both manual and electric way to adjust the mold height,so it's easy to operate.
5.The unique homeostasis design can balance the crankshaft vibration during high speed operation of the slider produced,control the lower dead dead point accuracy.
6.The bearings are imported from Japan with best properties,precision,long life,effective in ensuring good performance of the machine.

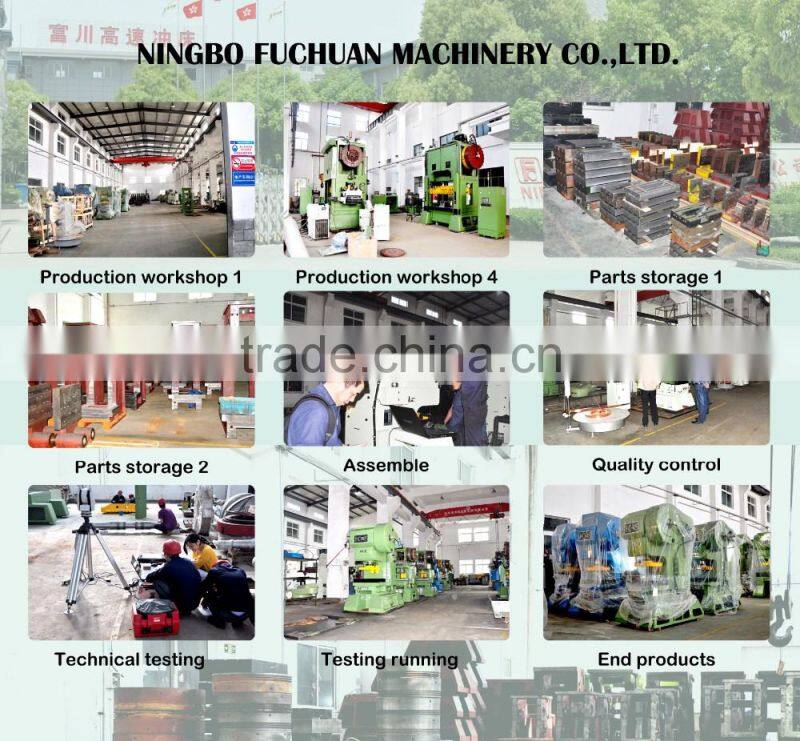

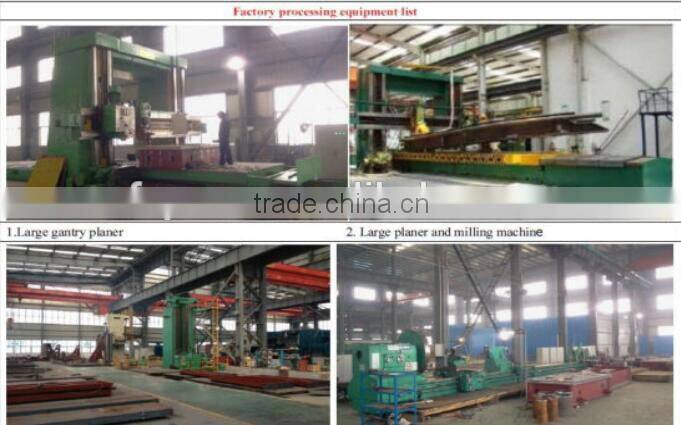

7.There is punching testing workshop in our factory,all punching machines will be well detected before sending out,to ensure it is in high quality,high accuracy,high stability,so it rarely fails after sending out.
Why choose us?
1. The long history.
Our company was established in 2001, 15 years ago. After 15 years of development, our company has accumulated a wealth of experience, and has strong technical strength.
2. The strong technical force.
Our company has a large number of engineers and designers, there are many innovative technologies with the world's top level. Passed CE, ISO9001 certificates.
3. Excellent technique
a. Machine body. Our products are made of excellent tensile strength cast iron alloy with excellent shock-absorbing properties, which passed the testing of the national quality inspection department,even at high speed stamping and high speed feeding, the body is still calm with small vibration,can ensure the long-term accuracy of the machine.
b. Mold height adjustment.There are both manual and electric way to adjust the mould height,so it's easy to operate.
c. Multi-function touch screen.By using versatile bilingual touch screen,displaying operating procedures,punch angle,speed and fault information,complete functions,simple operation,safe and efficient.
d. Reverse dynamic equilibrium technology. The crankshaft is equipped with reverse dynamic equilibrium blocks for shock balance of slider movement at high speed, thereby improving the accuracy of punch.
e. The most outstanding bearings. Our bearings are all imported from Japan, with a very good performance, high precision, long life.
f. Forced lubrication system. Our presses are equipped with forced lubrication systems, able to get the heat and wear to a minimum, increase the service life of the punch.

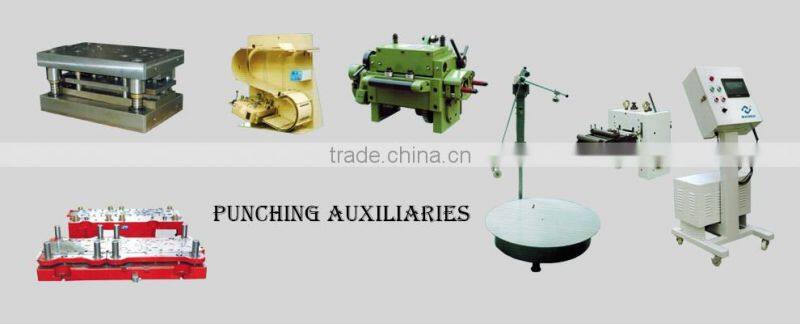

4. The wealth of peripherals.
We can provide a variety of peripherals, including:
(a). Various types of feeders. We can provide a variety of specifications, various types of feeders.
we have roll feeders,gripper feeder,gripper feeder,cam feeder,NC servo roll feeder.
(b). Various kind of uncoiler. we have uncoiler&leveler combination ,2 in 1 or 3 in 1.
(c). SPL Precision straightener,TP precision straightener,SML precisionn straighter,ML straightener.
(d). Many kind of Racks.Single stock reel,double stock reel,electronic horizontal reel.

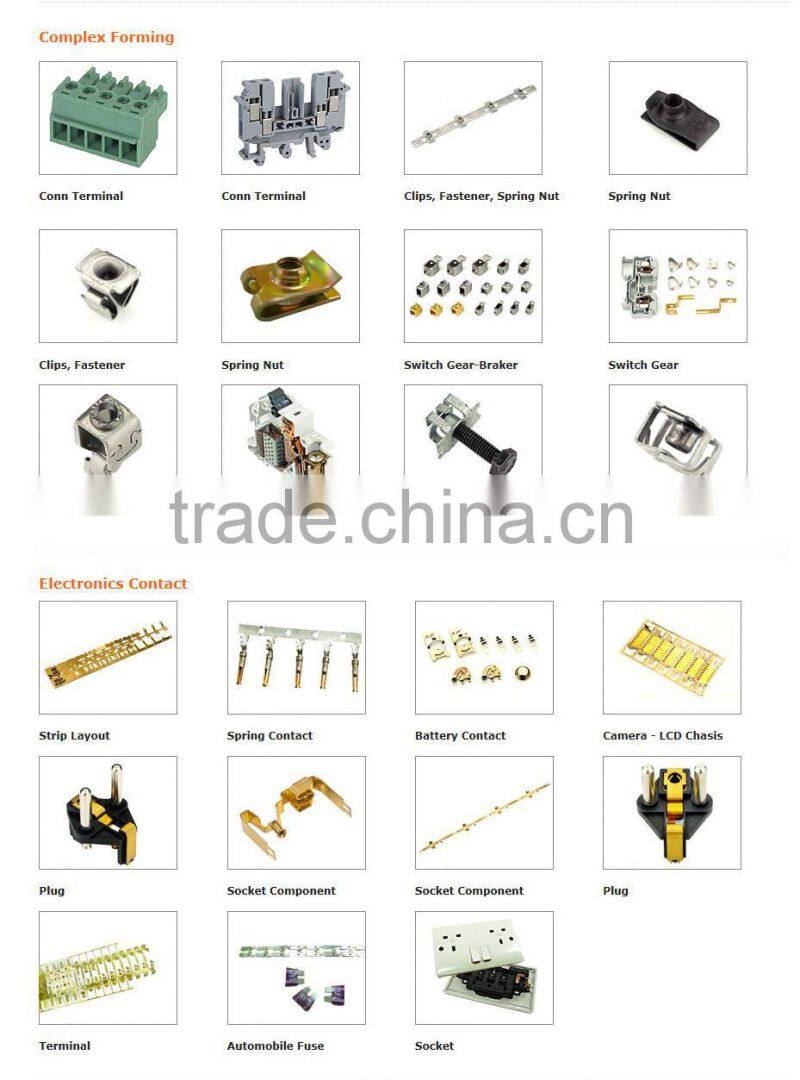

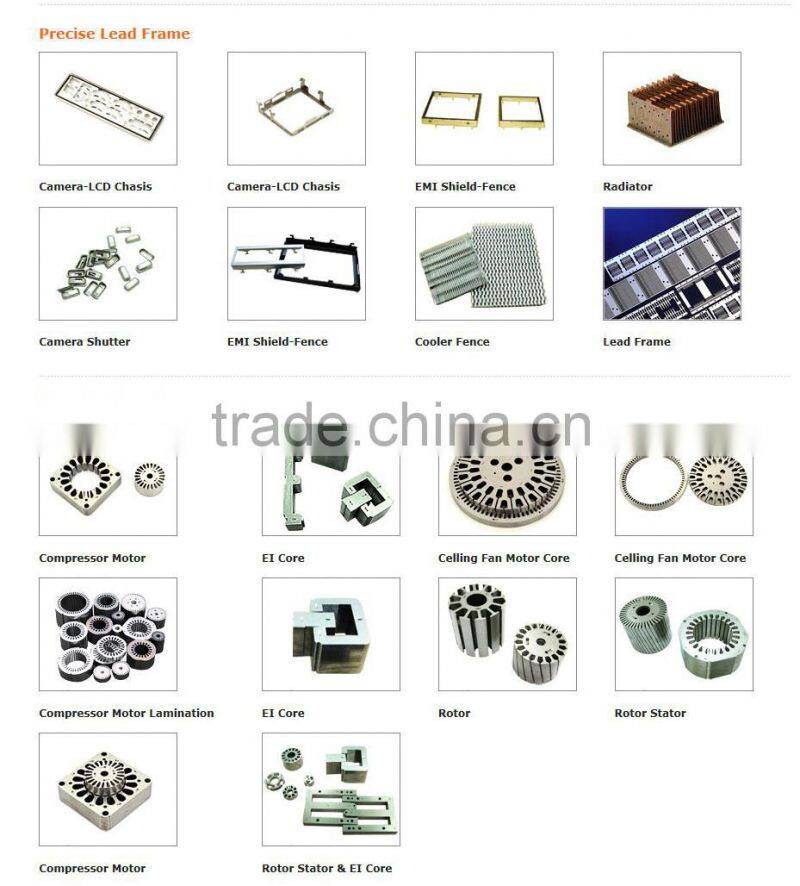

(e). Various molds. All kinds of stamping die, so that you can press any product you want.
We are professional manufacturer mainly focusing on manufacturing punching machines for peripheral equipment.Also,we have been closely cooperated with domestic die and accossories makers successfully for many years.
5. excellent service.
We can provide multi-year shelf life,prodive outstanding engineers to help with installation abroad,training workers to use and etc.
6. A wide range of use.
Our products can be applied to:
Automobile manufacturing, electronics manufacturing, motor manufacturing, electrical manufacturing, equipment manufacturing, instrumentation, manufacturing, medical equipment manufacturing, metal manufacturing.
Welcome to inquiry!
