Specifications
card hotel door lock1.Hotel lock, Europe style.
2.RF card / MF card unlock,+ Key
3. key card lodging systems,

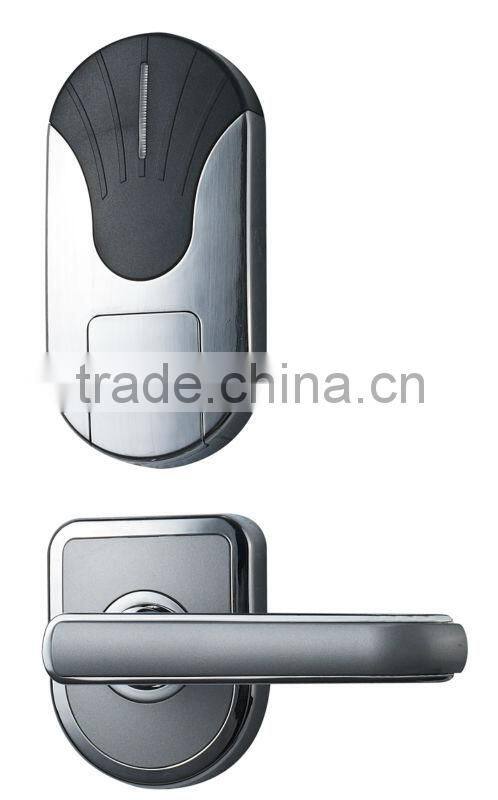

KO-8033 Card Key Hotel Door Lock RF Reader
KO-8033 Card Key Hotel Door Lock RF Reader Introduction:
1.Hotel lock, Europe style. Cast Steel.
2.RF card / MF card unlock,+ Key
3. key card lodging systems,
4.Electronic lockset with #1 ANSI STD Mortise, option in 2#,3# Mortise
5.Sealed PCB(Printed Circuit Board)
6.Door ajar alert,
7.Option finishers in PVD gold or Satin Steel .
8.Dead Bolt in back plate.
9.4pcs AA NO.5 battery can use one year
Size of panel:287*73mm, weight:3.5kg
Our Hotel door lock advantage:
1. Low price: very competitive price range.
2. Best quality: manufactory supply, stable with fast after-sale service
3.Quick shipping: For 100 hotel locks delivery time 2-5 days.
4. Safe&secure transaction: Payment by TT; PayPal; Western Union,Escrow
5.Experienced technical service: Any technical demands or special requirement we can supply for you.
6.After-sale service:2 years warranty.
KO-8033 Card Key Hotel Door Lock RF Reader Technical parameters
Item |
Specification |
Static Power Consume |
< 18uA |
Dynamic Power Consume |
<200mA |
The Alarming Volta |
<4.8V,200 times unlocking permitted. |
Induction Frequency |
125KH (T5557 card), 13.5M Hz (M1 card) |
Read card time |
<0.4 S |
Card Type |
T5557 card or M1 card |
Fixing Door ply |
38mm-70mm |
Communication frequency |
125KH |
Door-opening records |
300 pcs |
Maximum Read card Distance |
40mm |
Voltage |
DC 4.5-6.5V, 4*1.5V alkaline battery |
Storage Temperature |
-20~85°C |
Working Temperature |
0~80°C |
Storage Humidity |
10~95%RH |
Working Humidity |
15~95%RH |

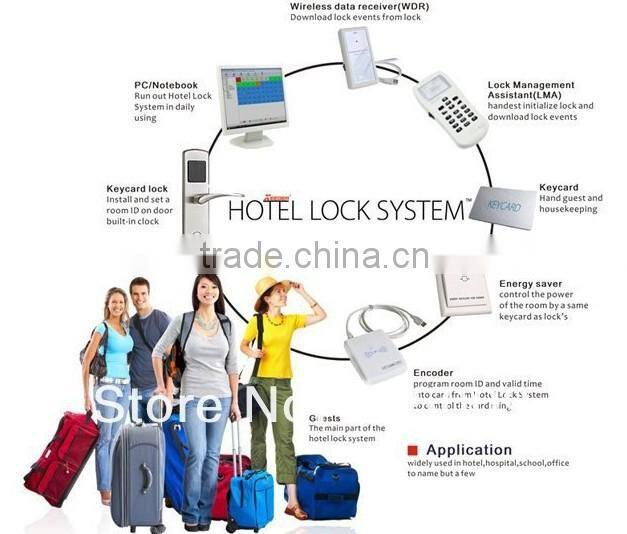

KO-8033 Card Key Hotel Door Lock RF Reader Solutions:
Normally,this system is composed of the bellowing parts:
1.Lock (qty = guest room)---For open the door
2.Encoder (1pcs/hotel ) ---For issuing all kinds of cards
3.Switch (qty = guest room)---To get the power
4.Cards (qty = 5 times of guest room)-----For open the lock
5.Data collector (1pcs/hotel, optional by customers)-----For getting the time and times of the entrance information from the lock
6.Self developed software (1 disk, with customer's language, free of charge)----For setting the program the whole system.
