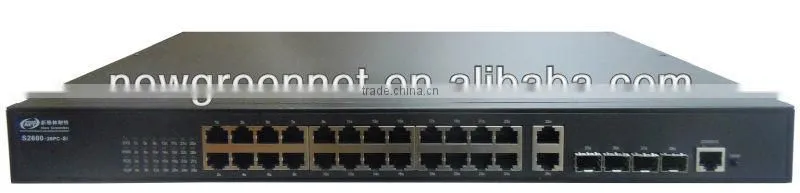

Help CenterGCOM Carrier-Class Access POE Switch, 24 Ports, S2600-28PC
Related Products
-
GCOM L2 FE 16 Ports POE Switch , S2600-20PCNegotiableMOQ: 1 Piece -
GCOM POE Carrier-Class Access Switch,8 Ports, S2600-09/10PCNegotiableMOQ: 1 Piece
-
GCOM 26 Port POE Switch Battery Powered Network SwitchNegotiableMOQ: 1 Piece
-
GCOM POE Battery Powered Network Switch S5100 Series in ShenzhenNegotiableMOQ: 1 Piece
-
China Supplier GCOM S2600 Series 24 Ports Gigabit POE SwitchNegotiableMOQ: 1 Piece
S2600-28PC
- 24*10/100Base-T with POE power supply
- 2*ComboGE+(100/1000M BaseX SFP or 100/1000M BaseT)
- 2*1000BaseX SFP
- 10K Jumbo, 16K MAC address, 4K VLAN, QinQ
- 460 ACL with controlling depth of L4
- Full-loaded power-consumption is lower than 37W(without POE supply)
- POE supply satisfy 802.3af and 802.3at
- Max power consumption supply of single port is 32W
Item |
2600-28PC |
Backplane capacity |
40Gbps |
Interface switching capacity |
12.8Gbps |
Forwarding capacity |
9.6Mpps |
Port |
24*10/100Base-T, 2*ComboGE(100/1000Base-X SFP or 10/100/1000Base-T),2*1000Base-X SFP |
Power consumption |
Full-loaded≤37W (without POE) Idle≤18W |
Dimensions (width x depth x height)) |
438mm×420mm×44mm |
Weight (Full-loaded) |
≤6kg |
Power |
Input AC : 90~264V, 47~63Hz |
PoE Power supply |
400W |
POE features |
8/16/24*Base-T support POE, use data cable 1,2,3,6 to supply power,satisfy for 802.3at Alternative A. Satisfy 802.3af standard and 802.3at standard,max power consumption of single port is 32/40W. S2600-28PC provides full-loaded 24 ports 802.3af(15.4W)or 15 ports 802.at(26W)to supply power |
Environmental requirements |
Operating Temperature:-15°C~55°C Storage Temperature:-40°C~70°C Relative humidity:10%~90%,non-condensing |
