GCOM Gigabit Ethernet Switch S5300 Series Gigabit Ethernet Switch Alibaba China
Gigabit Ethernet Switch Specifications:
1. 1000 units Sells per Month
2. 1 pcs MOQ
3. 15 days delivery after received money
4. 1 year warranty
Gigabit Ethernet Switch Product Overview:
S5330 series are designed for class-carrier GE access and 10G uplink network, they cover all kinds of enterprise/ operators customer. It provides 20/24/48* 10/100/1000Base-T,1000Base-X SFP or 10G SPF+ for the demand of cost-effective Gigabit access / aggregation.S5330 adopts high performance processor to provide full speed forwarding and line-dormant capacity to coordinate with NGGN unified software. It supports strong ACL and IP+MAC+ports binding etc .
Gigabit Ethernet Switch Product Specification:
Item |
S5330-28TX |
S5330-52TX |

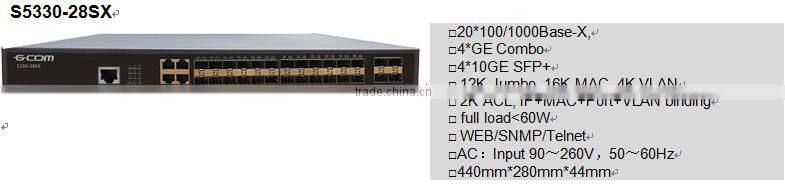

S5330-28SX |
Interface switching capacity |
128Gbps |
176Gbps |
128Gbps |
Forwarding capacity |
95Mpps |
130Mpps |
95Mpps |
Memory and flash |
512MB SDRAM memory and 16MB flash |
||
Power |
AC:Input 90~260V,50~60Hz; |
||
Power consumption |
Full-loaded≤40W Idle≤13W |
Full-loaded≤60W Idle≤25W |
Full-loaded≤60W Idle≤20W |
Dimensions (width x depth x height)) |
440mm*220mm*44mm |
440mm*300mm*44mm |
440mm*280mm*44mm |
Weight (Full-loaded) |
≤3.5kg |
≤3kg |
≤3kg |
Environmental requirements |
Working temperature:-15°C~55°C Storage temperature:-40°C~70°C Relative humidity:10%~90%,non-condensing |
||
Gigabit Ethernet Switch Business Features:
Item |
S5330-28TX/52TX/28SX |
|
L2 features |
MAC |
16K MAC address MAC Black Hole Port MAC Limit |
VLAN |
4K VLAN entries Port based QinQ PVLAN to realize port isolation and saving public-vlan resources GVRP |
|
Spanning tree |
STP/RSTP/MSTP Remote-loop-detect |
|
Port |
Bidirectional bandwidth control, configure entry/exit and the smallest 64K control particle Static and LACP Port- mirroring of 1:1 or N:1 |
|
Security features |
User’s security |
ARP anti-Flooding, configure ARP traffic safety threshold and inhibition ARP packet ARP anti-Spoofing, configure ARP inner and outer MAC check and static ARP checklist and drop / flood action IP+MAC+port+VLAN binding manually Port Isolation, configure hardware isolation of each port Bind MAC address to port and MAC address filtration on port IEEE 802.1x and AAA/Radius authentication |
Device security |
Anti-DOS attack SSHv2 Secure Shell SNMP v3 encryption Telnet based on Security IP Prevent unauthorized user |
|
Network security |
One button binding based on dynamic ARP table Manual binding parameter of IP ,VLAN ID,MAC and port etc. L2-L7 ACL flow filtration Auto-shutdown port in storm Update user’s location through DHCP Option82 and PPP |
|
Service features |
ACL |
Activate standard and extended ACL Time Range ACL strategy Flow classification based on SMAC,DMAC,VLAN,SIP,DIP,IP IP(IPv4/IPv6) ,TCP/UDP port num, protocol type etc. Packet filtration of L2~L7 IP header with 80bytes |
QoS |
Rate-limit to packet sending/receiving speed of port or self-defined flow and provide general flow monitor and two-speed tri-color monitor of self-defined flow Packet mirror and redirection of interface and self-defined flow Supports Priority remark to port or self-defined flow and provide 802.1P, DSCP priority and Remark Super queue scheduler based on port and self-defined flow. Each port/ flow supports 8 priority queues and scheduler of SP, WRR and SP+WRR |
|
Multicast |
IGMPv1/v2/v3 Snooping IGMP Filter MVR multicast VLAN register and cross VLAN multicast replication IGMP Fast leave IGMP Proxy |
|
Reliability |
Loop protection |
EAPS and GERP Loopback-detection |
Link protection |
FlexLink RSTP/MSTP LACP |
|
Device protection |
Backup of host program and configuration files |
|
Maintenance |
Network maintenance |
Port real-time, utilization and transmit/receive statistic based on CLI Port real-time, utilization and transmit/receive statistic based on CLI 802.3ah Ethernet OAM Syslog and RFC 3164 BSD syslog Protocol Ping and Traceroute |
Device management |
CLI, Console port, Telnet and WEB SNMPv1/v2/v3 RMON (Remote Monitoring)1,2,3,9 group MIB NTP GN.LinkⅡ Server NGBNView network management |
|
