Home > Products > Layer 2 Ethernet Switch > GCOM 16 port Ethernet Switch S2600 Series Switch Network in Shenzhen

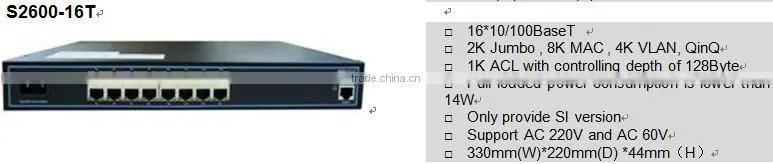

GCOM 16 port Ethernet Switch S2600 Series Switch Network in Shenzhen
- 1000 Piece / Pieces per Month
- Shenzhen
- T/T
- ZTE 5928E, RS-5928E, RS-59EC-PWR-AC10, RS-59EC-PWR-DC10, 24 GE RJ45 + 1 expansion card ZTE ZXR10 5928E 5952E 5916E RS-5916E RS-
- ZTE 2952E, RS-2952E-AC, RS-2952E-DC, 48 FE RJ45 4 GE SFP ZTE ZXR10 2952E 2928E 2918E 2910E
- ZTE 3950-28TM, RS-3950-28TM-AC, 24 FE RJ45 + 2 GE SFP + 1 expansion card slot ZTE ZXR10 3950
- ZTE 2950-18TC, RS-2950-18TC-AC, 16 FE RJ45 + 2 GE Combo ZTE ZXR10 2950
- ZTE S2XF48A, 48-port 10GE SFP+ optical interface ZTE ZXR10 8902E 8905E 8908E 8912E RS-8902E RS-8905E RS-8908E RS-8912E
- ZTE 5250-28PM-H, RS-5250-28PM-H, 20 GE RJ45 (POE/POE+) + 4 GE Combo ports + 1 expansion card ZTE ZXR10 5250
Product Details
Place of Origin: | Guangdong, China | Brand Name: | GCOM | Model Number: | S2600-16T |
Product Description
GCOM 16 port Ethernet Switch S2600 Series Switch Network in Shenzhen
Switch Network Specifications:
1. 1000 units Sells per Month
2. 1 pcs MOQ
3. 15 days delivery after received money
4. 1 year warranty
Switch Network Product Overview:
S2600 series Ethernet switches (hereinafter referred to as the S2600) are developed by New GreenNet to carry multiple Ethernet services, targeting advanced MAN and intranets. The S2600 applies to various Ethernet access scenarios. Based on high-performance hardware of a new generation and the intelligent CPU, the S2600 provides abundant and flexible service features, ensuring operability, manageability, and expansibility. The S2600 withstands lightning strikes and bears excellent security features. It also supports strong ACL functions, QinQ, and 1:1 and N:1 VLAN switch to flexibly deploy VLANs.
Switch Network Business Features:
Item | S2600-08T/09TC/10TC/16T/24T/18TC/26TC/28TC/28SC/52TS | |
L2 features | MAC | 8K/16K MAC address Aging time and add/remove static MAC MAC Black Hole Port MAC Limit Disable MAC address learning on port or channel-group |
VLAN | 4K VLAN entries. Port-based and MAC-based VLAN PrivateVLAN Port-isolation in a VLAN Port QinQ and selective QinQ 1:1 and N:1 VLAN switching | |
Port | Bidirectional bandwidth control, configure entry/exit Storm-control on port, configure broadcast/multicast/unknown unicast Static and LACP, configure 14/30 groups and 8 members port each group Port- mirroring of 1:1 or N:1 | |
Ring | STP/RSTP/MSTP Remote-loop-detect | |
Security features | User’s security | ARP anti-Flooding, configure ARP traffic safety threshold and inhibition ARP packet ARP anti-Spoofing , configure ARP inner and outer MAC check and static ARP checklist and drop / flood action IP Source Guard, auto-create IP+MAC+port+VLAN binding table IEEE 802.1x and AAA/Radius authentication |
IP+MAC+port+VLAN binding manually Port Isolation Bind MAC address to port and MAC address filtration on port | ||
Network security | User-based ARP abnormal traffic filtration Auto-shutdown port in storm Update user’s location through DHCP Option82 and PPPoE+ | |
Port-based broadcast/multicast/unknown unicast suppression L2-L4 ACL flow filtration | ||
Device security | Anti-DOS attack SSHv2 Secure Shell SNMP v3 encryption Telnet based on Security IP Prevent unauthorized user | |
Service features | ACL | Activate 1K/460 standard and extended ACL at the same time Port/VLAN/global-based ACLand Time Range-based ACL strategy CAR and ACL in the dynamic AAA |
QoS | 4 /8 queues with different priorities on each interface, configure the algorithms of SP, WRR, and SP+WRR Flow classification based on SMAC,DMAC,VLAN,SIP,DIP,IP protocol, port number and CoS Traffic priority definition and packet re-direction | |
Multicast | 1K L2 multicast groups IGMPv1/v2/v3 Snooping IGMP Filter/Fast leave/cross-VLAN duplication MLDv2/MLDv2 Snooping | |
Reliability | Loop protection | EAPS and ERRP Loopback-detection |
Link protection | FlexLink RSTP/MSTP LACP | |
Maintenance | Network maintenance | Port real-time, utilization and transmit/receive statistic based on CLI LLDP 802.3ah Ethernet OAM Syslog and RFC 3164 BSD syslog Protocol Ping and Traceroute |
Device management | CLI, Console port, Telnet and WEB management SNMPv1/v2/v3 RMON (Remote Monitoring)1,2,3,9 MIB NTP GN.LinkⅡ Server NGBNView network management |
