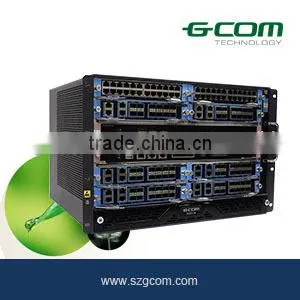

GCOM Layer 3 S8600-08 10GEPON OLT
10GEPON OLT Specifications:
1. 1000 units Sells per Month
2. 1 pcs MOQ
3. 15 days delivery after received money
4. 1 year warranty
10GEPON OLT Product Overview:

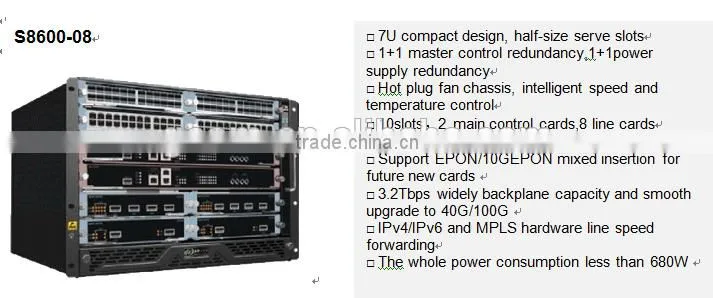

S8608 10GEPON OLT is designed by G-COM for high-density access switching integrated platform which combine multi-service and high-density 10G switching requirement. As the new generation of smart equipments for the telecommunications integrated access network, it could build EPON/10GEPON general platform and have the features of small size, huge capacity, high density and powerful performance, which could supply high quality sustainability solution for Broadband Access, Transmission of Mobile Data Base Station, CPN (Customer Premise Network ), E-Commerce and so on.
10GEPON OLT Product Specification:
Item |
S8600-08 |
|
Backplane capacity |
>3.2Tbps |
|
Switching capacity |
1.6Tbps |
|
|
Throughput (IPv4/IPv6) |
1440Mpps |
|
Number of slots |
10 |
|
Number of service board slots |
8 |
|
Service port |
EPON |
128*EPON |
GPON |
64*GPON,64*GE |
|
Switch |
192*GE,64*10GE |
|
Redundancy design |
1+1 power redundancy 1+1 main control redundancy |
|
Power supply |
AC:90~260V,50~60Hz; DC:-36V~-72V; |
|
Power consumption |
≤680W |
|
|
Outline dimensions (mm) (W*D*H) |
442mm×310mm×420mm |
|
Weight (in maximum configuration) |
≤25kg |
|
|
Environmental parameter |
Working temperature:0°C~40°C Storage temperature:-40°C~70°C Relative humidity:10%~90%,no condensing |
|
10GEPON OLT Business Features:
Attributes |
S8600-08 10GEPON OLT |
|
|
PON features
|
IEEE 802.3ah EPON China telecom/Unicom GEPON standard 20Km for single fibber Access 64 terminals for single fibber PON Uplink and downlink triple churning encrypted function ONU terminal legitimacycertification, report illegal ONU registration DBA algorithm Standard OAM and extended OAM ONU batch software upgrade, fixed time upgrade, real time upgrade PON transmit and inspect receiving optical power |
|
L2 features |
MAC |
MAC Black Hole Port MAC Limit MAC address limitation based on ONU |
VLAN |
4K VLAN entries Port-based/MAC-based/IP subnet-based VLAN Port-based QinQ and Selective QinQ (StackVLAN) VLAN Swap and VLAN Remark and VLAN Translate GVRP Based on ONU service flow VLAN add, delete, replace |
|
Spanning tree protocol |
IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol instances (MSTP) ONU remote loop detecting alarm |
|
Port |
Bi-directional bandwidth control Static link aggregation and LACP(Link Aggregation Control Protocol) Port mirroring and traffic mirroring |
|
Security features |
User security |
Anti-ARP-spoofing Anti-ARP-flooding IP Source Guard create IP+VLAN+MAC+Port binding Port Isolation MAC address binds to port and port MAC address filtration IEEE 802.1x and AAA/Radius authentication TACACS+ authentification dhcp anti-attack flood attack automatic suppression ONU isolation control |
Device security |
Anti-DOS attack(such as ARP,Synflood, Smurf, ICMP attack), ARP detection, worm and Msblaster worm attack SSHv2 Secure Shell SNMP v3 encrypted management Security IP login through Telnet Hierarchical management and password protection of users |
|
Network security |
User-based MAC and ARP traffic examination Restrict ARP traffic of each user and force-out user with abnormal ARP traffic Dynamic ARP table-based binding Supports IP+VLAN+MAC+Port binding L2 to L7 ACL flow filtration mechanism on the 80 bytes of the head of user-defined packet Port-based broadcast/multicast suppression and auto-shutdown risk port URPF to prevent IP address counterfeit and attack DHCP Option82 and PPPoE+ upload user’s physical location Plaintext authentication of OSPF,RIPv2 and BGPv4 packets and MD5 cryptograph authentication |
|
IP routing |
IPv4 |
ARP Proxy DHCP Relay DHCP Server Static route RIPv1/v2 OSPFv2 BGPv4 Strategy route Route policy |
IPv6 |
ICMPv6 ICMPv6 redirection DHCPv6 ACLv6 OSPFv3 RIPng BGP4+ Configured Tunnel ISATAP 6to4 tunnel IPv6 and IPv4 Tunnels |
|
Service features |
ACL |
Standard and extended ACL Time Range ACL Packet filter providing filtering based on source/destination MAC address, source/destination IP address, port, protocol, VLAN, VLAN range, MAC address range, or invalid frame. System supports concurrent identification at most 50 service traffic Support packet filtration of L2~L7 even deep to 80 bytes of IP packet head |
QoS |
Supports rate-limit to packet sending/receiving speed of port or self-defined flow and provide general flow monitor and two-speed tri-color monitor of self-defined flow Supports priority remark to port or self-defined flow and provide 802.1P, DSCP priority and Remark Supports CAR(Committed Access Rate),Traffic Shaping and flow statistics Supports packet mirror and redirection of interface and self-defined flow Supports super queue scheduler based on port and self-defined flow. Each port/ flow supports 8 priority queues and scheduler of SP, WRR and SP+WRR. Supports congestion avoid mechanism,including Tail-Drop and WRED |
|
Multicast |
IGMPv1/v2/v3 IGMPv1/v2/v3 Snooping IGMP Filter MVR and cross VLAN multicast copy IGMP Fast leave IGMP Proxy PIM-SM/PIM-DM/PIM-SSM PIM-SMv6,PIM-DMv6,PIM-SSMv6 MLDv2/MLDv2 Snooping |
|
MPLS |
L3 MPLS VPN L2 VPN: VLL (Martini, Kompella) MCE MPLS OAM |
|
Reliability |
Loop protection |
EAPS and GERP (recover-time <50ms) Loopback-detection |
Link protection |
FlexLink (recover-time <50ms) RSTP/MSTP (recover-time <1s) LACP (recover-time <10ms) BFD |
|
Device protection |
VRRP host backup Double fault-tolerant backup of host program and configuration files 1+1 main control panel hot backup 1+1 power hot backup Fan redundancy |
|
Maintenance |
Network maintenance |
Telnet-based statistics RFC3176 sFlow LLDP 802.3ah Ethernet OAM RFC 3164 BSD syslog Protocol Ping and Traceroute |
Device management |
Support command-line interface(CLI), Console, Telnet and WEB configuration Support System configuration with SNMPv1/v2/v3 Support RMON (Remote Monitoring)1/2/3/9 groups of MIB NTP(Network Time Protocol) Support GN.LinkⅡ Server Support NGBNView network management |
|
