2 Axles 20ft And 40ft Flat Bed Container Trailer
- 500 Set / Sets per Month
- Qingdao
- T/T Credit Card
You May Like
-
Heavy Truck 3 Axle 60t Flat Bed Semi Trailer With Free Spare Parts Steel Spring Suspension Or Air Suspension
-
High Quality 2 Axles 3 Axles 4 Axles Flat Bed Semi Trailer For Sale
-
4 Axles Customized Best Selling 3 Axle Side Panel Semi Trailers Flat Bed Trailer
-
Best price professinal manufacture Low Flat bed Container Semi Trailer
-
container flat bed semi trailer three axle
-
Large Capacity Multi-axles 45 ton 3-axle flat bed truck trailer, truck trailer used for sale germany
Product Details
Type | Semi-Trailer | Material | Steel | |
Certification | Other, ISO,CCC | Size | 12450mm*2490mm*1575mm | |
OEM No. | DORSON semi-trailer | Max Payload | 45T | |
Place of Origin | Shandong, China | Brand Name | DORSON | |
Model Number | specifications |
Product Description
2 Axles 20ft And 40ft Flat Bed Container Trailer
Axle: 3 or 2
Twist lock:12 pieces
Tare weight: 7.6-8.5 Ton
Loading capacity: 45 Ton
Usage:loading container and bulk
Flat bed container truck semi trailer
Dimensions | 12450mm*2490mm*1575mm |
Loading Capacity | 45 T |
Tire | 12R22.5 |
Rim | 9.00-22.5 |
Axles | 13Tx3,FUWA (BPW optional) |
King Pin | 2 inch or 3.5 inch |
Landing Leg | 28 tons |
Suspension | Mechanical suspension(Germany or America type) |
Main Beam | Height: 500mm Upper Plate: 14mm Middle plate: 8mm Bottom plate: 16mm Material: Q345B Steel |
Brake System | Dual line braking system /ABS |
Brake Air Chamber | Six double chamber |
Electrical | 12V or 24 V |
Light | LED light (specially intended for oversea market) |
Container lock | 4 units, 8 units or12 units |
Platform | 3mm thickness checkered plate |
Painting | Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats |
Remake | Customized Flatbed Trailer Available, this technical parameter just for your reperence |

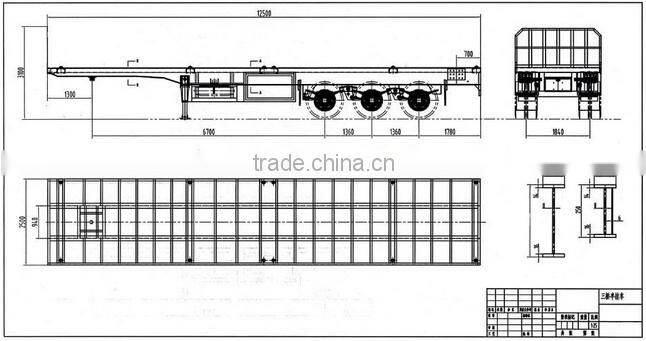

REFERENCE DRAWING

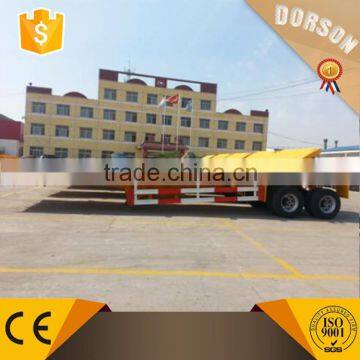

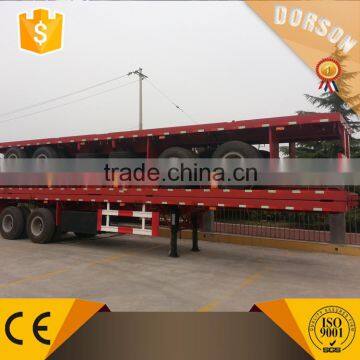

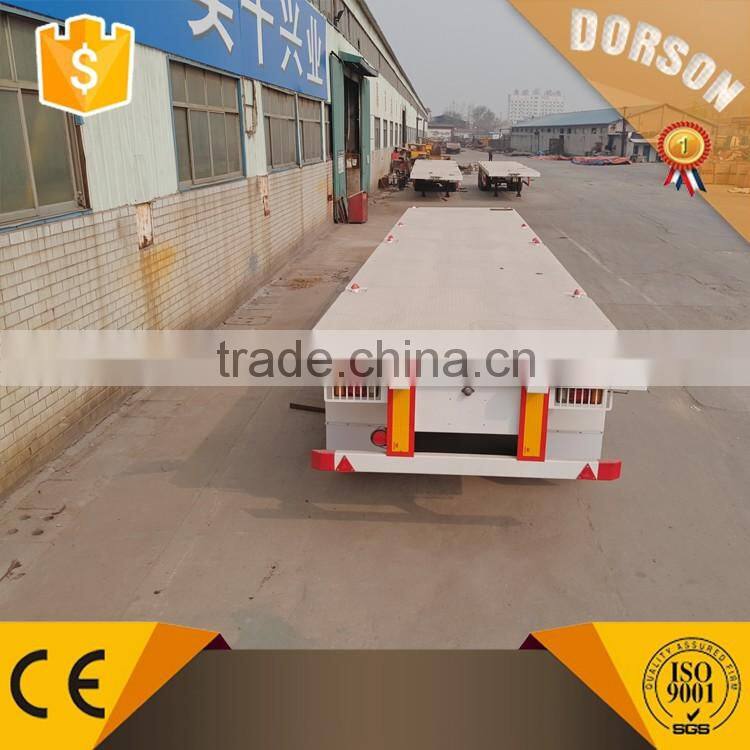

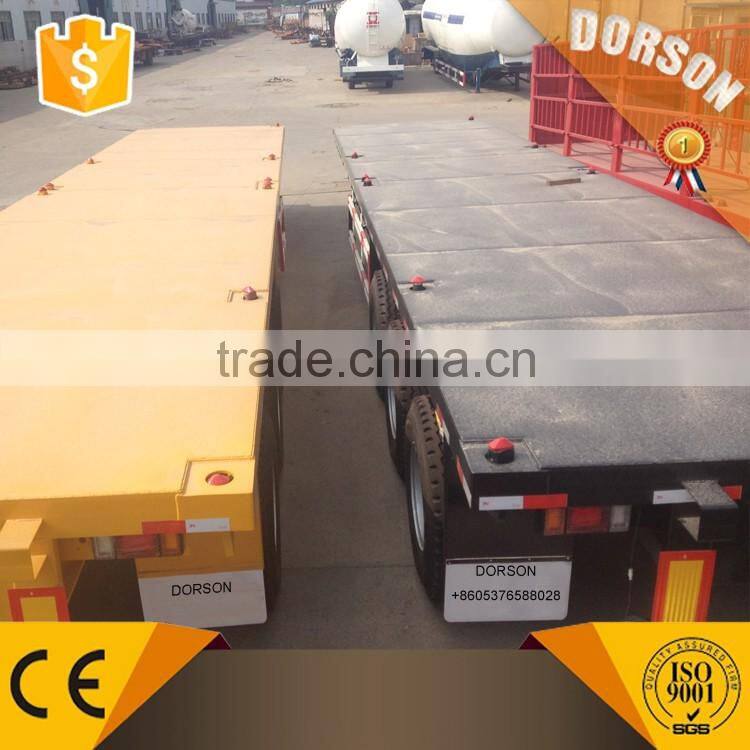

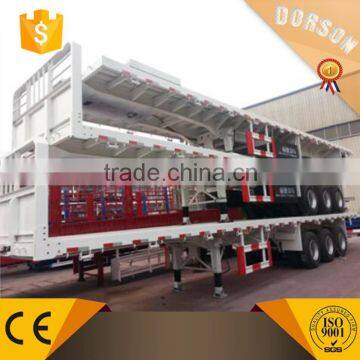

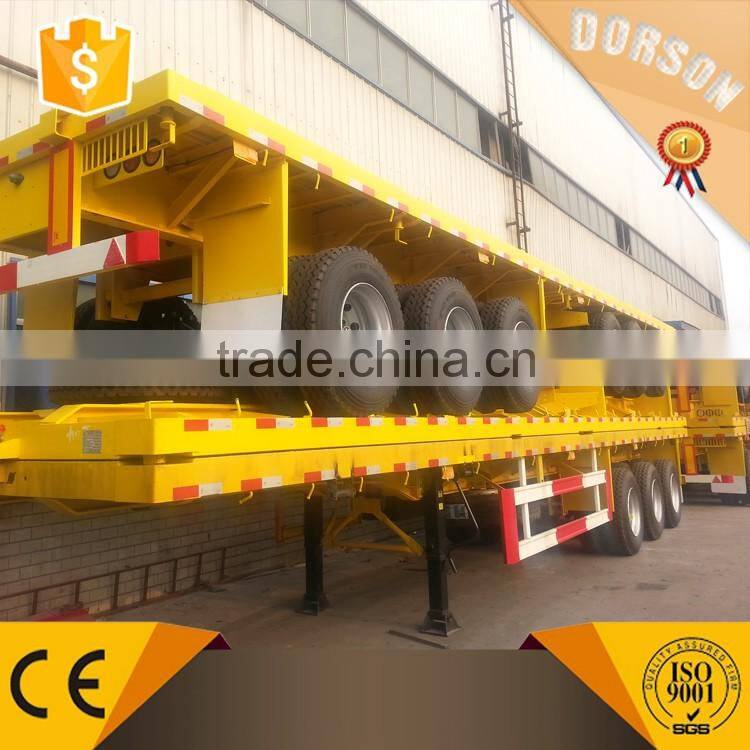

More pictures for your reference:
Parts Advantages |
FUWA axle: Famous Brand Axle support Trailer Duralbe and High Truck Attendance Rate. Material: China Best Q345B-T700 support Stronger Trailer Skeleton. Parts: Good Quality Parts Support Safty and Longtime Use. Emergency Valve: Fast Response,Low Failure support Safety and Protect Tire Longer Timer Use. |
Manufacture the product in strict accordance with ISO9001 and implement total quality management system to ensure the quality of product
Quality Control Flow Diagram
Part warehouse in inspection -> Production process inspection -> Assembly process inspection -> Finished product warehouse inspection -> PDI inspection
Packaging Details: | Transport by bulk cargo carrier, RORO or 40HQ container. |
---|---|
Delivery Detail: | after 15 days when confirmed your order |
Shandong Dorson Hydraulic Co.,ltd (former name Jining Automobile Spare Parts Co.,ltd, established in 1956) which developed into private joint-stock company that specialized in producing the excavator parts including idler cushion, front idler, sprocket, track roller, carrier roller, rotary joints, hydraulic redirector, cycloid motor, one-piece multi-way valve, central rotary joints since 1998.
1- Any questions would be replied within 24 hours, Any quality problems caused by design and manufacturing would be solved in time, warranty is strictly based on the contract terms.
2- when there is demand for services, make comments within 12 hours of treatment services in place within 24 hours, special issue no more than 72 hours. Before the fault is not excluded, staff will maintain communication with customers.
3- There are plans to establish a service network continueing to provide users with the perfect service and timely and adequate supply of spare parts.
4- beyond the parts warranty period or result from the use, maintenance, improper adjustment of other non-manufacturing problems caused the malfunction, financed the purchase by the user related parts, Shun company free of charge to users fix support.
5- sales tracking: The company sold tractor series, we will do long-term after-sales tracking service, let us use the excellent services ensure that every customer satisfaction with the product can be used on.
6- Professional maintenance: We have a professional maintenance personnel, provide warranty free parts, according to customer requirements, professional standards for their maintenance, excluding tractors fault, dedicated customer Heart, satisfied.
7- strictly abide by the provisions of international warranty contract, fulfill due obligations.
why choose us
1. Our company started factory many years.
2. Export to over 30 countries/region, especial in whole Europe and Australia market
3. Over 200 employees work in shift ensure the punctual delivery time
4. R&D team is qualified to do customized project, OEM services
5. Inspection is carried out all through the production process
6. Export sales team is professional to serve customers, quick respond and excellent after-sales
7. Convenient and economy transportation, ship from Qingdao or Tianjin sea port of China, very convenient
8. CE & ISO9001 Certificate
9 .More easy wear spare parts will be attached with the truck crane for free
10. Our factory can do urgent order for customers with high quality if you need the crane badly
Contact us for more detailed information!
