QT12-15making Cement /paver Blocks Machine /price of Brick Making Machine
- xiamen
- T/T
You May Like
-
Automatic QT6-15brick Making Machine/machine Concrete /block of Concrete
-
QT10-15/industry Machines /concrete Block /brick Making Business
-
QT5-15china Block Machine /block Making Machine Manufacturer /interlock Brick Machine
-
QT5-15machine Traders/ High Quality Concrete Making Machine
-
QT4-15 Bricks Making Machines in South Africa Concrete Sale
-
Hot Sell QT5-15 Brick Making Machine in Pakistan Machinery Production
Product Details
| Condition | New | Type | Hollow Block Making Machine | |
| Brick Raw Material | Fly Ash | Processing | Brick Cutting Machine | |
| Method | Autoclaved Aerated Concrete | Automatic | Yes | |
| Capacity | 8 Hours | Place of Origin | Fujian, China | |
| Brand Name | Zhanpeng | Model Number | QT12-15 | |
| Voltage | 380V | Power | 57.6 | |
| Dimension(L*W*H) | 11500*4050*2800mm | Certification | CE ISO | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Quanzhou Zhanpeng Machinery Equipment Co., Ltd.
QT Series Multi-functional Fully Automatic Block Making Machine
As a “National Inspection-free Product”, Zhanpeng block making machine is well supported with complete functions, easy operation and stable quality. It has reached the leading level of its kind at home. It is applied in producing high-strength and fine-quality ordinary concrete blocks, fly ash blocks, waste residue blocks, etc. The blocks produced are featured with high consistency, good capabilities in frost-resistance, permeability-resistance, sound insulation, thermal insulation, heat-preservation property and reliable performance.
Production of video:
https://youtu.be/mAToMpAUh0A
Technical Features:
It adopts Germany frequency conversion technology and is controlled by variable frequency of the main machine. All the main electric and hydraulic components are world well-known brands. The block production line is realized fully automatic operation, which saves the operation intervals, improve production efficiency. It is versatile that can be made up as a simple production line with stacker. It is economic and practical for medium-sized enterprises to set up a simple production line with excellent production outputs.
Advantages Of QT12-15 Automatic Block Making Machines:
Our machines, with harmonic cooperation between mechanical, electrical and hydraulic machines functions, guarantee a reliable and high output production of concrete products.
Use Frequency Conversional Control Technology, which controls the block making:
A. Frequency Conversion Control: guarantees the precise and parallel movement between tamper head and mould, protects the products from transfiguration; increases the production rate by improving the vibrating efficiency;
B. Controls the instantaneous start and stop of the motors, to protect the motor from over-heating caused by constant working;
C. Power saving: 30%;
Use Germany Siemens PLC control system and Siemens Touch Screen, use Schneider and Omron relays and contactors:
A. Siemens PLC, with great adaptability, guarantees the stability and reliability of the machine.
B. Visualization touch screen, with easy operation;
C. High-quality electrical components from Schneider and Omron;
QT12-15 Main Technical Specifications
Vibration Frequency
| 3800-4500r/min
|
Main machine weigh
| 14500kg
|
Dimension
| 11500*4050*2800mm
|
Capacity
| 57.6
|
Cycle Time
| 15-23(S)
|
Rated pressure
| 31.5
|
Vibration force
| 150 |
Pallet size
| 1350*880mm
|
Note:The output listed above is based on theoretical calculation.The moulding cycle and output are subject to raw materials and products types.
Name and picture |
Hollow Block
|
Porous Block
|
Solid Brick |
Holland Brick
|
size | 390*190*190
| 240*115*90
| 240*115*51
| 200*100*60
|
PCS/MOULD | 12 | 30 | 63 | 42 |
PCS/8HOURS output
| 17280-23040
| 43200-57600
| 90720-120960
| 54600-69300
|
1> Is this block machine suitable for us to use?
Answer:Could you pls tell us the Pallet size you needs?Then we could advice the most fitting model for you.
2>Which industry did this block machine usually be used in?
Answer: Muticelullar bricks,Standard bricks,etc
3>How to use the block machine?
Answer: We will send the operating manual to you after you purchase the machine.
4>How about the after sale service of block machine?
Answer: 1 year guarantee for the whole machine (without the spare parts)We also sell the parts ,if you need them,just tell us.

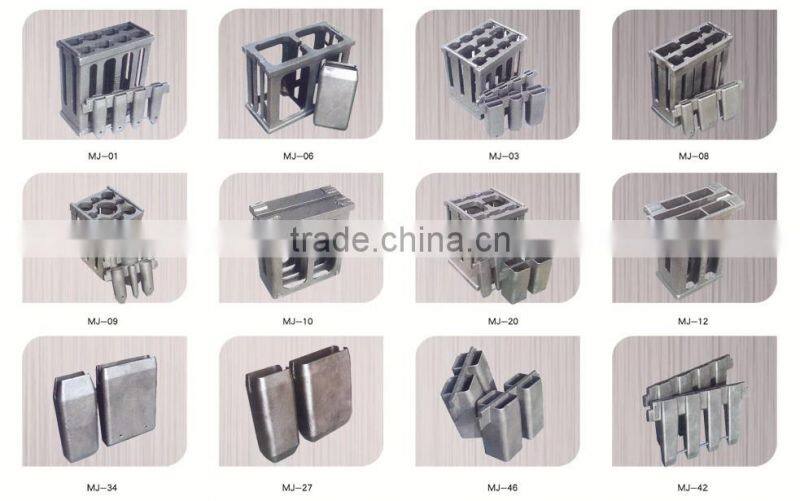

You can made a lot of brick/block by different mould
PVC Pallet for Unburned Bricks
Pre-sales Service:
- Introduce the company, products and technology;
- Provide, analyze and explain consultation on construction technology;
- Suggest the best products for customers according to their demands.
On-sales service:
- Follow up the contracts and organize the relevant departments to review the contracts;
- Solve the problems in case of any uncleanly prescribed terms or items that require mutual negotiation.
- Follow up the production and delivery and the production progress of outsourcing parts according to the contracts.
After-sales service:
- Provide one-year free warranty and life-long service;
- Assist users to formulate production formula;
- Set up completed users’ data and provide a better follow-up service;
- Supply spare parts and moulds;
- Provide online interaction platform with customers on the internet and remove troubles for customers at any time;
- Provide feedback system for customers on the internet;
- Update the latest industrial information and relevant data of the company.
After-sales Service Hot Line: 0595-22116668 13395061777
Website:
E- mail:
Tel:+86- 18959877576
WhatsApp,Wechat :18060007703
Fax: 0595-22526668
Skype:Rita QQ:2635334726
