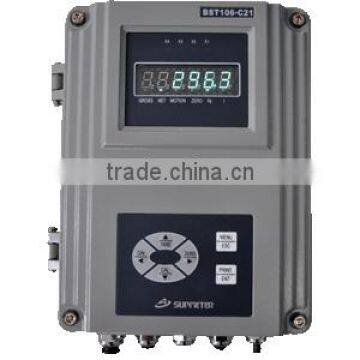

Multi-Function Weighing Controller

Suitable for Hopper Scale, Platform Scale, Ration Feeding Scale with Single-material & Single-speed Feeding, Ration Batching Scale with 3-Material & Double-speed Feeding and Axle Weighing Scale.

² EMC design with high anti-jamming capability, suitable for industrial environment.

² Model LED: 6-bit red LED digit display screen for English character and digit display; 64-segment LED for percent display.

² Model VFD: 6-bit green VFD digit display screen for English character and digit display.

² Menu&Shortcut mode operation with key tone.

² 24-bit High-precision and high-speed Σ-A/D conversion module with 130,000 internal code [AD value] used and 200Hz sampling frequency.

² Special filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.

² Max. Connection Quantity: 8 Loadcells (350Ω).

² Data Calibration and Load Calibration available.

² Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing functions available.

² 1 Optional and definable analog signal output [AO: 4~20mA].

² 3 Normally open switch inputs [DI] and 4 normally open relay or transistor switch outputs [DO].

² 2 Optional communication ports for linking to IPC/PLC, remote display&operation terminal, serial printer and wireless module.

² Support industry configuration software, e.g. iFix.

² Hopper Weighing Report, Ration Feeding&Batching Report and Axle Weighing Report can be printed.

² With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations.
