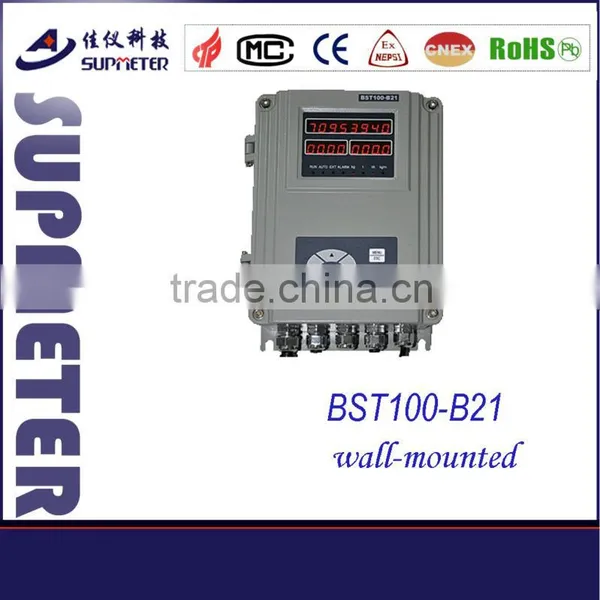

Help CenterWall-mounted Indicator for Belt Convery
Related Products
Main Features:
² Suitable for Ration Belt Weighfeeder with Ration Flow Feeding & Ration Weight Batch Control.
² EMC design with high anti-jamming capability, suitable for industrial environment.
² 128×64 dots LCD display screen with 7 background colors for Chinese/English character display and 8-bit LED for digit display [Model Panel-mounting].
² Can be set to Chinese or English character display.
² Menu&Shortcut mode operation with key tone.
² High-precision Σ-A/D conversion technology and broad-range speed pulse input circuit.
² Max. Connection Quantity: 8 Loadcells (350Ω).
² Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing functions available.
² Auto Zero Tracking, Speed Calibration and Belt Length Calibration functions available.
² 1 Optional „Flow Setpoint analog signal input [AI: 4~20mA].
² Max.3 definable „Flow/Control Current /…analog signal outputs [AO: 4~20mA].
² Quick and steady PID for ration feeding control available.
² 3 Definable normally open switch inputs [DI] and 4 definable normally open relay or transistor switch outputs [DO].
² The feeder and belt weigher can be started and stopped by DI&DO signals.
² 1 „Totalized Weight High-speed Pulse output [PO].
² 2 Optional communication ports for linking to IPC/PLC, remote display&operation terminal, serial printer and wireless module.
² Support industry configuration software, e.g. iFix.
² Weight Records per shift/day/month of a year can be queried and printed.
² With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations.
