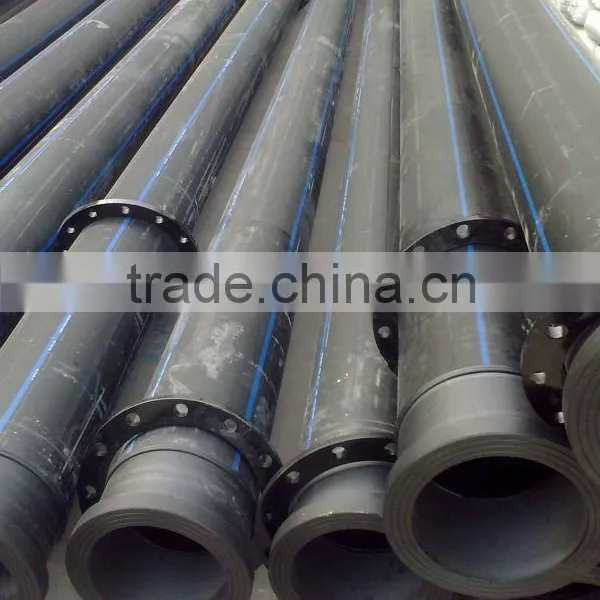

Help CenterHDPE Dredging Hose Low Price
Related Products
OEM permitted HDPE Pipe for dredging
Description:
HDPE pipe is an ideal replacement of "plastic instead of steel" products. In recent years at home and abroad in various fields, it has been widely used.
The product is of high strength, light weight, no corrosion, resistance to negative pressure, health, non-toxic, easy installation, etc .And also has good low temperature resistance and anti-aging performance (The lowest temperature is -70℃). The maximum working pressure can reach 1.6 MPa. The HDPE Pipe now has widely used in pipeline system.
Specification:
OD(mm) |
Wall Thickness (mm) |
||||
PN0.6MPa |
PN0.8MPa |
PN1.0MPa |
PN1.25MPa |
PN1.6Mpa |
|
32 |
- |
- |
- |
- |
3.0 |
40 |
- |
- |
- |
- |
3.7 |
50 |
- |
- |
- |
- |
4.6 |
63 |
- |
- |
- |
4.7 |
5.8 |
75 |
- |
- |
4.5 |
5.6 |
6.8 |
90 |
- |
4.3 |
5.4 |
6.7 |
8.2 |
110 |
4.2 |
5.3 |
6.6 |
8.1 |
10 |
125 |
4.8 |
6 |
7.4 |
9.2 |
11.4 |
140 |
5.4 |
6.7 |
8.3 |
10.3 |
12.7 |
160 |
6.2 |
7.7 |
9.5 |
11.8 |
14.6 |
180 |
6.9 |
8.6 |
10.7 |
13.3 |
16.4 |
200 |
7.7 |
9.6 |
11.9 |
14.7 |
18.2 |
225 |
8.6 |
10.8 |
13.4 |
16.6 |
20.5 |
250 |
9.6 |
11.9 |
14.8 |
18.4 |
22.7 |
280 |
10.7 |
13.4 |
16.6 |
20.6 |
25.4 |
315 |
12.1 |
15 |
18.7 |
23.2 |
28.6 |
355 |
13.6 |
16.9 |
21.1 |
26.1 |
32.2 |
400 |
15.3 |
19.1 |
23.7 |
29.4 |
36.3 |
450 |
17.2 |
21.52 |
26.7 |
33.1 |
40.9 |
500 |
19.1 |
23.9 |
29.7 |
36.8 |
45.4 |
560 |
21.4 |
26.7 |
33.2 |
41.2 |
50.8 |
630 |
24.1 |
30 |
37.4 |
46.3 |
57.2 |
710 |
27.2 |
33.9 |
42.1 |
52.2 |
- |
800 |
30.6 |
38.1 |
47.4 |
58.8 |
- |
900 |
34.4 |
42.9 |
53.3 |
- |
- |
1000 |
38.2 |
47.7 |
59.3 |
- |
- |
Features:
(1) Ultra high molecular weight
(2) Good impact resistance.
(3) Excellent abrasion resistance: 15 times more than steel pipe.
(4) Corrosion resistant.
(5) Low flow resistance.
(6) Easy maintenance and installation.
(7) Anti-aging.
(8) Can resistance low temperature of -70 °C
(9) Low moisture absoption.
(10) Low coefficient of friction and good self-lubrication.
(11) The maximum work pressure can be 2.0MPa
Applications:
Mining-above and below ground installations.
Slurry Lines-to convey suspended solid matter in quarries and mine.
Industrial and Chemical-to transport aggressive fluids
Submerged Pipelines-for cable ducting, water and sewerage.
Water Supply.
Sewerage, Effluent and Waste Water.
Gas Distribution.
Trenchless Construction-for water supply, sewers and gas.
Images:
