500kg crawler mini dumper
Product Feature
13HP Briggs&Stratton Engine
with tracks
Stand on operating
695mm width only,can enter into narrow space
500kg load capacity
Self-loading bucket for choice

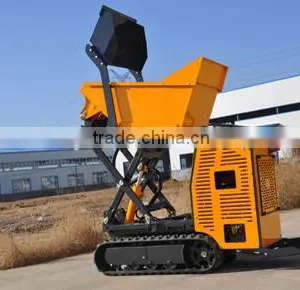

High-lifting device for choice
CE Certificated

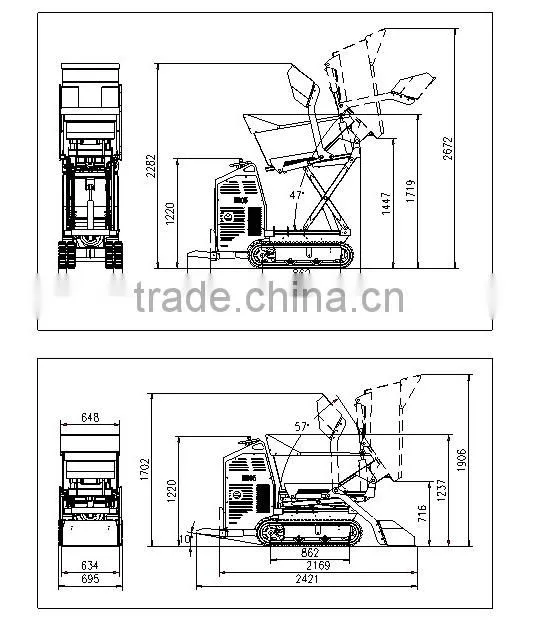

Technical Parameters The hydraulic mini dumper made in China can satisfy the need of every type of user,
with even more reduced dimension,
but with high performance
Can be used in home,garden,small construction,waste disposal,landscaping,mining
| Total Height (H) | 1220mm |
| Max Lifting Height | 1719mm |
| Max Dump Height | 1447mm |
| Dump Angle | 57degree |
| Wheelbase | 515mm |
| Total Length without self-loading bucket | 2021mm |
| Total Length with self-loading bucket | 2421mm |
| Departure Angle | 10degree |
| Axles base | 862mm |
| Total Width | 695mm |
| Min Turning Radius R | 820mm |
| Engine (Briggs&Stratton) | Rated Power | 9.6Kw (13HP) |
| Rated Speed | 3000 rpm | |
| Fuel | gasoline | |
| Noise | <=80 | |
| Hydraulic Pressure | 16Mpa | |
| Flow Rate | 20L/min | |
| Hydraulic oil tank volume | 19.4L | |
| Load capacity | 500kg | |
| Hopper capacity | 0.31cbm | |
| Self-loading bucket capacity | 0.04cbm | |
| Speed | 0-3.5km/h | |
| Operating weight | 600kg or 800kg |
|

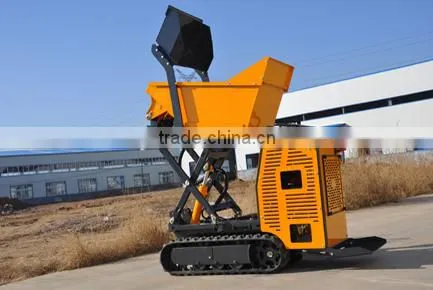

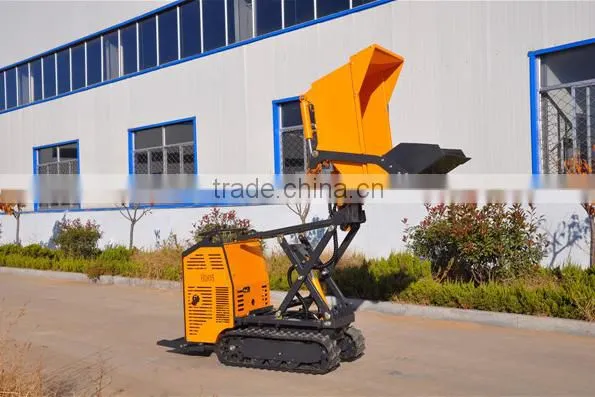

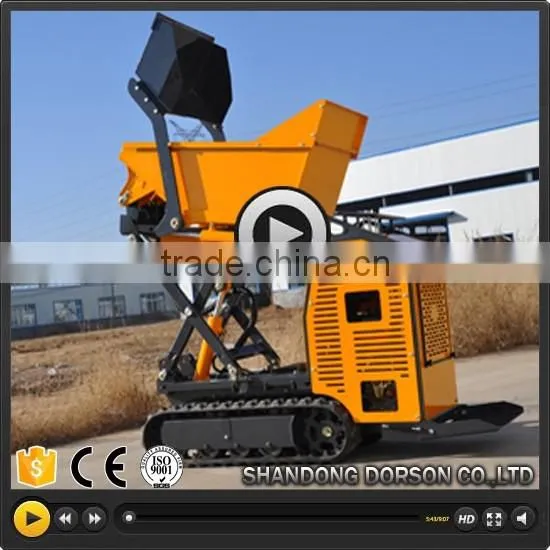

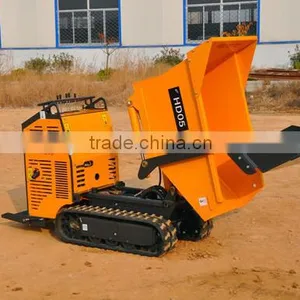

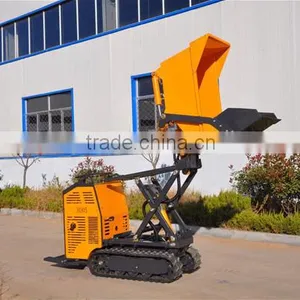

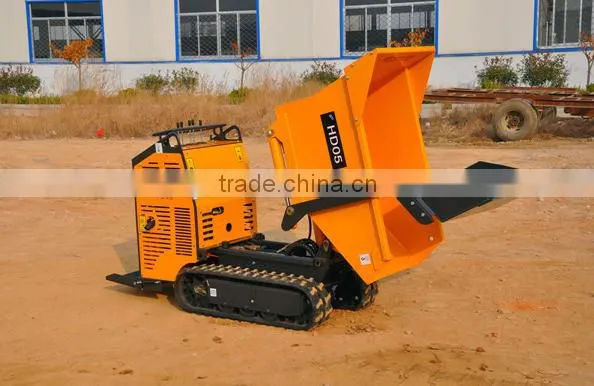

Product Photo

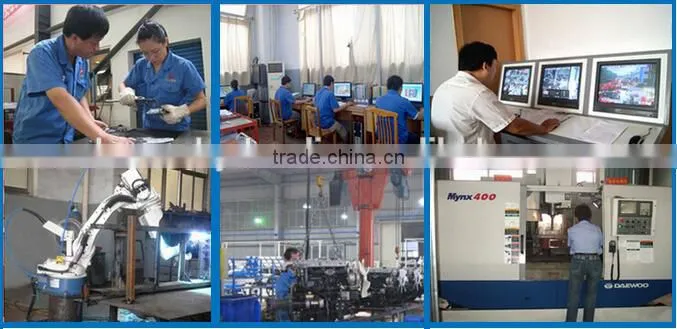

working plant

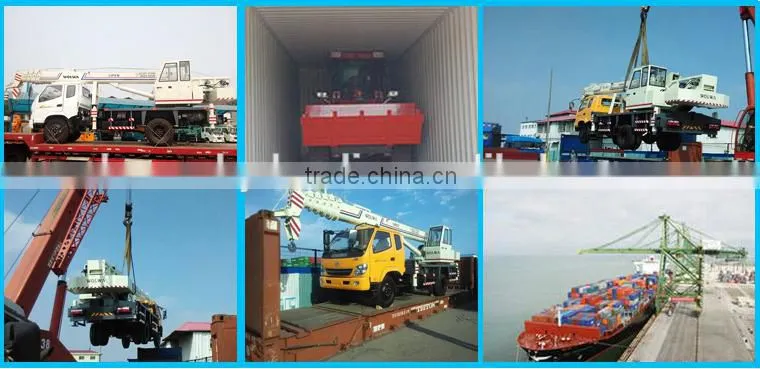

Shipping
Service
1- Any questions would be replied within 24 hours, Any quality problems caused by design and manufacturing would be solved in time, warranty is strictly based on the contract terms.
2- when there is demand for services, make comments within 12 hours of treatment services in place within 24 hours, special issue no more than 72 hours. Before the fault is not excluded, staff will maintain communication with customers.
3- There are plans to establish a service network continueing to provide users with the perfect service and timely and adequate supply of spare parts.
4- beyond the parts warranty period or result from the use, maintenance, improper adjustment of other non-manufacturing problems caused the malfunction, financed the purchase by the user related parts, Shun company free of charge to users fix support.
5- sales tracking: The company sold tractor series, we will do long-term after-sales tracking service, let us use the excellent services ensure that every customer satisfaction with the product can be used on.
6- Professional maintenance: We have a professional maintenance personnel, provide warranty free parts, according to customer requirements, professional standards for their maintenance, excluding tractors fault, dedicated customer Heart, satisfied.
7- strictly abide by the provisions of international warranty contract, fulfill due obligations.
