Home > Products > Fiber Cement Siding > CE, AS/NZS Certification Durable Primed woodgrain fiber cement siding panels
CE, AS/NZS Certification Durable Primed woodgrain fiber cement siding panels
- 40000 Piece / Pieces per Month
- Shanghai
- T/T
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | woodgrain fiber cement siding panels | Model Number: | woodgrain fiber cement siding panels |
| Type: | Fiber Cement Boards |
Product Description
Wood Grain Fiber Cement siding | Cement Fiber Siding
(Siding board,Wood Grain board,Siding panel,Wood grain panel, Fiber Cement board,Fiber cement exterior siding)
Fiber cement siding (or "fibre cement cladding" in the UK and Australasia) is a building material used to cover the exterior of a building in both commercial and domestic applications. Fiber cement is a composite material made of Quartz sand, Portland cement and cellulose fibers.
Usage

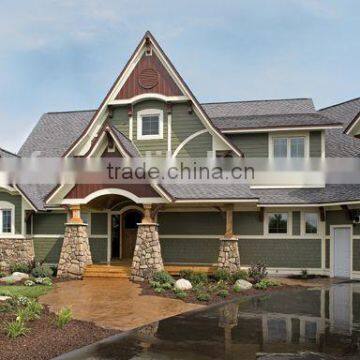

In appearance fiber cement siding most often consists of overlapping horizontal boards, imitating wooden siding, clapboard and imitation shingles. Fiber cement siding is also manufactured in a sheet form and is used not only as cladding but is also commonly used as a soffit / eave lining and as a tile underlay on decks and in bathrooms. Fiber cement siding is not only used as an exterior siding, it can also be utilized as a substitute for timber fascias and bargeboards in high fire areas.
Specifications
Sheet sizes vary slightly from manufacturer to manufacturer but generally they range between 2400 – 3660 mm in length and 900 –1220mm in width (600 & 450 mm increments). This manufactured size minimizes on-site wastage as residential floor, wall and roof structures lay structural members at 450 or 600 centres.
When used as siding boards, widths between 170mm and 300mm (5.25 inch to 12 inch) are available.[1]
Fiber cement thicknesses vary between 4.5-18mm and also vary in density – the lower density resulting in a fibrous rough edge when cut and the higher density having a cleaner smoother edge when cut.
Thermal resistance and sound transmission vary greatly between fiber cement products. Fiber cement sheet products rate poorly in thermal resistance and sound transmission and separate wall insulation is highly recommended. Generally the thicker and denser the product the better resistance it will have to temperature and sound transmission.
Installation
Fiber cement cladding is a very heavy product and requires two people to carry the uncut sheets. Thin fiber cement cladding is fragile before installation and must be handled carefully; it is prone to chipping and breakage if improperly handled.
Once the product is cut it may again require two people to install – one to hold the sheet flush against studwork and the other to nail the product in place.
Cutting fiber cement cladding sheeting usually requires a mechanised saw or metal hand shears and sheets can be cut to size in three ways:
- Thinner sheets can be scored with a heavy duty cutting blade and snapped
- Purpose made "fibro cutter" (an Australian term)
- Thicker and denser sheets require cutting by a mechanical saw using a diamond blade (Masonry blade)
- 1/8 spacing required between end-joints (cladding seams) later to be filled with caulking made for fiber cement siding
- Metal 6"x6" step flashing required behind overlapping seams to prevent sheathing damage from water
- Hot dipped Galvanized roofing nails to hang fiber cement siding
Some caution must be exercised to properly ventilate areas where fiber cement siding (FCS) is being cut; long-term exposure to the silica dust generated during the installation process can cause silicosis.
Fiber cement cladding can be painted before or after installation. (For areas of exposure, weatherproof paint must be used.) Once the product is fixed the joints are usually covered with timber battens and the entire wall surface is painted.
Durability
The external cladding products require very little maintenance once installed and painted. The thicker/denser fiber cement products have excellent impact resistance but the thinner less dense products need to be protected from impact. Compared to wooden siding, fiber cement is not susceptible to termites or rot.[2]
Fiber cement siding using base board materials that have been classified, by accredited laboratories, as Category A according to BS EN 12467: 2004 Fiber-cement flat sheets - Product specification and test methods are sidings which are intended for applications where they may be subject to heat, high moisture and severe frost.
Fire resistance
Fiber cement cladding is a non combustible material which is widely used in high bush fire prone areas throughout Australia .
While the best possible Reaction to Fire Classifications are A1 (construction applications) and A1Fl (flooring applications) respectively, both of which mean "non-combustible" according to European standard EN 13501-1: 2007, as classified by a notified laboratory in Europe, some fiber cement boards only come with Fire Classification of A2 (limited combustibility) or even lower classifications, if they are tested at all.
Safety
As mentioned previously, long-term exposure to silica dust generated by cutting fiber cement siding during installation can lead to silicosis and other lung diseases among workers.[3] Researchers at the National Institute for Occupational Safety and Health (NIOSH) confirmed these findings, showing that many of the silica dust particles are in the respirable fraction, able to penetrate the deepest parts of the lung.[4] Laboratory tests performed by cutting fiber cement siding within an isolated chamber showed that by connecting a regular shop vacuum to a circular saw, exposures to silica dust produced by the cutting can be reduced by 80-90%.
Alternatives
Competitors to fiber cement cladding include products made from vinyl, polyvinyl chloride, wood composite products (such as hardboard and Masonite) and aluminum siding
Features:
1)100% asbestos-free environment-friendly ;
2) fireproof, waterproof,mousr-resistance,insec-resistance,noise-insulation,heat-insulation,antifrezing ;
3) fire-resistant, termite-proof and low-maintenance
3) light wight,hight strength,corrotion resistance,and durability;
4) variety of colors and good appearance;
5) convenient,fast installtion (it can be sawed,laned,naildand drilled);
Product specification:
Density: 1400KG/m3
Dimenssion: 8mm*200mm*2440mm/3000mm, other size can be availbel as your requirment.
Modulus of Rupture: 16 MPa(EMC)
Thickness Tolerance: ±0.2 mm
Modulus of Elasticity: 7100 ± 500 MPa(Wet)
Water Absorption: 35%
Moisture Content: 15%
Coefficient of thermal conductivity: 0.3W/(m.K)
Frost-resistance durative: 30
High temperature durative: ±120
FC FIBER CEMENT BUILDING PRODUCT COLLETCTION:
- FC Fireproof and Blast Resistant Board
- FC Anti-static Raised Access OA Floor
- FC Colored Fiber Cement Board
- FC Wood Grain Fiber Cement Siding
- FC Calcium Silicate Board
