supply small specialized custom-made self loading mobile concrete mixer for sale
Product Introduction
Mixing drum capacity 6.1 m3, discharge opening height 1.8meters
Output volume of production capacity: 1.2 m3 / cans, 4.8 cubic meters/hour
Wuxisida engine 490 boost, water-cooled, 4 cylinder / 4.836 litres, 48 kw / 2400 RPM
Yunnei 490 boost, water-cooled, 4 cylinder / 4.836 litres, 48 kw / 2400 RPM
Transmission way full hydraulic pressure drive, 4 wheel drive, wheel steering, domestic axle
Walking speed 2 km/hour at low speed, high speed 10-20 km/hour
Cab drive on the left, turn, prevent falling object type bridge, the side loading shovel
Hydraulic system of domestic hydraulic system, closed loop, used in hydraulic transmission and cylinder rotate
Four lever hydraulic electric joystick
Bucket 270 litres, hydraulic valve
Chute hydraulic adjustment point of view, in order to increase the length of the discharge
Hydraulically driven self-priming pump, washing with high pressure water pump vehicle, electronically controlled self-priming pump, take 100 kg water per minute
Barely able to brake brake, the double independent circuits
Tire construction machinery tires 12-16.5
24 v power system
Diesel oil tank: 35 litres, hydraulic tank: 120 liters
Weight 3200 kg
Overall dimensions length: 5.6 meters wide, 1.9 meters high, 2.6 meters
Measuring electronic weighing, water meter
Specification
Mixing system |
Drum Capacity 6.1m³,height of 1.9m discharge |
Production Capacity |
Concrete output:4m³/can |
Engine |
Wuxi SD4108, 85KW,turbo charged engine |
Transmission |
280 Hydraulic torque converter fission,4 wheel drive, two wheel steering,10T hydraulicwheel edge drive axle |
Walking Speed |
Low speed 2km/h, high speed 26km/h |
Cab |
Left-seat drive, anti-tilt ,FOPS Cab, front loading shovel |
Hydraulic system |
hydraulic systems, open loop for hydraulic transmission and drum rotation |
Operating lever |
Electronically controlled four- speed joystick |
Bucket |
700 liters, hydraulic valve |
Chute |
Hydraulic adjustable angle ,for increasing the discharge length |
Water supply system |
Hydraulic driven Auto-priming pump, washing vehicle with high pressure water pump.24V Electronically controlled Auto-priming pump with 2*400L water pump |
Brakes |
Air brake brakes ,dual independent circuits |
Tire |
1670-20 construction machinery tires |
Power system |
24V |
Fuel tank |
Fuel tank 118L.Hydraulic oil tank 118L |
Weight |
7100kg |
Dimensions |
The length is 7.01M,after disassembling could pack in 40HQ container |
Measure |
Electronic weighting, water measuring control ,formula controlled |
Other |
Driving images |

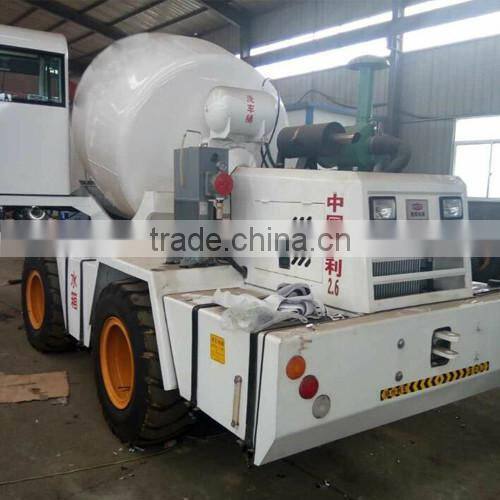

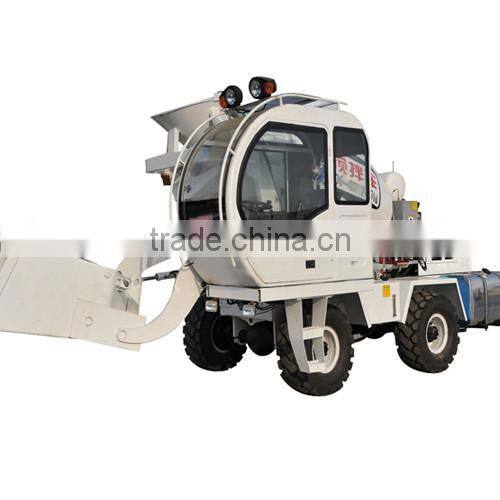

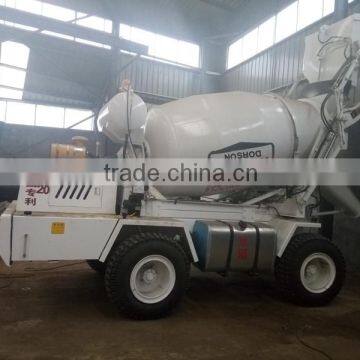

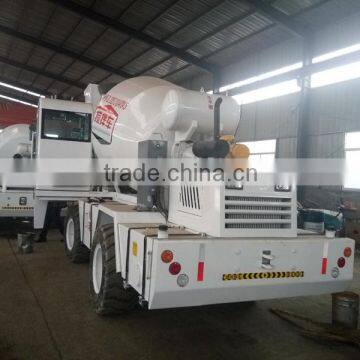

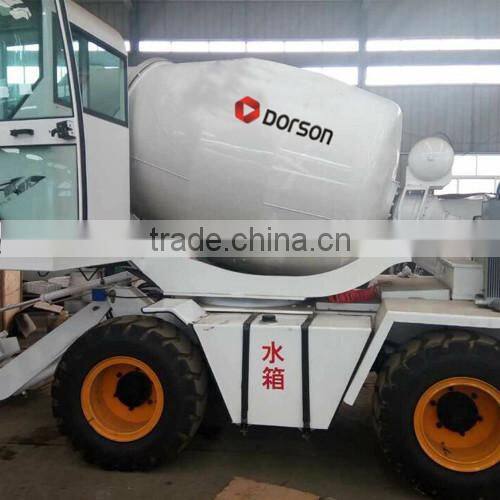

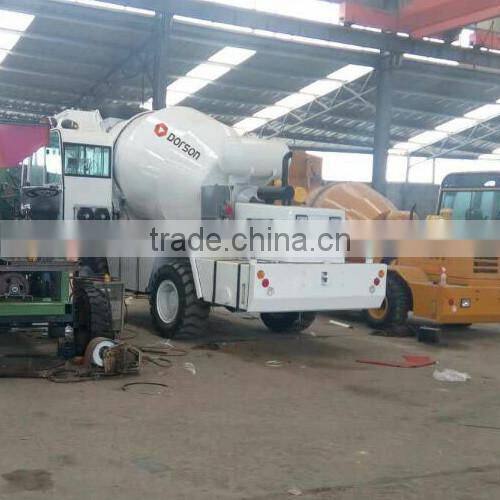

Figure Photos

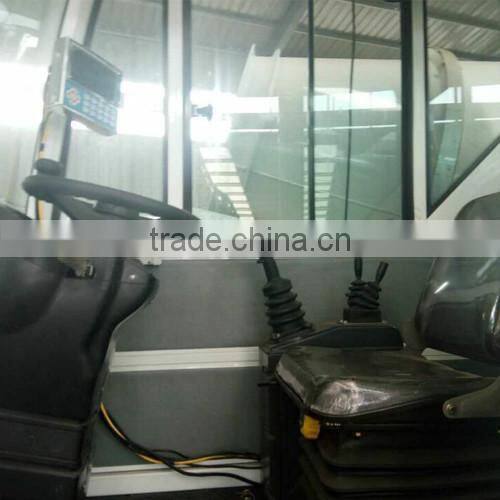

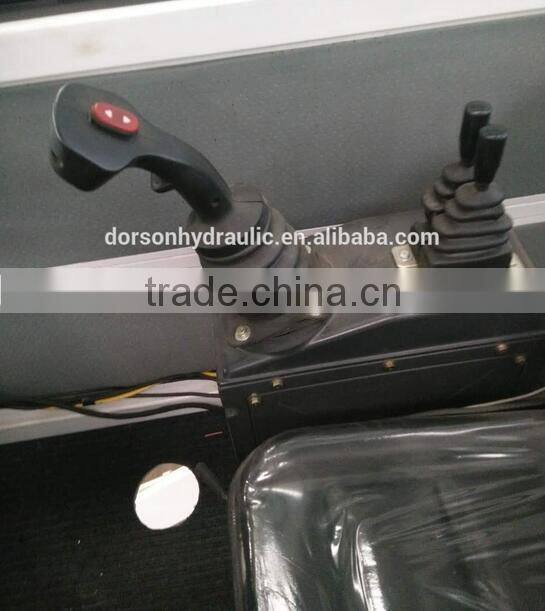

detial Photos

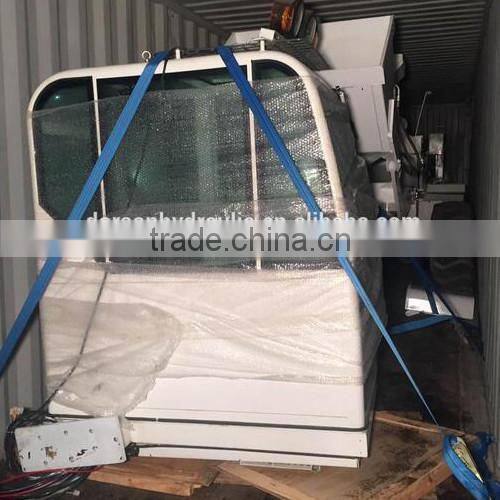

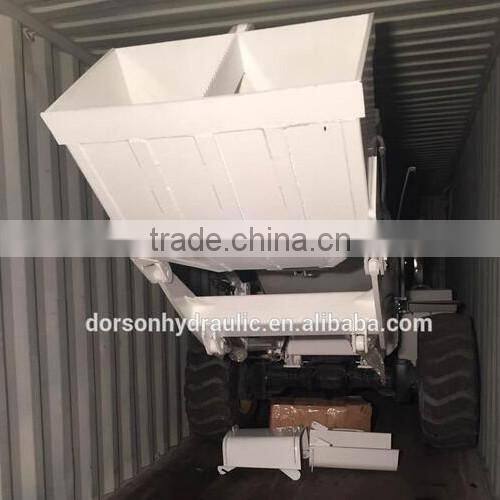

Packing Photos
Qualification&Certification
Customer Visting
