Home > Lights & Lighting > LED Interior Lighting > LED Panel Light > OKT Lighting 2x2FT SELECTED LED FLAT PANEL

OKT Lighting 2x2FT SELECTED LED FLAT PANEL

Name: OKT Lighting 2x2FT SELECTED LED FLAT PANEL
Brand: OKT LIGHTING
SKU: 114269565

OKT Lighting 2x2FT SELECTED LED FLAT PANEL thumbnail-1

OKT Lighting 2x2FT SELECTED LED FLAT PANEL thumbnail-2

OKT Lighting 2x2FT SELECTED LED FLAT PANEL thumbnail-3

OKT Lighting 2x2FT SELECTED LED FLAT PANEL thumbnail-4

OKT Lighting 2x2FT SELECTED LED FLAT PANEL thumbnail-5

OKT Lighting 2x2FT SELECTED LED FLAT PANEL thumbnail-6

OKT Lighting 2x2FT SELECTED LED FLAT PANEL photo-1

OKT Lighting 2x2FT SELECTED LED FLAT PANEL photo-2

OKT Lighting 2x2FT SELECTED LED FLAT PANEL photo-3

OKT Lighting 2x2FT SELECTED LED FLAT PANEL photo-4

OKT Lighting 2x2FT SELECTED LED FLAT PANEL photo-5

OKT Lighting 2x2FT SELECTED LED FLAT PANEL photo-6

US$ 1 - 80 MOQ: 4 Pieces

Key Specifications

Get Latest Price

LED Light Source:

SMD2835

Warranty(Years):

Input Voltage(V):

120-277V

Contact Supplier Request Quote Chat Now

Shenzhen OKT Lighting Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source SMD2835

Warranty(Years) 5

Input Voltage(V) 120-277V

Lamp Power(W) 40

Lamp Luminous Flux(lm) 4192LM

Lamp Luminous Efficiency(lm/w) 100

Color Temperature(CCT) Pure White

Working Temperature(℃) 20, 50

Working Lifetime(Hour) 50000

Lamp Body Material Aluminum

IP Rating IP44

Certification Energy Star, UL

Place of Origin Guangdong, China

Brand Name OKT LIGHTING

Model Number SP22-DM-XXE,SP22-DH-XXE,SP22-DM347-XXE

2x2 edge lit led panel light for office/kitchen ul overhead lighting

Product Description

Specification

Model	Item NO.	Input Power	Luminous Flux	Input Voltage	Certificate
2x2ft	SP22-DM-XXE	40W	4192LM	100-277V AC	UL,cUL, DLC
2x2ft	SP22-DH-XXE	52W	5299LM	100-277V AC	UL,cUL, DLC
2x2ft	SP22-DM-XXE-347	42W	4452LM	347V-480V AC	UL,cUL

Family Products

Item	Input Power	Luminous Flux	Input Voltage	Certificate
2x4ft	52W	5140LM	100-277V AC	UL, cUL, DLC
2x4ft	65W	6204LM	100-277V AC	UL, cUL, DLC
2x4ft	63W	6300LM	347-480V AC	UL, cUL
1X4ft	40W	3719LM	100-277V AC	UL,cUL,DLC
1x4ft	52W	5071LM	100-277V AC	UL, cUL,DLC

Detailed Images

Product Display for edge lit led panel light

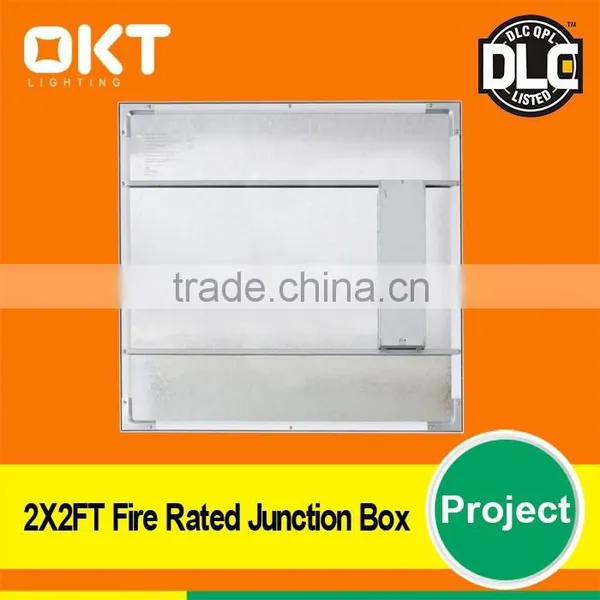

2. Back Side

3. Suspending installation

4. Surface mounted kit for edge lit led panel light

Advantages

Why Choose OKT 2x2 edge lit led panel light ?

The OKT 2x2 edge lit led panel light have approved DESIGNLIGHTS CONSORTIUM (DLC) and UL, which reaches 91lumens per watt in 100~277 VAC or 347-480 VAC Input. This edge lit led panel light included UL Recognized constant current driver and designed for new construction applications or retrofitting existing fluorescent troffer light fixtures.

UL and cUL Listed, DLC Listed, LM79 Report and Lighting Facts Available
0-10v Dimming Available
Trim Color Options: White or Silver
Installation: Recessed, surface mounted kit, suspension
Suitable for Damp locations

UL Driver MTBF> 50,000 Hours

Comparison

OKT edge lit led panel light VS Fluorescent Tube for school in Cadana.

LM79 Report

This OKT led panel light ul overhead lighting were tested with no seasoning which made in compliance with IES LM-79-08.
It was operated at rated voltage or at voltage required by manufacturer.
The ambient temperature of the sample was maintained at 25°C±1°C during measurement.
And relative humidity is less than 65%.

Drawings

Item	Outer Size	Light-Emitting Area	Thickness	Height
2x2ft led panel light ul overhead lighting	23.7"x23.7"	21.34"x21.34"	0.47"	2.13"

Project

Projects

OKT 2x2 edge lit led panel light are capable of retrofit application to existng fluorescent fixtures or new architectural. Many OKT 2x2 edge lit led panel light installed around the North American, especially united State, such as:

Medium in USA;
Seven Eleven in USA;
Supermarket in USA:
School in Canada.

Certifications

Certifications

1. We are focus on American Maret, which all edge lit led panel light are listed on UL, CUL, DLC, FCC, Lighting Facts.

2. We're available to provide UL, CUL, DLC Multiple List and Private Label for led panel light ul overhead lighting if needed.

Technology

Shenzhen OT Lighting understands “QUALITY IS LIFE”. our staff keep this conception as their duty. So every production procession is made according to ISO9001 Quality Certification and ISO14001 Environment Management System. What's more, each operator must be well trained before entering workshop. Meanwhile, our quality control team and R&D team will check and test the semi-finished products and finished products by many kinds of instruments carefully all the time.

1. OKT applies some technical equipments, such as SMT, Auto Aging Line, Integrating sphere, Drop Tester, Transport Simulation Tester during our led panel light ul overhead lighting DLC certified production process;

2. Those equipments make us deliver qualified products and offer more than 5 years' warranty for edge lit led panel light DLC certified.

FAQ

FAQ

Q1: How to install your edge lit led panel light ?

A: Normally we have three installation methods, that is recessed, suspending and surface mounted, see belows details:

Model	Installation Method
2x2ft led light panels	Recessed, Suspension, Surface Mounted
2x4ft dimmable square led light panels	Recessed, Suspension
1x4ft square flat led light panels	Recessed, Suspension

Q2: We are the wholesaler, can you offer Multiple List and Private Label according to our requests?

A: YES. We will help you to handle ML process while our designer can design private label as required.

Q3: Which CCT have passed DLC?

A: 4000K and 5000K 2x2 edge lit led panel light

Q4: Can you offer cheap shipping cost to import to our country?

A: we have long-standing forwarder which can offer the most competitive price for your reference.Normally, For small order, express will be best.And for bulk order, it is better to by sea but need much time.

Q5: How about your packing?

A: We have two packing solutions for your choices:

Packing Options	PCS/CTN	Carton Size	G.W
Option 1 for Ultra slim led panel light	2PCS/CTN	1297017cm	23KG
Option 2 for Ultra slim led panel light	4PCS/CTN	1297017cm	35KG

Q6: What quality you can offer?

A: We offer 5 Years Warranty;

situation 1	Under the terms of this warranty, if the product has a failure occurs under normal usage within warranty period, OKT LIGHTING will provide free new products based on the proof-documents.
situation 2	If failure or damage due to incorrect operation, wire connection, or anything other do not follow our instruction, OKT lighting will provide paid maintence within warranty period.

More concerned for OKT 2x2 edge lit led panel light, pls do not hesitate to inquiry now!
