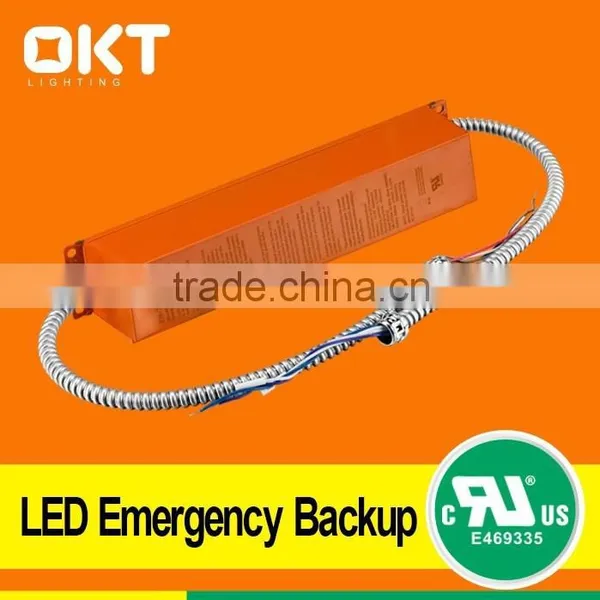

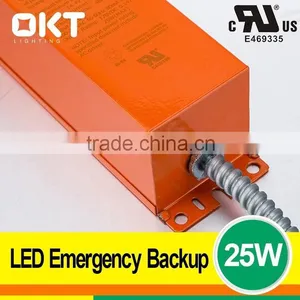

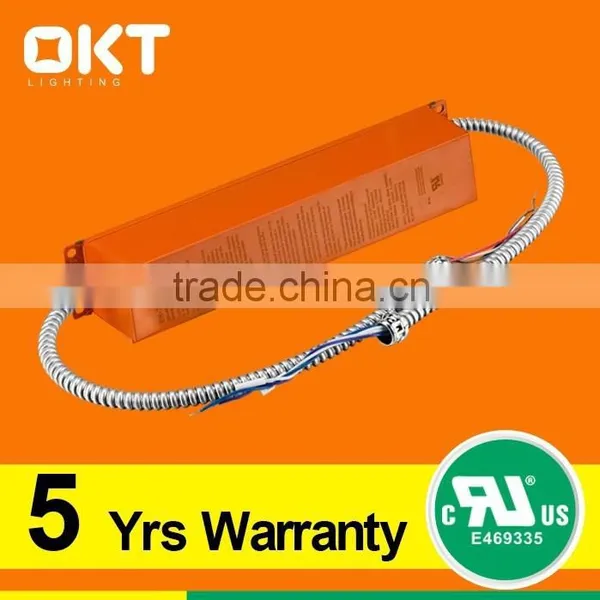

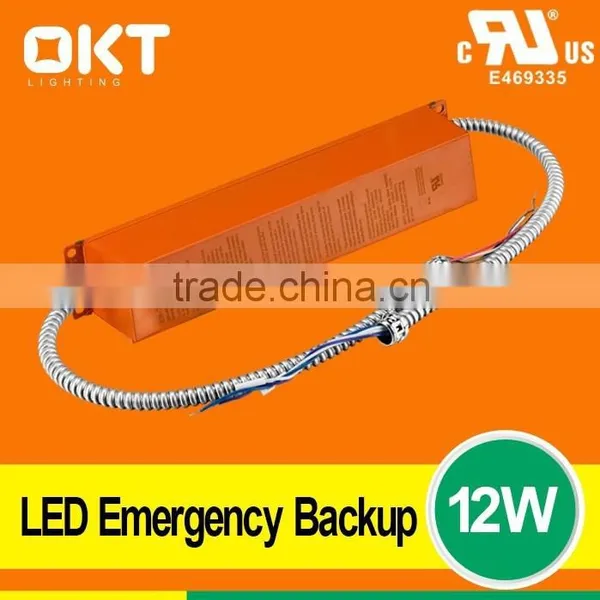

UL Listed High&low Power Led Emergency Backup With Red Light Test Switch

UL Listed High&low Power Led Emergency Backup With Red Light Test Switch thumbnail-1
UL Listed High&low Power Led Emergency Backup With Red Light Test Switch thumbnail-2
UL Listed High&low Power Led Emergency Backup With Red Light Test Switch thumbnail-3
UL Listed High&low Power Led Emergency Backup With Red Light Test Switch thumbnail-4
UL Listed High&low Power Led Emergency Backup With Red Light Test Switch thumbnail-5
UL Listed High&low Power Led Emergency Backup With Red Light Test Switch thumbnail-6
UL Listed High&low Power Led Emergency Backup With Red Light Test Switch photo-1
UL Listed High&low Power Led Emergency Backup With Red Light Test Switch photo-2
UL Listed High&low Power Led Emergency Backup With Red Light Test Switch photo-3
UL Listed High&low Power Led Emergency Backup With Red Light Test Switch photo-4
UL Listed High&low Power Led Emergency Backup With Red Light Test Switch photo-5
UL Listed High&low Power Led Emergency Backup With Red Light Test Switch photo-6
US$ 25 - 45 MOQ: 6 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OKT Lighting
Model Number:
EH-25170-XXU
Contact Supplier Request Quote Chat Now
Shenzhen OKT Lighting Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name OKT Lighting
Model Number EH-25170-XXU
Output Power Other, 25w, 8W 12W 18W 25W
Input Voltage 100-277V AC, 100-277V AC
Output Voltage 170V DC, < 48V DC or 170V DC

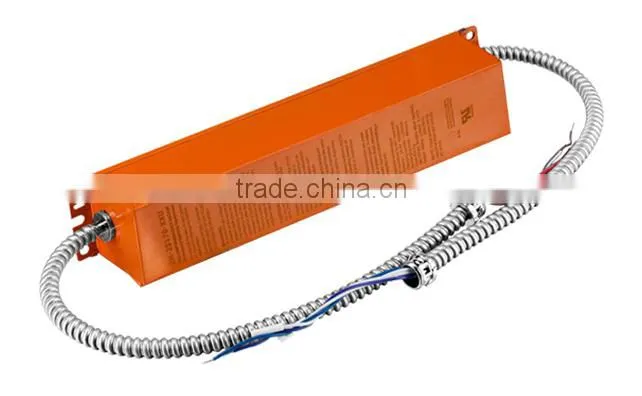

UL listed high&low power led emergency backup with red light test switch



Product Description



 UL listed high&low power led emergency backup with red light test switch

Description

The OKT led emergency backup is UL,CUL Listed that be used for both normal and emergency operation.the led emergency backup switches to the emergency mode and operates for 90 minutes after blackout which including a battery,charger and converter circuit in a single can. It is available in different mounting configurations for individual fixture requirements.



Specification

for led product with external driver:

Model Output Power Max.Connected Load Input Voltage Emergency Time  Output Voltage
EL-0848-XX 8W (max) 0.5 A

100-277VAC/

120-250V

 >90 Minutes 12-48V DC
EL-1248-XX 12W (max) 0.75A

100-277VAC/

120-250V

 >90 Minutes 12-48V DC
EL-2548-XX 25W (max) 1.38 A

100-277VAC/

120-250V

 >90 Minutes 12-48V DC


for led product with inernal driver:

Model Output Power Input Power Input Voltage Emergency Time  Output Voltage
EH-18170-XX 18W (max) 6W

100-277VAC/

120-250V

 >90 Minutes 170V DC
EH-25170-XX 25W (max) 6W

100-277VAC/

120-250V

 >90 Minutes 170V DC

UL listed high&low power led emergency backup with red light test switch



Advantages

Dial the code to suitable voltage of luminaire

Includes test switch and charge indicator accessory

for use with switched or non switched fixtures

UL and CUL Listed

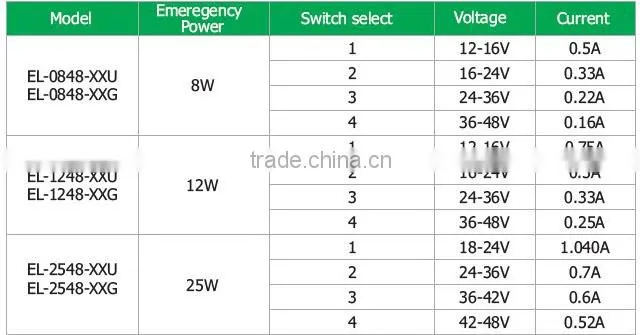

Form for dial the code to suitable rated voltage of luminaire

UL listed high&low power led emergency backup with red light test switch





Size

 UL listed high&low power led emergency backup with red light test switch



Model 8W 12W 18W 25W
A 55.4MM 55.4MM 69MM 69MM
B 55MM 55MM 71MM 71MM
C 264.6MM 264.6MM 377MM 377MM
D 69MM 55.4MM 69MM 69MM
E 22.2MM 22.2MM 222MM 22.2MM



How to install

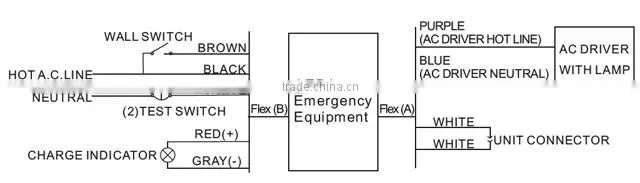

Typical Wiring Diagram for LED emergency bcakup with internal led product

UL listed high&low power led emergency backup with red light test switch

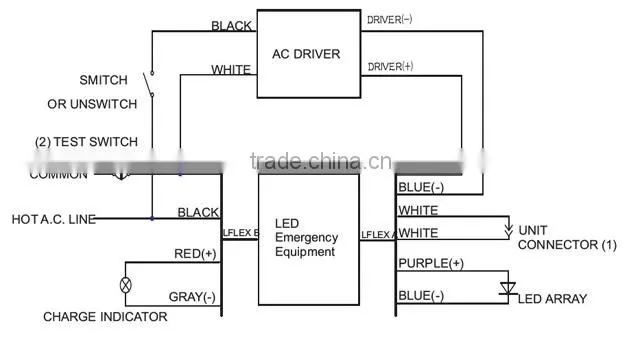

Typical Wiring Diagram for LED emergency bcakup with external led product

UL listed high&low power led emergency backup with red light test switch



PLS CONTACT SALES FOR MORE DETAILS ABOUT THIS led emergency backup!
