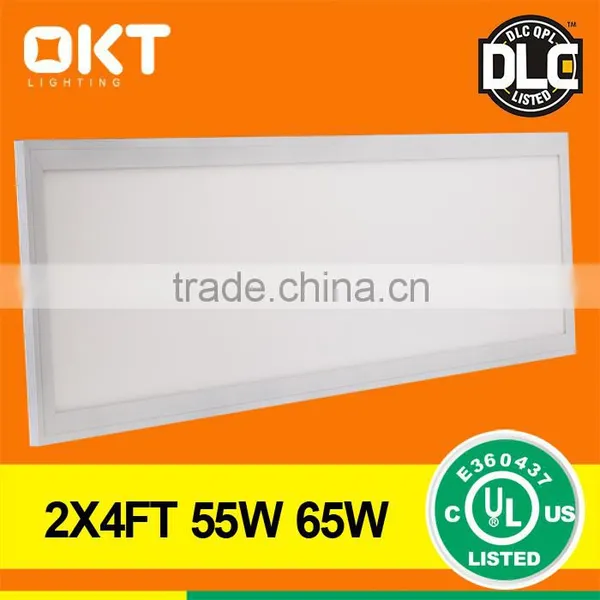

DLC UL Approved 100lm/w Led Retrofit Kit for 2 by 4 Fixtures 52w 65w

DLC UL Approved 100lm/w Led Retrofit Kit for 2 by 4 Fixtures 52w 65w thumbnail-1
DLC UL Approved 100lm/w Led Retrofit Kit for 2 by 4 Fixtures 52w 65w thumbnail-2
DLC UL Approved 100lm/w Led Retrofit Kit for 2 by 4 Fixtures 52w 65w thumbnail-3
DLC UL Approved 100lm/w Led Retrofit Kit for 2 by 4 Fixtures 52w 65w thumbnail-4
DLC UL Approved 100lm/w Led Retrofit Kit for 2 by 4 Fixtures 52w 65w thumbnail-5
DLC UL Approved 100lm/w Led Retrofit Kit for 2 by 4 Fixtures 52w 65w photo-1
DLC UL Approved 100lm/w Led Retrofit Kit for 2 by 4 Fixtures 52w 65w photo-2
DLC UL Approved 100lm/w Led Retrofit Kit for 2 by 4 Fixtures 52w 65w photo-3
DLC UL Approved 100lm/w Led Retrofit Kit for 2 by 4 Fixtures 52w 65w photo-4
DLC UL Approved 100lm/w Led Retrofit Kit for 2 by 4 Fixtures 52w 65w photo-5
US$ 70 - 80 MOQ: 5 Pieces
Key Specifications
Get Latest Price
LED Light Source:
SMD2835
Warranty(Years):
5
Input Voltage(V):
120-277V
Contact Supplier Request Quote Chat Now
Shenzhen OKT Lighting Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source SMD2835
Warranty(Years) 5
Input Voltage(V) 120-277V
Lamp Power(W) 65
Lamp Luminous Flux(lm) 6200lm
Lamp Luminous Efficiency(lm/w) 100
Color Temperature(CCT) Pure White
Working Temperature(℃) -20, 50
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
IP Rating IP44
Certification UL
Place of Origin Guangdong, China
Brand Name OKT LIGHTING
Model Number SP24-DH-XXX



DLC UL approved 100lm/w led retrofit kit for 2 by 4 fixtures 52w 65w

The led retrofit kit for 2 by 4 fixtures delivers high lumens while achieving 90 lumens per watt  in 100~277 VAC Input with fired rated junction box. This 2*2FT  square 600x1200mm flat panel   is available in 4000k, 5000k DLC CCT Options and has 0-10V dimming, which is perfect for new construction applications or retrofitting existing fluorescent troffer light fixtures with,widely used in office spaces, major retail stores, education, government, healthcare, and hospitality.



Specification of led retrofit kit for 2 by 4 fixtures

Model Item NO. Input Power Luminous Flux DLC CCT Option Input Voltage Dimming Certificate
led retrofit kit for 2 by 2 fixtures 600x600
 VS22-DM** 40 Watts 3700LM 4000K 5000K 100-277V AC 0-10V Dimming UL,DLC

led retrofit kit for 2 by 2 fixtures 600x600

 VS22-DH** 55 Watts 4900LM 4000K 5000K 100-277V AC 0-10V Dimming UL,DLC

led retrofit kit for 2 by 4 fixtures  600x1200


 		VS24-DM** 50 Watts 4600LM 4000K 5000K 100-277V AC 0-10V Dimming UL,DLC
dimmable 1200 x 600 led retrofit kit for 2 by 4 fixtures VS24-DH** 63 Watts 5600LM 4000K 5000K 100-277V AC 0-10V Dimming UL,DLC
dimmable 1200 x 300mm  led retrofit kit for 1 by 4 fixtures VS14-DM** 40 Watts 3600LM 4000K 5000K 100-277V AC 0-10V Dimming UL

dimmable 1200 x 300mm  led retrofit kit for 2 by 4 fixtures

VS14-DH** 50 Watts 4500LM 4000K 5000K 100-277V AC 0-10V Dimming UL,DLC



Advantage of led retrofit kit for 2 by 4 fixtures

OKT led retrofit kit for 2 by 4 fixtures are UL, CUL , DLC  listed, which is capable of retrofit application to existng fluorescent fixtures or new architectural recessed, Main characters:

  • cULus, DLC Listed, LM79 Report Available
  • More than 90lm/w
  • Fire rated design with Junction box
  • 0-10V dimming available
  • 5 Years Warranty
  • White or Silver Trim Color Options
  • Suitable for Damp locations
  • Accessary: Driver Box And Clips for T-Bar Included

Details Display

DLC UL approved 100lm/w led retrofit kit for 2 by 4 fixtures 52w 65wDLC UL approved 100lm/w led retrofit kit for 2 by 4 fixtures 52w 65wDLC UL approved 100lm/w led retrofit kit for 2 by 4 fixtures 52w 65wDLC UL approved 100lm/w led retrofit kit for 2 by 4 fixtures 52w 65w





Customer Feedback

  • We are happy with led retrofit kit for 2 by 4 fixtures listed and quality, let’s work on more.  ---  Luca (from NY,USA)
  • 100% love the led retrofit kit for 2 by 4 fixtures I will be ordering more this week. ----Kody(from LA,USA)
  • Thank you for your help and for the photos, are very explicit---Jose from Mexico
  • We are very pleased with led linear fixture dlc listed and the performance.------Richard from CANADA
  • the cul led panels has arrived and is excellent------John from Canada

 Packing Infomation

Model Item No. Sample Pack Mass Pack
QTY/CTN (pcs) Carton Size (cm) G.W(KG) QTY/CTN (pcs) Carton Size (cm) G.W(KG)
2x2 led retrofit kit for 2 by 4 fixtures VS22-DM** VS22-DH** 2 70*69*17 14 4 70*69*17 21
2x4 led retrofit kit for 2 by 4 fixtures VS24-DM** VS24-DH** 2 129*70*17 27 4 129*70*17 45
1x4 suspended linear led fixtures ul VS14-DH** 2 129*40*17 16 4 129*40*17 26
VS14-DM**



Warranty

5 years since the date of purchase for cul 2x4 led flush mount ceiling light ,welcome to viist our web to download OKT warranty terms.



More detailed info for OKT suspended linear led fixtures ul, pls do not hesitate to inquiry now!
