Help CenterSilicon Nitride Ceramic Sleeve Pipe
Related Products
-
Silicon Nitride Ceramic Industrial Wear Parts for SealingUS$ 1 - 300MOQ: 10 Pieces -
CNC Machine Silicon Nitride Bushing, Si3N4 Bushing, Small Ceramic PinsUS$ 1 - 5MOQ: 10 Pieces
-
Black Silicon Nitride Pins, Si3N4 Pins, Small Ceramic PinsUS$ 1 - 5MOQ: 10 Pieces
-
Ceramic Valve, Si3N4 Ceramic Valve, Precision Ceramic Ball ValveUS$ 10 - 20MOQ: 100 Pieces
-
Insulated Silicon Nitride Heat ShieldUS$ 500 - 600MOQ: 10 Pieces

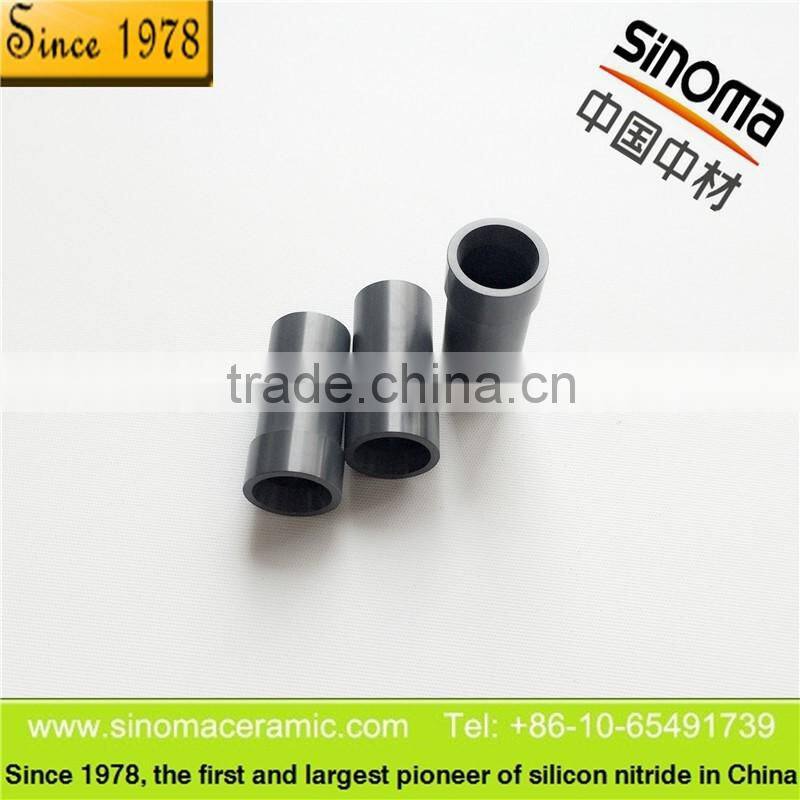

1.Pictures of Silicon Nitride Ceramic Sleeve Pipe
2.Descriptions of Silicon Nitride Ceramic Sleeve Pipe
Advantages:
1.Manufacture silicon nitride ceramic wear parts from 1995.
2.Excellent and stable quality.
3.Plenty of stocks.
Materia: silicon nitride
Stable and reliable silicon nitride industrial wear parts can be produced and supplied by our company, for we have over 30 years experience in the exploring and manufacturing. As a pioneer in China, we have supplied hundreds of silicon nitride products to different fields, such as aviation, aerospace, military, chemical, metallurgy, machinery,petroleum, energy and electronics etc. Many of them replace the imported ones and fill the blank in China.
Specially shaped silicon nitride parts can also be produced according to customers’ requirements and drawings. Relying on powerful technical ability and normative quality management system, we can provide stable and precise silicon nitride parts and offer the best service to the customers.
The specifications are as follows:
Diameter: Φ1mm~Φ300mm length: <1000mm
Characteristics of Silicon Nitride Ceramic Parts:
1. High corrosion resistance. It can be used in strong acid and alkali situation.
2.High temperature stability. It can be used in high temperature situation, and the highest temperature can reach to 1400 °C. The strength and hardness in 1100 °C is almost the same as in room temperature.
3.Electrical insulation, non-magnetic. It can be used in magnetic field
4.Low density of 3.26 g/cm3, high bending strength and high hardness. It can be considered as wear resistant materials.
5.Low thermal expansion coefficient of 3.2×10-6/K, which is 30% of Al2O3, and 40% of ZrO2. It can bear a sharp temperature change.
Silicon Nitride Material Properties
Performance Comparison of Structural Ceramics and Ordinary Steel
3.Production line of Silicon Nitride Ceramic Sleeve Pipe
4.Packaging of Products
5.Fair
We have been to a lot fairs and the latest fair is 2015 HANNOVER MESSE Gemany.
6.Information of company
Founded in 1963, Beijing Sinoma Synthetic Crystals Co, LTD.Is a hi-tech state enterprise, belongs to the China National Materials Group Co., Ltd. An excellent
technical team headed by the statelevel experts has built up,which provides a reliable guarantee for the continuous and rapid technological development.
Advanced ceramic Division (technical center of precision ceramic bearing) is mainly engaged in researching,manufacturing and developing advanced ceramic materials such as Si3N4, ZrO2, Al2O3 and so on.
Main Products:
1). Si3N4 and ZrO2 ceramic balls and rollers.
2). Si3N4 ceramic bearing rings.
3). The whole series full ceramic bearings, hybrid bearings, sliding bearings and shaft sleeves made by
Si3N4 and ZrO2 materials.
4). Industrial wear parts made by Si3N4 and ZrO2 materials. According to customer’s application condition and drawings, various precise and irregular ceramic parts can bedesigned and fabricated.
