zirconia
- 10000000 Piece / Pieces per Month
- Tianjin/Qingdao
- T/T
Product Details
Place of Origin: | Beijing, China | Brand Name: | sinoma | Model Number: | 1-100mm |
Product Description

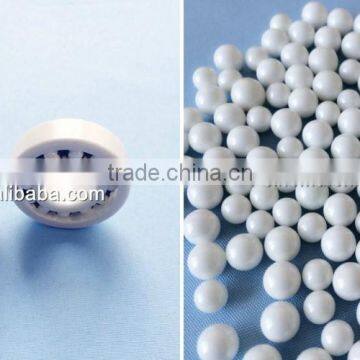

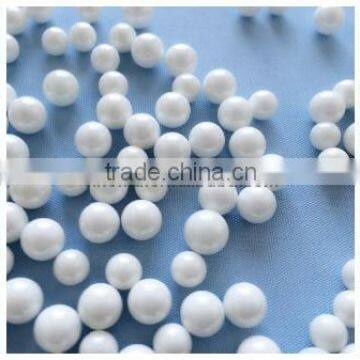

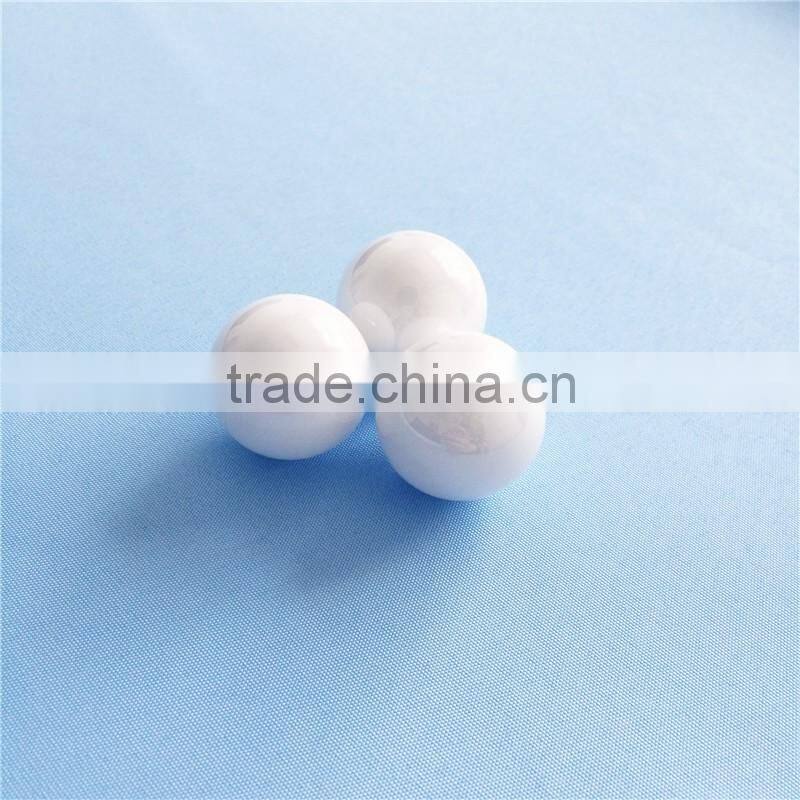

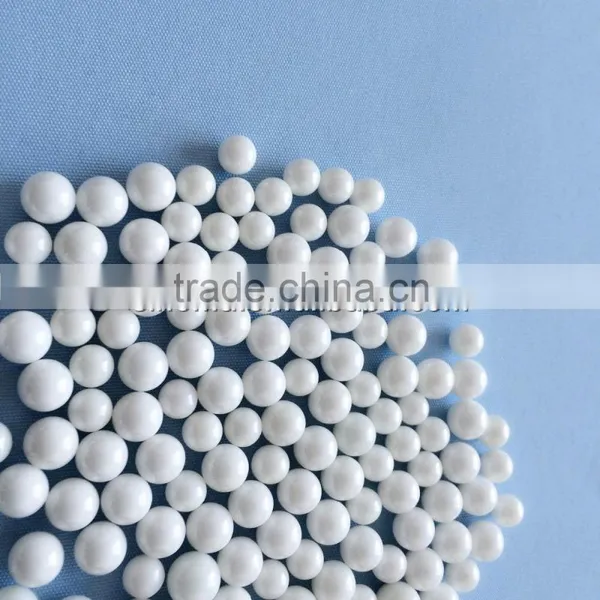

1.Pictures of zirconia
2.Descriptions of zirconia
Advantage:
1.Excellent and stable quality.
2.Plenty of stocks.
Material: Zirconia ceramic
Size Range: 1mm~150mm
Grade: G5~G40
Characteristics of zirconia:
1. Corrosion resistance, which can also be used in acid and alkali situation.
2. High temperature resistance, which remain the same strength and hardness when the temperature nearly comes to 550℃.
3. Nonmagnetic, electrical insulation, which can be used in magnetic field.
4. ZrO2ceramic balls have low density of 6.05 g/cm3,it is approximately 20% lighter than steel ball, which decrease the centrifugal force on the deep groove, in order to reduce the wear and tear.
5. Excellent resistance to oxidation and metal erosion,ZrO2 ceramic balls also can be used without lubricate environment.
6. Low frication coefficient and high surface finish.
Due to the features of high fracture toughness, high bending strength, high wear resistance, excellent heat insulating property and proper thermal expansion coefficient that closes to steel's, Zirconia ceramic balls are widely employed in ceramic bearing fields. Furthermore, the cost is much lower than silicon nitride ceramic.

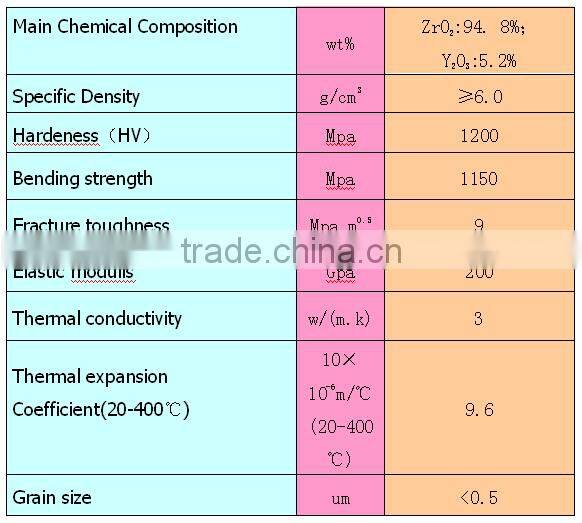

Zirconia Material Properties
Performance Comparison of Structural Ceramics and Ordinary Steel
Grade of zirconia ball
3.Application of zirconia

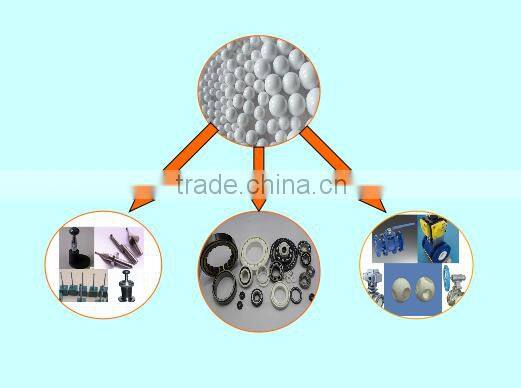

Application fields: High precise ceramic bearings, high temperature bearings, vacuum bearings, nonmagnetic bearings, chemical pump, high temperature pump, ceramic valve ball, measure ball,etc.
4.Production line of zirconia
5.Packaging of zirconia
6.Fair
We have been to a lot fairs and the lastest fair is 2015 HANNOVER MESSE Gemany.
7.Information of company
Founded in 1963, Beijing Sinoma Synthetic Crystals Co, LTD.Is a hi-tech state enterprise, belongs to the China National Materials Group Co., Ltd. An excellent technical team headed by the state-level experts has built up,which provides a reliable guarantee for the continuous and rapid technological development.
Advanced ceramic Division (technical center of precision ceramic bearing) is mainly engaged in researching,manufacturing and developing advanced ceramic materials such as Si3N4, ZrO2, Al2O3 and so on.
Main Products:
1). Si3N4 and ZrO2 ceramic balls and rollers.
2). Si3N4 ceramic bearing rings.
3). The whole series full ceramic bearings, hybrid bearings, sliding bearings and shaft sleeves made by Si3N4 and ZrO2 materials.
4). Industrial wear parts made by Si3N4 and ZrO2 materials. According to customer’s application condition and drawings, varios precise and irregular ceramic parts can be designed and fabricated
8.Welcome to contact us
Contact Us
- Beijing Sinoma Synthetic Crystals Co., Ltd.
- Contact nameHaibin Li
- Phone86-10-65492826-8288
- AddressNo. 1, Hongsongyuan
