Help CenterSilicon Nitride Ceramic Bearing
Related Products
1.Pictures of silicon nitride ceramic bearing
2.Descriptions of silicon nitride ceramic bearing
1.Manufacture silicon nitride ceramic bearing from 1995.
2.Excellent and stable quality.
3.Plenty of stocks.
Ceramic ball especially silicon nitride ceramic ball have the following performance as low density, high strength, low friction coeffecient, electrical and magnetism resistance, wear resistance, well rigidity, lubrication and maintenance free when working, it's the best choice for rollers and rings for bearing wich are used in high speed, long accuracy and long life environments. So they are widely used in aviation, aerospace, marine, petroleum, chemical, automotive, electronics, metallurgy, electric power, textile, medical equipment and other fields.
Rings:
The rings (the inside and outside) are made by silicon nitride ceramic;
Rollers:
The rollers are made silicon nitride ceramic too;
Retainers:
The retainers are made by PTFE, nylon 66, polyether acid sub-ammonia, stainless steel.
And we can produce deep groove ball bearing, full complement balls, self-aligning ball bearings, angular contact ball bearing, insert bearing.

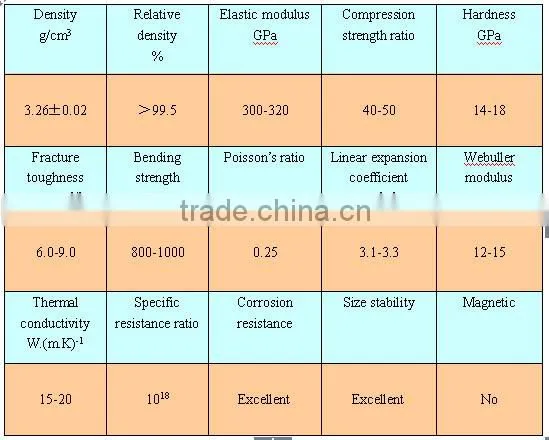

Silicon nitride Material Properties
Performance Comparison of Structural Ceramics and Ordinary Steel
3.Production line of silicon nitride ceramic bearing
4.Packaging of silicon nitride ceramic bearing
5.Fair
We have been to a lot fairs and the lastest fair is 2015 HANNOVER MESSE Gemany.
6.Information of company
Founded in 1963, Beijing Sinoma Synthetic Crystals Co, LTD.Is a hi-tech state enterprise, belongs to the China National Materials Group Co., Ltd. An excellent technical team headed by the state-level experts has built up,which provides a reliable guarantee for the continuous and rapid technological development.
Advanced ceramic Division (technical center of precision ceramic bearing) is mainly engaged in researching,manufacturing and developing advanced ceramic materials such as Si3N4, ZrO2, Al2O3 and so on.
Main Products:
1). Si3N4 and ZrO2 ceramic balls and rollers.
2). Si3N4 ceramic bearing rings.
3). The whole series full ceramic bearings, hybrid bearings, sliding bearings and shaft sleeves made by Si3N4 and ZrO2 materials.
4). Industrial wear parts made by Si3N4 and ZrO2 materials. According to customer’s application condition and drawings, varios precise and irregular ceramic parts can be designed and fabricated
7.Welcome to contact us
