Help CenterSP3382 I - MICROWAVE FREQUENCY COUNTER
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
MCP
Model Number:
SP3382 I
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SWP31000 - DDS FREQUENCY GENERATORNegotiableMOQ: 1 Piece -
MV2281 I - DIGITAL RF VOLTAGE & POWER METERNegotiableMOQ: 1 Piece
-
SG1638B - FUNCTION GENERATOR 2MHz/signal GeneratorNegotiableMOQ: 10 Pieces
-
MCP UPF60 - DDS FUNCTION (ARBITRARY) GENERATOR 60MHz With LAN OptionalNegotiableMOQ: 2 Pieces
-
MCP UPF25 - Dds Arbitrary Waveform Signal / Function Generator 25MHz With LAN OptionalNegotiableMOQ: 2 Pieces
Place of Origin
Shanghai, China
Brand Name
MCP
Model Number
SP3382 I
Specifications
.Measure frequency up to 26.5GHz.Dynamic and wide measure range
.High accuracy and high performance
.FREQUENCY COUNTER

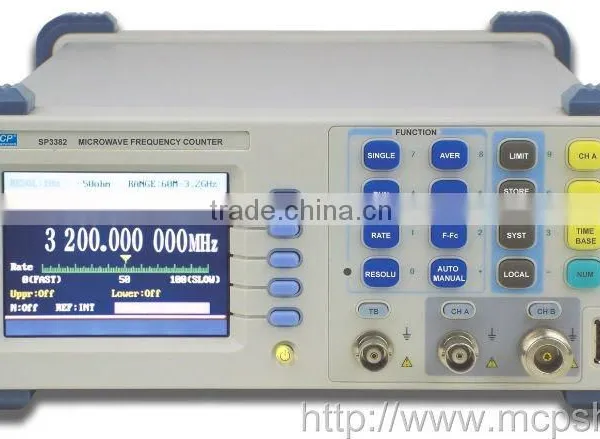

SP3382 I - MICROWAVE FREQUENCY COUNTER
Feature
. Measure frequency up to 26.5GHz
. Dynamic and wide measure range
. High accuracy and high performance
. Advanced design, compact and plastic die-casting
. Reliability MTBF>8000h
. 3.5 QVGA color LCD and soft keys
. Automatic and manual frequency, period measurement
. USB interface and GPIB optional
| SP3382 I/II/III/IV | |
| CH A | |
| 1MΩ impedance | |
| Measure frequency range | 10Hz~80MHz |
| Resolution | 1Hz, 10Hz, 100Hz, 1KHz, 10KHz, selectable and 9 digits |
| Input sensitivity | 25mVram (-20dBm) |
| Max. input level | 1Vrms (+13dBm) |
| Damage level | 3Vram(+23dBm) |
| 50Ωimpedance | |
| Measure frequency range | 60MHz~3.2MHz |
| Resolution | 1Hz, 10Hz, 100Hz, 1KHz, 10KHz, selectable and 9 digits |
| Input sensitivity | 25mVram (-20dBm)≤3GHz |
| 40mVram (-15dBm)>3GHz | |
| Max. input level | 1Vrms (+13dBm) |
| Damage level | 3Vram(+23dBm) |
| CH B | |
| Measure frequency range | 2GHz~9GHz SP3382 I |
| 2GHz~12.4GHz SP3382 II | |
| 2GHz~20GHz SP3382 III | |
| 2GHz~26.5GHz SP3382 IV | |
| Input sensitivity | ≤-25dBm 2GHz~12.4GHz |
| ≤-20dBm 2GHz~20GHz | |
| ≤-15dBm 2GHz~26.5GHz | |
| Max. input level | +7dBm |
| Damage level | +20dBm |
| Input SWR | ≤3 |
| Time base | 10MHz |
| Frequency stabillity | 1x10-8/day |
| Power supply | 110~127 VAC±10%, 220~240VAC±10% 50Hz±2Hz, 60Hz±2Hz |
| Dimensions | 255x170x370mm |
| Weight | 3Kg |
