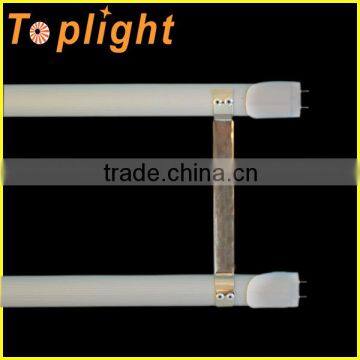

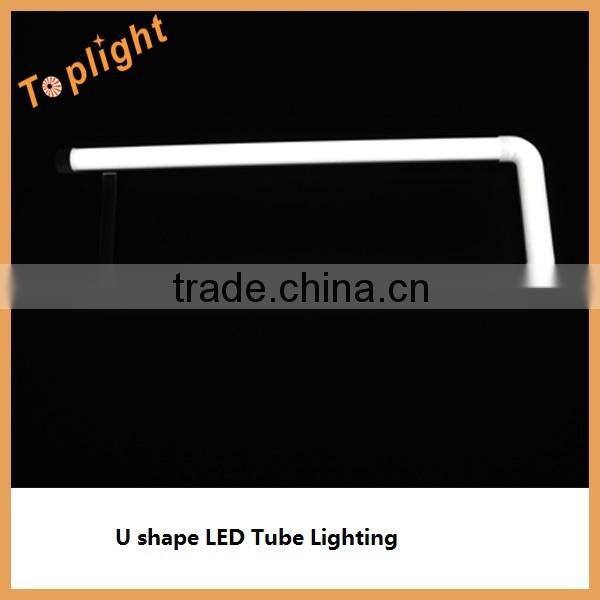

2ft U tubes 18W T8 led tube with g13 base
T8 U-Shaped lamps have been mostly used in commercial buildings, the LED U-Bulb is the green energy alternative to mercury filled fluorescent lamps models. Compared with fluorescent,U-Tube bulbs LED U-Shaped bulbs use less power.
Power: 14W,16W,18W
Dimension: 574±2MM: 182±1MM: 30±1MM
Input Voltage: 85-277VAC;
High brightness,more energy saving;
More uniform distribution of light;
The light without dark space;

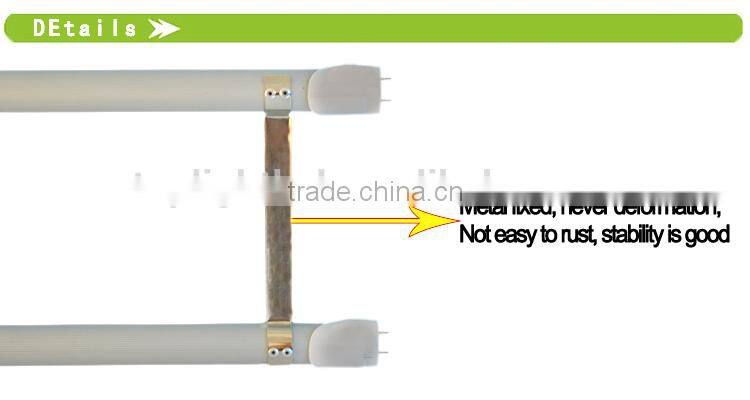

Stable structure, no easy deformation;
Normal G13 lamp base,easy to assemble;
Japan imported Rubycon capacitor Isolated driver;
Longer lifespan;
Owning patent certification;
Approval CE and RoHS Certifications.
Electrical Parameters:
| Input Voltage | 85-277VAC |
| Working Current | <0.19A |
| Operating Frequency | 50/60Hz |
| Power | 18W |
| Power Factor | >0.9 |
Optical Parameters:
| LED light source | Epistar chip SMD2835 LED |
| LED Quantity | 216Pcs |
| Luminous Flux | 1800lm |
| Color Temperature(CCT) | WW(2700-3500K),NW(4000-4500K),PW(5000-5500K),CW(6000-6500K) |
| Driver type | Internal rubycon isolated driver |
| Color Rendering Index(CRI) | 72Ra |
| Light Efficiency | 100lm/W |
| Beam Angle | 120degree |
| Lifespan | >30000hours |

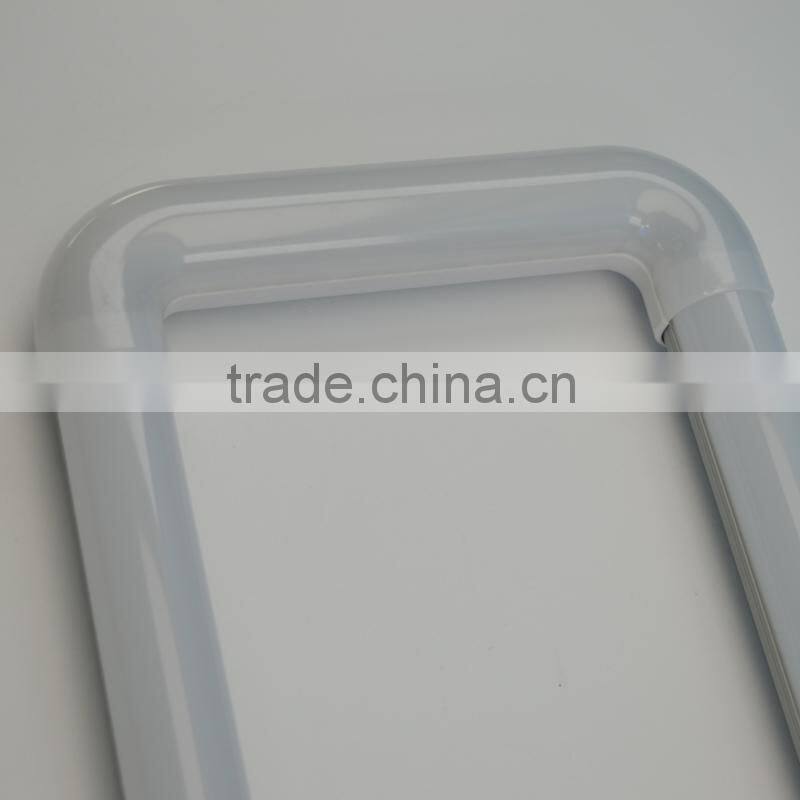

Structure:
| Material | Aluminum + PC |
| PC Cover | Milky/Striped |
| Product Size | L574*W182*Tube Dia30MM±1mm |
| Base | G13 |
| Operating Environment | Temp: -25℃~50℃; Humidity:≤95% |

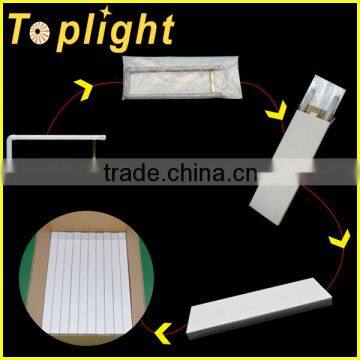

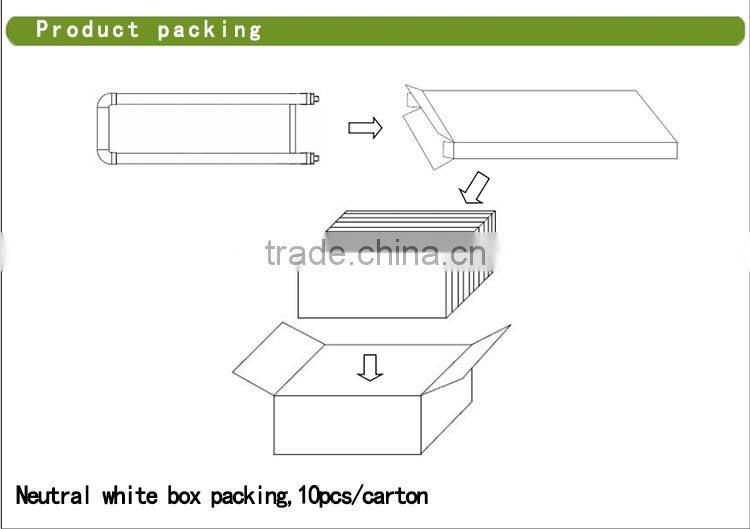

Package:
| Internal Box Size | L580*W190*H35mm |
| Carton Size | L610*W420*H230mm |
| Product N.W. | 0.39Kg |
| Product G.W. | 0.53Kg |
| Packaging Quantity | 10Pcs/carton |
| One Carton Product G.W. | 6.50Kg |

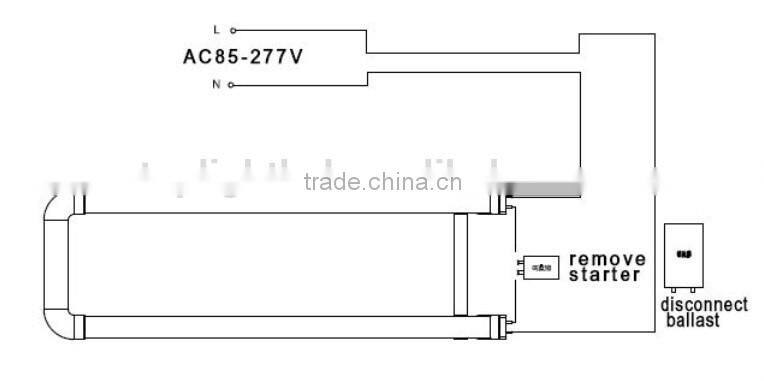

Installation:
U shape T8 LED tube light could be installed on the T8 or T10 bracket directly, pls take down the starter or electric ballast before installing.
Kindly Notice: before installing, please make sure the power source is off!

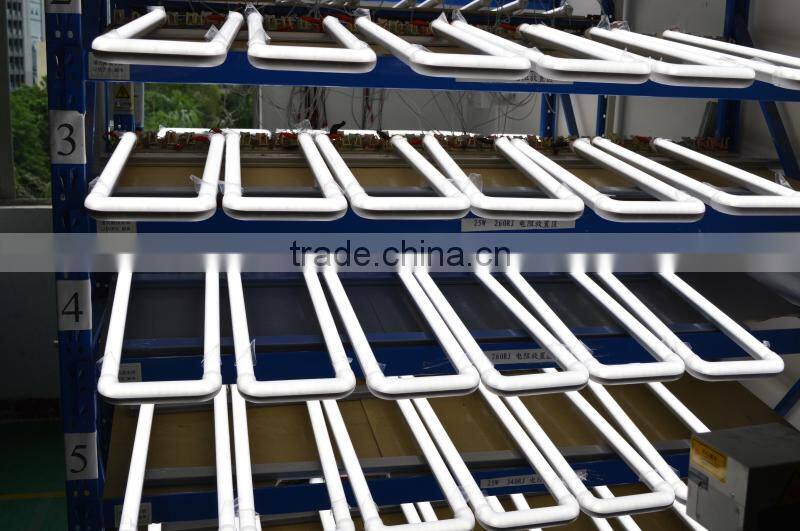

Aging:
Aging time is over 72hours, LED tube lights' efficiency will improve better in the aging, and contribute to the efficiency of late use stability. LED in product quality control aging test is a very important link.

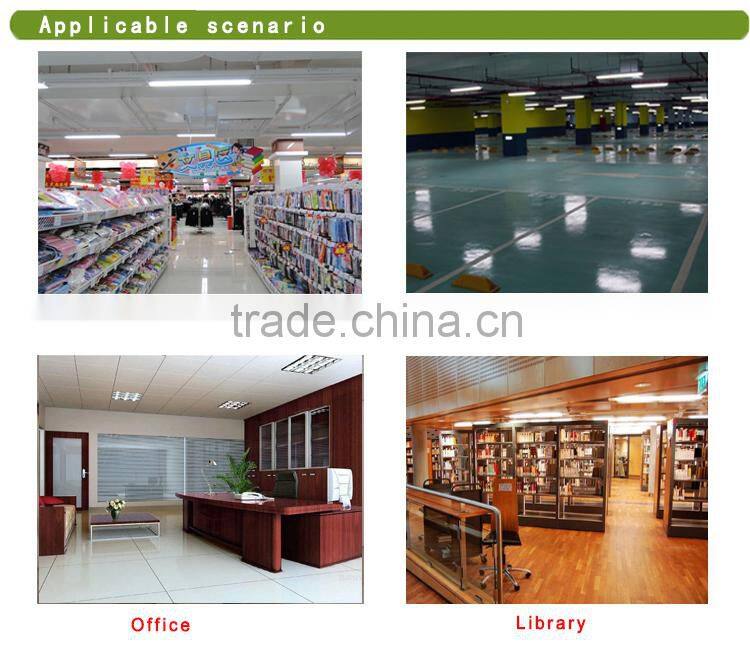

The U-Tube LED U-Shaped Bulb series are well-suited for use anywhere: homes, offices, museums, hospitals, hotels, restaurants, meeting rooms, basically anywhere conventional fluorescent lights can be found.
| Packing: 6.5KG/CTN, 10pcs/CTN, 610*420*230mm |
| Shipping: By DHL,UPS,FedEx,TNT,EMS etc door to door seribice |
