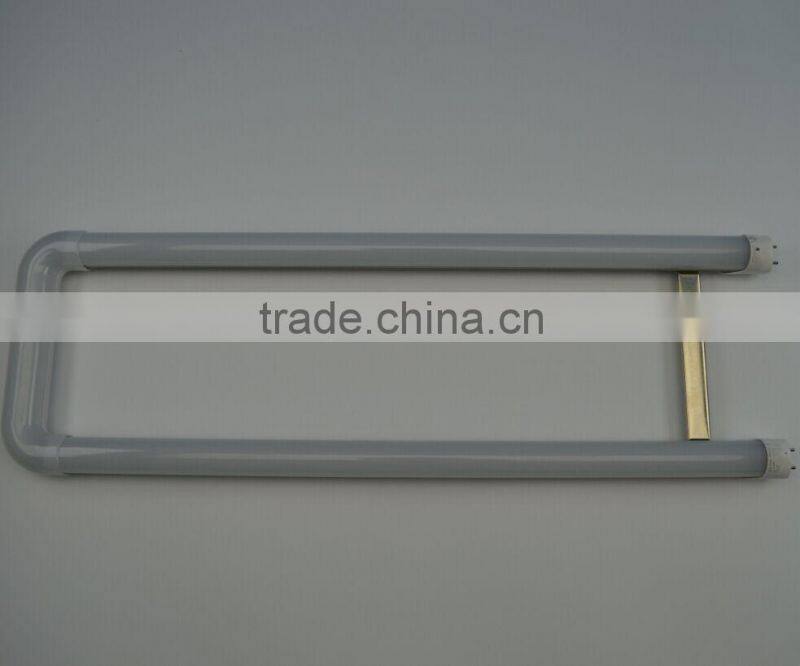

Milky 600mm Epistar smd2835 U bend 18w led tube t8

Name: Milky 600mm Epistar smd2835 U bend 18w led tube t8
Brand: toplight
Availability: InStock

FOB Price

USD $10 - $15 / Piece

10 Pieces(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

LED Light Source	Epistar SMD2835	Warranty(Years)	3
Input Voltage(V)	85-277VAC	Lamp Power(W)	18
Lamp Luminous Flux(lm)	1820	Lamp Luminous Efficiency(lm/w)	100
Color Temperature(CCT)	Cool White	Working Temperature(℃)	-20, 55
Working Lifetime(Hour)	50000	Lamp Body Material	Other, Aluminum+PC
IP Rating	IP33	Certification	CE, FCC, PSE
Place of Origin	Guangdong, China	Brand Name	toplight
Model Number	Other, TP-T8SMD108U-(10-18)W

Product Description

Milky 600mm Epistar smd2835 U bend 18w led tube t8

Advantages:

Epistar SMD2835 LED chip
New special design,no dark place

Aluminum and Milky/Striped PC cover
Good heat dissipation,Low brightness decay
Over 50,000hours lifespan

Replaced 40W conventional fluorescent lamp
CE,ROHS,FCC,PSE listed, 3years warranty

Energy saving: over 65%
Easy installation
Fast turn on or off
No noisy
No Flickering
No RF interference
Environmental protection

Technical Parameters:

TP-T8SMD108U-(10-18)W

Product Name	U shaped led tube	Input Voltage	85-277VAC	Dimension	574±2MM: 182±1MM: 30±1MM
Led source	Epistar 2835/SMD	Frequency	47-63HZ	Material	6063 AL + PC
Led quantity	108PCS	PF	PF>0.98/110VAC	Single NW(KG)	0.35KG
single led lumen	22-26LM		PF>0.93/230VAC	CTN GW(KG)	6.1KG
Color	WW,NW,CW		PF>0.90/270VAC	Packing size	10pcs/CTN,610420240mm
CRI	Ra≥72	Input current	0.073A/230VAC 0.138A/110VAC	Warranty	3years
Beam angle	120degrees	Power	(10-18)W	Lifespan	50000hours
Lumens	18W: 1700-1820lm	Driver type	Internal rubycon isolated driver	Electricity way	Single/Double ended
Beam angle	120degrees	Socket	G13 base	PC Cover	Milky lens
Operating humidity	20-80% RH no condensation	Work temperature	-20--+55℃	PC Cover	Striped lens

Aging:

Aging time is over 72hours, LED tube lights' efficiency will improve better in the aging, and contribute to the efficiency of late use stability. LED in product quality control aging test is a very important link.

Package detail:

TP-T8SMD108U-(10-18)W

0.35kg/pc, 10pcs/CTN, 610*420*240mm

Installation:

18W U shape T8 LED tube light could be installed on the T8 or T10 bracket directly, pls take down the starter before installing.
Kindly Notice: before installing, please make sure the power source is off!

Application:

Indoor usage,such as Room,Office,Hotel,School,Factory,Hospital,Building,Workshop,Coffee shop,Warehouse,Supermarket,Gymnasium etc.

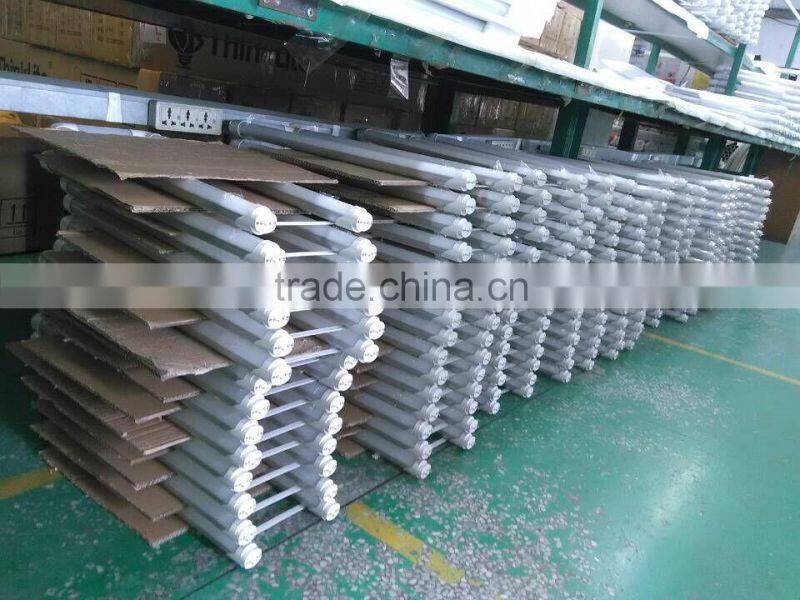

Factory Picture:
