Home > Lights & Lighting > LED Interior Lighting > LED Tube > Energy Saving Full Plastic Cover Epistar Smd5730 22w Three Years Warranty Guaranteed Led t8 Tube 5 Feet

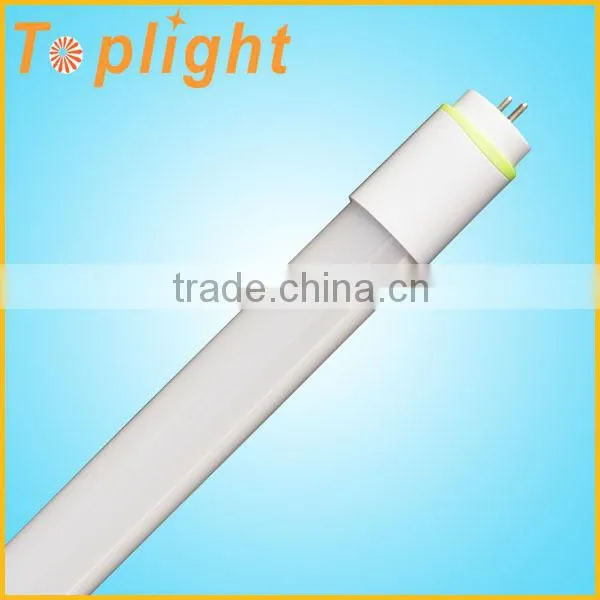

Energy Saving Full Plastic Cover Epistar Smd5730 22w Three Years Warranty Guaranteed Led t8 Tube 5 Feet

Name: Energy Saving Full Plastic Cover Epistar Smd5730 22w Three Years Warranty Guaranteed Led t8 Tube 5 Feet
Brand: Toplight
SKU: 114229665

Energy Saving Full Plastic Cover Epistar Smd5730 22w Three Years Warranty Guaranteed Led t8 Tube 5 Feet thumbnail-1

Energy Saving Full Plastic Cover Epistar Smd5730 22w Three Years Warranty Guaranteed Led t8 Tube 5 Feet thumbnail-2

Energy Saving Full Plastic Cover Epistar Smd5730 22w Three Years Warranty Guaranteed Led t8 Tube 5 Feet thumbnail-3

Energy Saving Full Plastic Cover Epistar Smd5730 22w Three Years Warranty Guaranteed Led t8 Tube 5 Feet thumbnail-4

Energy Saving Full Plastic Cover Epistar Smd5730 22w Three Years Warranty Guaranteed Led t8 Tube 5 Feet thumbnail-5

Energy Saving Full Plastic Cover Epistar Smd5730 22w Three Years Warranty Guaranteed Led t8 Tube 5 Feet photo-1

Energy Saving Full Plastic Cover Epistar Smd5730 22w Three Years Warranty Guaranteed Led t8 Tube 5 Feet photo-2

Energy Saving Full Plastic Cover Epistar Smd5730 22w Three Years Warranty Guaranteed Led t8 Tube 5 Feet photo-3

Energy Saving Full Plastic Cover Epistar Smd5730 22w Three Years Warranty Guaranteed Led t8 Tube 5 Feet photo-4

Energy Saving Full Plastic Cover Epistar Smd5730 22w Three Years Warranty Guaranteed Led t8 Tube 5 Feet photo-5

US$ 6.6 - 7.9 MOQ: 10 Pieces

Key Specifications

Get Latest Price

LED Light Source:

Epistar SMD2835

Warranty(Years):

Input Voltage(V):

100~277

Contact Supplier Request Quote Chat Now

Shenzhen Toplight Lighting Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen/Hong Kong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source Epistar SMD2835

Warranty(Years) 3

Input Voltage(V) 100~277

Lamp Power(W) 22

Lamp Luminous Flux(lm) 2200

Lamp Luminous Efficiency(lm/w) 100

Color Temperature(CCT) Other, 2700K~6500K

Working Temperature(℃) -20, 45

Working Lifetime(Hour) 50000

Lamp Body Material Aluminum Alloy

IP Rating IP33

Certification CE, EMC, LVD, VDE

Place of Origin Guangdong, China

Brand Name Toplight

Model Number Other, TP-T8SMD168-22W

energy saving full plastic cover Epistar smd5730 22w three years warranty guaranteed led t8 tube 5 feet!

Product Description

5ft All PC LED tube T8 Specifications:

Model No.	TP-T8SMD168-22W
Electrical Parameters
Rated Power	22W
Rated voltage	AC 100~277V
Rated frequency	50-63HZ
Power Factor	>0.95
Driver Type	Built-in constant current driver
Electrical connection mode	Single-ended or Double end supply
Optical Parameters
LED Type	Epistar SMD5730 168pcs
Beam angle	270°
Color temperature	2700~6500K
Luminous Flux	2100~2300lm
Light Efficiency	100~110lm/w
CRI	>80Ra
Structure Features
Lamp holder	G13/ FA8/R17D
Light Housing Material	Outer Casing Full PC+Inside Aluminum
Tube Diameter	25.5mm
Heat sink material	6063 Aluminum
OverLength	1512mm
PC Cover Kind	Milky/Clear/Stripe
Other Parameters
operating humidity	20-80% RH no condensation
Temperature Environment	-20℃~+45℃
Tube surface temperature	Below 45 ℃
Carton Packaging Qty	36pcs
Life Time	50000 hours
Certifications	CE(EMC,LVD)/RoHS
Warranty	3 years

5ft full plastic T8 LED tube Advantages:

1.Wide viewing angle to 270degree, Match traditional tube completely.

2.High brightness Taiwan Epistar Chip SMD5730 168pcs, gold wire purity up 99%.

3.Driver IC from US import, and external MOSFET, with high performance and no flash.

4.Outer casing using full plastic cover and inside with aluminum heat sink, for promoting safety and heat dissipation.

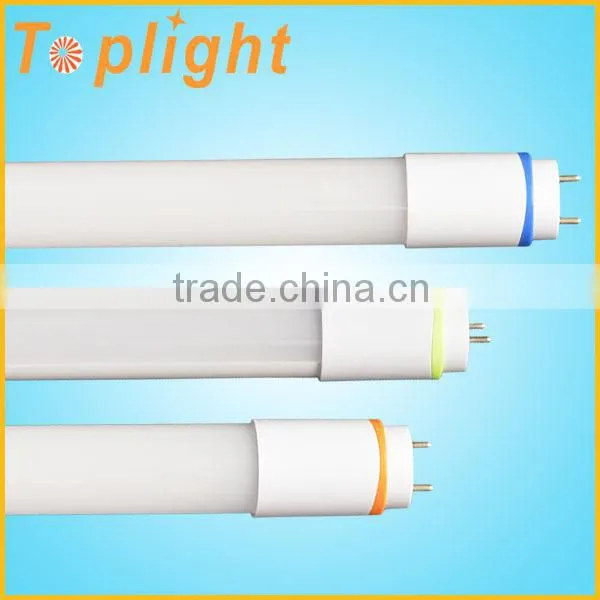

Full plastic T8 LED tube Picture Display:

LED tube T8 Installation and Replacement:

If need to replace traditional tube with inductive or electronic ballast, as below:

T8 LED tube light Application:

LED tube T8 main use for indoor lighting, such as,mall supermarket, office room,subway,shopping malls,restaurant,school,home,etc.

Packaging & Shipping

Packaging:

All plastics 5ft 22w T8 LED Tube packing: With using paper tube or PE foam for single tube;
36pcs/carton.

Shipping:

The shipping has international Express, such as,DHL FedEX,UPS,TNT,EMS,etc. Also by air, by sea.

Our Services

1. Response within 12 hours.

2. Customer label is supported.
3. OEM and ODM orders are welcome.
4. IES files and Dialux lighting design services are available.

5.Free fee laser marking for your Logo and company name.
6. Defective items will be compensated immediately or in next order.

7. Professional After-sale service:

1). Customers send us details about the damage of goods, such as pictures or video;

2). Damage is reported to engineering and QC department by sales department;

3). Possible reasons of damage and best solutions are suggested to customers;

4). Maintenance or new components or new tubes free of charge to customers within warranty.

FAQ

1. What is the general business process?

Answer : Send Inquiry to Toplight → Specification Confirmation → Quotation → Sample List Confirm → Proforma Invoice → Payment Bank Slip → Sample Delivery → Sample Satisfactory → Bulk Order List → Proforma Invoice → 30% Deposit Payment in Advance → Production Ready → 70% Balance bank slip → Delivery → After Sale Service.

2. What is the warranty?

Answer : 3~5 years warranty is offered depending on different types of lights. If the products have quality problem during warranty, we can send new replacement with freight on ours immediately if urgently. Or we prefer to send replacement with next order.

3. What is the payment term?

Answer : For sample order, we can accept T/T, Paypal, West Union, 100% in advance. For bulk order, 30% deposit in advance by T/T, 70% balance before shipping.

4. Can you offer free samples?

Answer : No, but sample fee can be refunded depending on the coming order amount.

5. Can I add my logo on the product label?

Answer : Yes, but order quantity is requested depending on different lights.Usually, the quantity is over 20pcs, we can offer free laser marking on the lights.

Thanks for your scan and attention to us! If you are interested in this type, please do not hesitate to contact us, and the enquiry will be replied within 12hours.
