T8 SI-2 DIY LED TUBE no need remove ballast anr starter & no change the wiring

Specifications

1. DIY LED TUBE;
2. no need remove ballast anr starter & no change the wiring
3. CE , PSE, FCC, RoHS AND EN 62471 approvals

Special Features:



1. High-performance LED and Build-in Z –Diodes

Even if one led failed, the remaining LEDs will still work.



2, Isolated Driver with 5-7 years lifetime

A, High EMC,no interfere
B, Power factor>0.95
C, Power Efficiency>90%





3.Warranty Policy

3 years warranty with original written warranty ; 20,000 switch cycles(on/off switching).





4, Safety

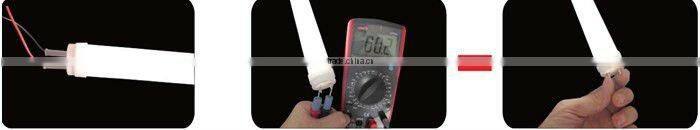

One-end powered , no electric shock risk .



One-end power           Other end has no voltage         No electric shock risk



5, Simple

     It is easy to use and install with the instruction manual .

6, Professional

Full installation instructions and diagrams provided .

7, Principles

Fully compliant with electrical Safety standards : CE , TUV , PSE, FCC

             Photobiological Safety standards : EN 62471

       Hazardous materials restriction standards: RoHS

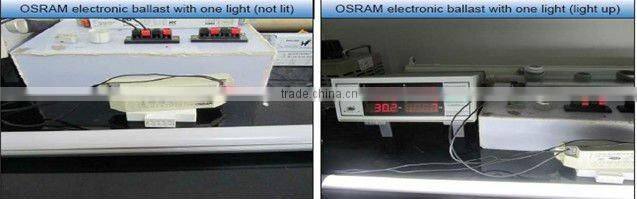

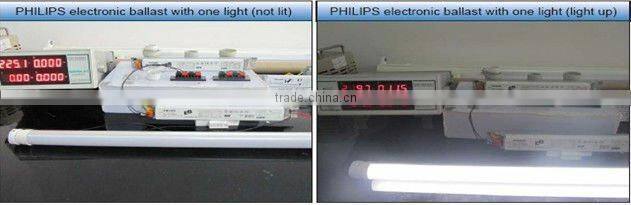

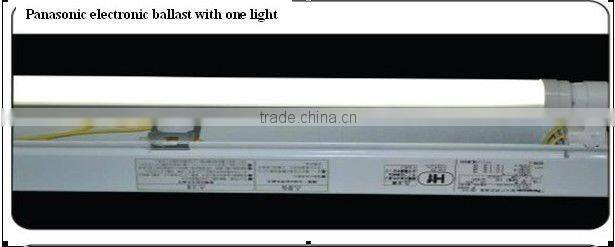

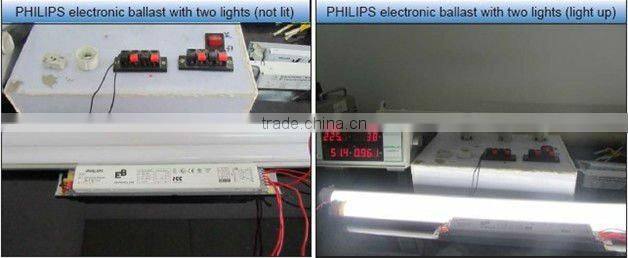

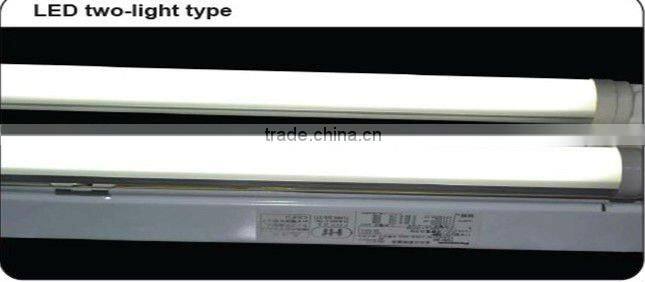

8 , Test Show (SI-2 DIY led tubes are tested with PHILIPS , OSRAM, Panasonic , TOSHIBA, Hitachi and other electronic ballast , and almost all magnetic/inductive ballast )





Application:



1. Office building lighting

2. Hotel lighting

3. Supermarket lighting

4. Warehouse lighting

5. Airport lighting

6. Factory lighting

7, School Lighting

8, Hospital Lighting

9, Car parking Lighting

10, Other lighing





Technical Specification:



Part No.	Main Spec.
CA-DT83014WF2-10W( 600mm long )	Working power	10W±10%
	Input voltage	85-265VAC
	Working frequency	50-60Hz
	Luminous flux	1000-1200Lm
	power factor	>0.95
	CRI	>85
	Color Temperature (CCT)	Cool white :   5700K±500K Nature white: 4000K±400K Warm white : 3000K±300K
	PC type	PC/ Aluminum
	Size	600mm*30mm
	Working temperature	-40~+40°C
	Storage temperature	-40~+80°C
	Light Frequency	90Lm/W
	Viewing angle	140 degree
CA-DT83014WF4-21W ( 1200mm long )	Working power	21W±10%
	Input voltage	85-265VAC
	Working frequency	50-60Hz
	Luminous flux	2000-2400Lm
	Power factor	>0.95
	CRI	>85
	Color Temperature (CCT)	Cool white :   5700K±500K Nature white: 4000K±400K Warm white : 3000K±300K
	PC type	PC/ Aluminum
	Size	1200mm*30mm
	Working temperature	-40~+40°C
	Reserve temperature	-40~+80°C
	Light Frequency	90Lm/W
	Viewing angle	140 degree
CA-DT83014WF5-25W ( 1500mm long )	Working power	25W±10%
	Input voltage	85-265VAC
	Working frequency	50-60Hz
	Luminous flux	2700-3000Lm
	Power factor	>0.95
	CRI	>85
	Color Temperature (CCT)	Cool white :   5700K±500K Nature white: 4000K±400K Warm white : 3000K±300K
	PC type	PC/ Aluminum
	Size	1500mm*30mm
	Working temperature	-40~+40°C
	Reserve temperature	-40~+80°C
	Light Frequency	90Lm/W
	Viewing angle	140 degree







Packing details :





Item No.	Tube Size	Packing Qty	Gross Weight	Carton Size(L*W*H)
CA-DT83014WF2-10W	600mm	50pcs	25kg	632*420*220mm
CA-DT83014WF4-21W	1200mm	25pcs	18kg	1246*215*220mm
CA-DT83014WF5-25W	1500mm	25pcs	22kg	1540*215*220mm















Caution & Warning



1.Use indoor or some place where no water.



2.Work under the fixed voltage.



3.Pls operate in the right way when you install the LED tube in case to avoid the power harm and body harm.



4. non-dimmable



5, If any doubt about the installation or use of this product, consult a competent electrician or technician .
