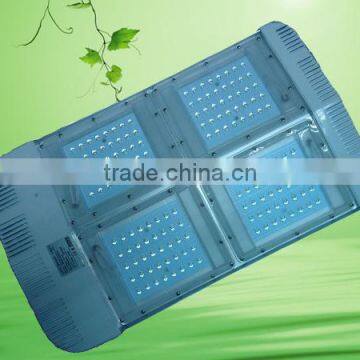

Help Center200W V LED Streetlight
Related Products
Specifications
1.V LED Streetlight;2.Original CREE LED and Meanwell Driver ;
3.CE , TUV , PSE, FCC,IP65 and RoHS approvals;
4. eco-friendly
Special Features:
1. Meanwell Driver with 5-7 years lifetime( New technology )
Meanwell Driver with unique technology , lasting 5-7 years.So our LED streetlight lifespan can reach 40,000 hours, and according to 12 hours working per day, it can be constantly used for more than 5-year.
2, LED
A, Original CREE LED
B, High CRI: 80
C, Super bright LED , up to 120Lm/pc
3.Build-in Z –Diodes ( New technology )
Even if one led failed, the remaining LEDs will still work.
4.Warranty Policy
3 years warranty with original written warranty ; 20,000 switch cycles(on/off switching).
5, Safety
Patented design for thermal structure . 24VDC input
6, Simple
It is easy to use and install with the instruction manual .
7, Professional
Full installation instructions and diagrams provided .
8, Principles
Fully compliant with electrical Safety standards : CE , TUV , PSE, FCC
Waterproof standards : IP65
Hazardous materials restriction standards: RoHS
Quality Management standards: ISO 9001
Application:
1. Street Lighting
2. Sporting area Lighting
Technical Specification:
Item NO. |
CA-SLW200-200W/ CA-SLWW200-200W |
|
Replacement |
500w Sodium lamp |
|
LED Source |
CREE LED, 107-122lm/W |
|
LED Initial Flux |
18000-19600Lm |
|
Lamp Power |
200W±10% |
|
Power Efficiency |
90% |
|
Lamp Flux |
18000lm(Tj=25) |
|
Lamp’s Efficiency |
100lm/w |
|
Luminous Flux |
WW |
17000-18000Lm |
CW |
19000-20000Lm |
|
Average Lux |
8m High |
71.8Lux |
10m High |
45.8Lux |
|
12m High |
31.5Lux |
|
Projecting Area |
8m High |
26x10m |
10m High |
33x13m |
|
12m High |
40x16m |
|
Luminous Uniformity |
0.6 |
|
Color Tempreture |
WW |
3000K±300 |
CW |
5700K±500 |
|
Average CRI |
WW |
Ra80 |
CW |
Ra75 |
|
Bean Angle |
Horizontal Axis:120 Vertical Axis :80 |
|
Light Distribution Curve (Beam Pattern) |
Asymmetric(Bat Wing )/Rectangular Beam |
|
Input Voltage |
85-2655V AC or 24V DC |
|
Frequency Range |
47-63Hz |
|
Power Factor (PF) |
0.95 |
|
Total Harmonic Distribution(THD) |
16% |
|
Storage Temperature |
-40°C--+80°C |
|
Working Environment |
-40°C--+50°C:10%-95%RH |
|
Junction Temperature (Tj) |
60°C±10%(ta=25°C) |
|
Light Body and Lampshade Material |
Aluminum Alloy and PC |
|
Working Lifetime |
40000hrs |
|
IP Rating |
IP65 |
|
Weight |
8kg |
|
Product Size (mm) |
620x320x125 |
|
Package Size (mm) |
1120x360x140 (1PC) |
|
Packing Details:
Part No. |
Item Size |
Packing Qty |
Gross Weight |
Carton Size(L*W*H) |
CA-SLW200-200W |
620x320x125 mm |
1Pcs |
8kg |
1120x360x140mm |
Caution & Warning:
1.Use outdoor.
2.Work under the fixed voltage.
3.Pls operate in the right way when you install the LED Street light in case to avoid the power harm and body harm. When installing, please note the short-circuit protect such as the socket with the fuse.
4. non-dimmable
5, If any doubt about the installation or use of this product, consult a competent electrician or technician .
