Home > Lights & Lighting > LED Outdoor Lighting > LED Street Light > 80W High CRI Super Bright U LED Streetlight 360 With Meanwell Driver

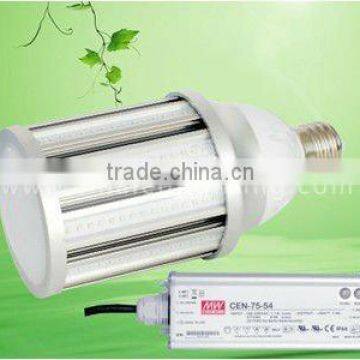

80W High CRI Super Bright U LED Streetlight 360 With Meanwell Driver

Name: 80W High CRI Super Bright U LED Streetlight 360 With Meanwell Driver
Brand: CINA
SKU: 114227921
Availability: InStock

80W High CRI Super Bright U LED Streetlight 360 With Meanwell Driver thumbnail-1

80W High CRI Super Bright U LED Streetlight 360 With Meanwell Driver photo-1

Negotiable MOQ: 2 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

LED Light Source:

SAMSUNG LED

Input Voltage(V):

85-265V AC

Lamp Power(W):

Contact Supplier Request Quote Chat Now

Shenzhen Cina LED Lighting Tech Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source SAMSUNG LED

Input Voltage(V) 85-265V AC

Lamp Power(W) 80

Lamp Luminous Flux(lm) 8000-8100Lm

Lamp Luminous Efficiency(lm/w) 100

Color Temperature(CCT) Other

Working Temperature(℃) -20, +50

Lamp Body Material Other, Aluminum Alloy and PC

IP Rating Other, IP64

Certification CE, FCC, PSE

Warranty(Year) 3

Place of Origin Guangdong, China

Brand Name CINA

Model Number CA-SLW80-80W

Specifications

U LED Streetlight
Original SAMSUNG LED
CE , TUV , PSE, FCC,EN 62471,RoHS, IP64
3 years warranty

Special Features:

1. Build-in Isolated Driver with 5-7 years lifetime( New technology )

Build-in Driver with unique technology , lasting 5-7 years.So our LED streetlights’ lifespan can reach 40,000 hours, and according to 12 hours working per day, it can be constantly used for more than 5-year.

2, LED

A, Original SAMSUNG LED

B, High CRI: 85

C, Super bright LED , up to 30Lm/pc

3.Build-in Z –Diodes ( New technology )

Even if one led failed, the remaining LEDs will still work.

4.Warranty Policy

3 years warranty with original written warranty ; 20,000 switch cycles(on/off switching).

5, Safety

Patented design for thermal structure . no danger to touch the LED because it will be protected by cover .

6, Simple

It is easy to use and install with the instruction manual .

7, Professional

Full installation instructions and diagrams provided .

8, Principles

Fully compliant with electrical Safety standards : CE , TUV , PSE, FCC

Photobiological Safety standards : EN 62471

Hazardous materials restriction standards: RoHS

Quality Management standards: ISO 9001

Application:

1. Street Lighting

2. Sporting area Lighting

3. Square, parks, roads,factories, airports, subway, courtyard

4. Others

Technical Specification:

Item NO.		CA-SLW80-80W/ CA-SLWW80-80W
Replacement		200w Sodium lamp
LED Source		SAMSUNG LED
Base		E40/E39
LED Initial Flux		8000-8100Lm
Lamp Power		80W±10%
Power Efficiency		90%
Lamp Flux		8000lm(Tj=25)
Lamp’s Efficiency		100lm/w
Luminous Flux	WW	7900-7950Lm
	CW	8000-8100Lm
Average Lux	4m High	270Lux
	6m High	110Lux
	8m High	70Lux
Luminous Uniformity		0.7
Color Tempreture	WW	3000K±300
	W	5700K±500
Average CRI	WW	Ra85
	W	Ra80
Bean Angle		360 degree
Light Distribution Curve (Beam Pattern)		Asymmetric(Bat Wing )/Rectangular Beam
Input Voltage		85-265V AC
Frequency Range		47-63Hz
Power Factor (PF)		0.95
Total Harmonic Distribution(THD)		16%
Storage Temperature		-20°C--+80°C
Working Environment		-20°C--+50°C:10%-95%RH
Junction Temperature (Tj)		60°C±10%(ta=25°C)
Light Body and Lampshade Material		Aluminum Alloy and PC
Working Lifetime		50000hrs
IP Rating		IP 64(dust proof and damp proof )
Weight		1.8kg
Product Size (mm)		122x122x302
Package Size (mm)		177x177x350 (1PC)

Packing Details:

Part No.	Item Size	Packing Qty	Gross Weight	*Carton Size(LWH)*
CA-SLW80-80W	122x122x302 mm	6Pcs	14 kg	365x365x525mm

Caution & Warning:

1.Use indoor or some place where no water.

2.Work under the fixed voltage.

3.Pls operate in the right way when you install the LED Street light in case to avoid the power harm and body harm. When installing, please note the short-circuit protect such as the socket with the fuse.

4. non-dimmable

5, If any doubt about the installation or use of this product, consult a competent electrician or technician .
