Help Center600*300mm LED Panel Light Suspended Mounting and Recessed Mounting Available
Related Products
-
1200x600mm LED Panel Light External Power Supply With UL, PSE, TUV,SAA,etc .NegotiableMOQ: 2 Units -
1200x300mm HI-Output S-Panel Light External Power Supply With UL, PSE, TUV,SAA,etc .NegotiableMOQ: 2 Units
-
38w 600*600mm LED Panel Light Suspended Mounting and Recessed Mounting AvailableNegotiableMOQ: 2 Units
-
6 Inch ,180*17mm Round LED Panel Light External Power Supply With UL, PSE, TUV,SAA,etc .NegotiableMOQ: 2 Units
-
48w 600*600mm LED Panel Light External UL DriverUS$ 90 - 100MOQ: 2 Units
Specifications
1.LED panel ligh,2.Energy saving, Long life
3.External Power supply with UL, PSE, TUV,SAA,etc
4.Eco-friendly
Special Features:
1.Imported Slim Light Guide Plate with light transmission rate at 80% could assure hight brightness.
2.External Power supply with UL, PSE, TUV,SAA,etc .
3.Warranty Policy : 3 years warranty with original written warranty; 20,000 switch cycles(on/off switching).
4, Suspended mounting and recessed mounting available
5.Low Light Loss
The light source is the low light loss and high-bright LED, which the loss is less than 5% in 10,000 hours.The aluminum back-side housing performs an excellent heat dissipation,which guarantees a lower junction temperature of the LED,thus slow down light loss.
6.Environment-Friendly
While working, no ultraviolet light and infrared light radiation. And never contain any hazardous substance, such as Mercury.
7. Anti-vibration
Solid-state,anti-vibration, not easy to be broken. Can be recessed mounted or work as a pendant.

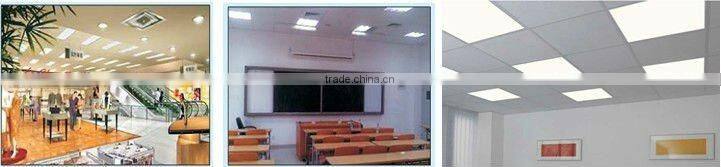

Application:
1.Office lighting
2.Hotel lighting
3.Super market lighting
4.Warehouse lighting
5. Airport lighting
6.Factory lighting
7.Classroom lighting
Technical Specification:
Part No. |
Main Spec. |
|
|
CA-PL3014WF2-19W (600*300mm) |
Working power |
19W±10% |
Input voltage |
AC85V-265V |
|
Rated frequency |
50-60Hz |
|
Luminous flux |
1300-1400Lm |
|
LED quantity |
96pcs |
|
power factor |
>0.95 |
|
CRI |
>80 |
|
Color Temperature (CCT) |
Cool white : 5700K±500K Nature white: 4000K±400K Warm white : 3000K±300K |
|
Material |
Aluminum frame/ light guide plate |
|
Size |
600mm*300mm |
|
Working temperature |
-40~+40°C |
|
Storage temperature |
-40~+80°C |
|
Lighting efficiency |
80Lm/W |
|
Packing details :
Part No. |
Item Size |
Packing Qty |
Gross Weight |
Carton Size(L*W*H) |
CA-PL3014WF2-19W |
600*300mm |
1Pcs |
4.5kg |
700*400*50mm |
Caution & Warning
1.Use indoor or some place where no water.
2.Work under the fixed voltage.
3.Pls operate in the right way when you install the LED panel light in case to avoid the power harm and body harm.When installing,please not the short-circuit protect such as the socket with the fuse.
4.Non-dimmable
5.If any doubt about the installation or use of this product, consult a competent electrician or technician .
