48 inch milk white PC cover T10 LED tube light!
LED Tube T10 Specifications:
Model No. |
TP-T10SMD144DS-28W | |||||
Electrical Parameters | ||||||
Rated Power |
28W | |||||
Rated voltage |
AC 85~277V | |||||
| Rated frequency | 50-60HZ | |||||
| Power Factor | >0.90 | |||||
Drive Type |
Built-in Isolated drive with Rubycon capacitor |
|||||
Replacement Type |
Replace traditional lamp with inductive or electronic ballast |
|||||
Power supply |
high-performance frequency constant current power supply | |||||
Optical Parameters | ||||||
| LED Chip Brand | Taiwan Epistar Chip |
|||||
| LED chip quantity | 2835SMD 144pcs | |||||
| Shine beam angle |
180°*2 | |||||
| Color temperature | 2700~6500K | |||||
| Luminous Flux | 2600~2800lm | |||||
Light Efficiency |
100lm/w |
|||||
CRI |
70~80Ra | |||||
Structure | ||||||
Shine Side |
Two sides |
|||||
Lamp holder |
G13/R17D/FA8 | |||||
Specific Function |
End cap rotatable |
|||||
Tube Material |
PC cover+6063 aluminum | |||||
Product Size |
L1212*Tube Dia30±1mm | |||||
Heat sink material |
6063 aluminum |
|||||
PC Cover Kind |
Frosted/Clear | |||||
|
Other Parameters | ||||||
operating humidity |
20-80% RH no condensation | |||||
Temperature Environment |
-20℃~+60℃ | |||||
Tube surface temperature |
Below 45 ℃ | |||||
Carton Packaging Size |
L*W*H: 1350*230*230mm | |||||
Life time |
50000 hours | |||||
Certifications |
CE(EMC,LVD)/RoHS/PSE/FCC |
|||||
| Warranty | 3 years | |||||
Two side shine led tube Advantages:
1.LED Chip: Taiwan Epistar Chip SMD2835,pure gold wire,144leds/28w/pc,lumen>2800lm.
2.Complete independent Mould,with more prefect appearance and professional design.
3.Imported PC cover and RUBYCON capacitor from Japanese,which is the highest level.
4.Professional design for billboard lights, Two sides shine equal to 2 pcs led lights.
5.Existing overheating protection system,no influence from voltage change.
6.Free for laser marking from your LOGO or company.
7.CE,RoHS,FCC,PSE approval, 3 years warranty.

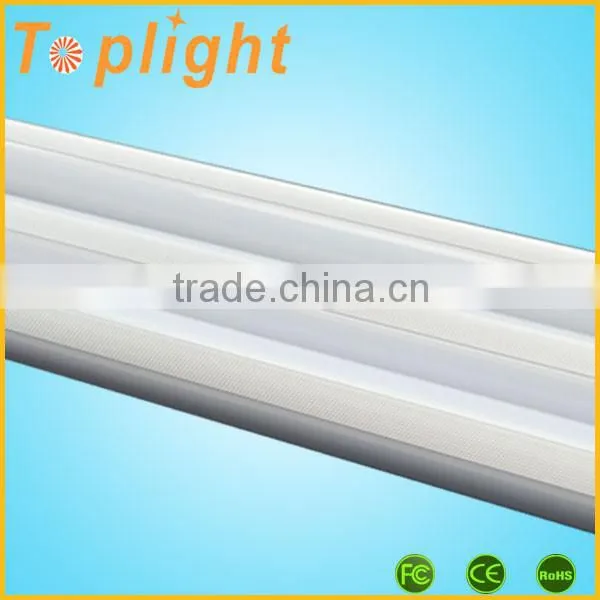

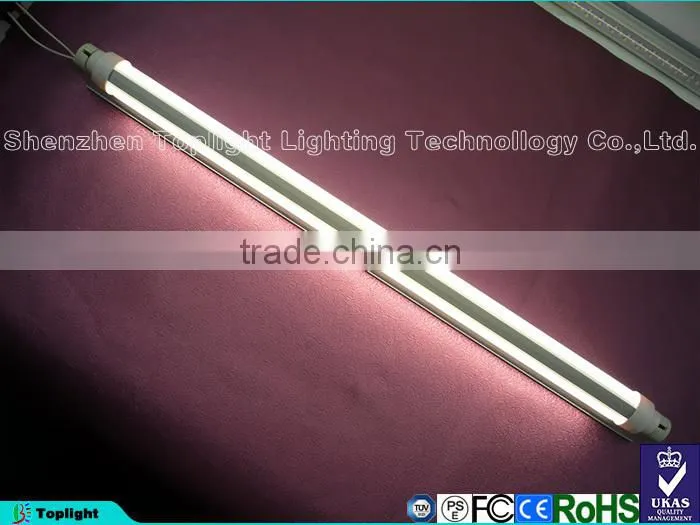

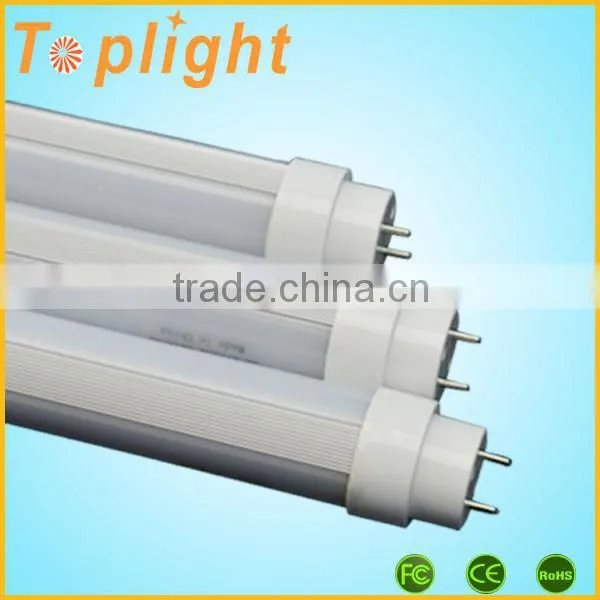

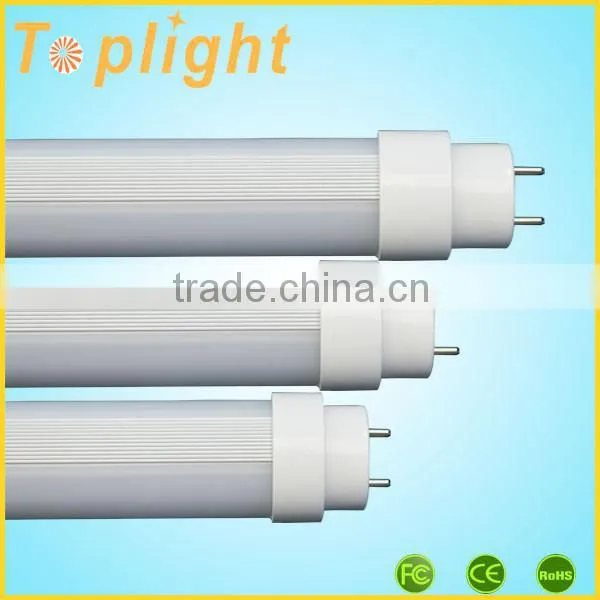

Two side shine led tube Show:

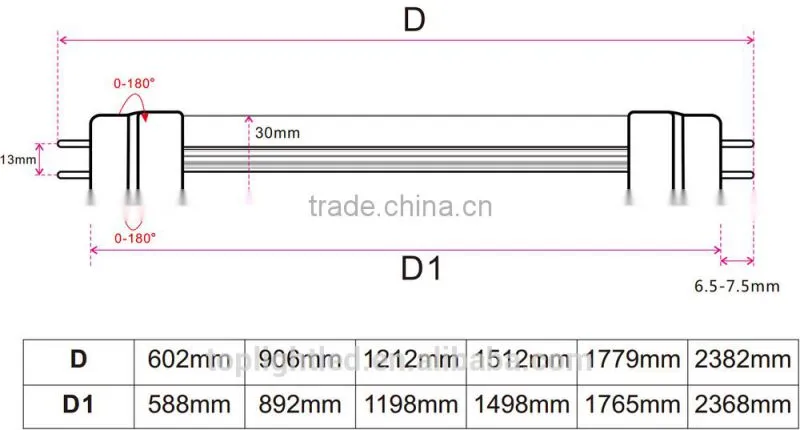

Double side shine led tube Size:

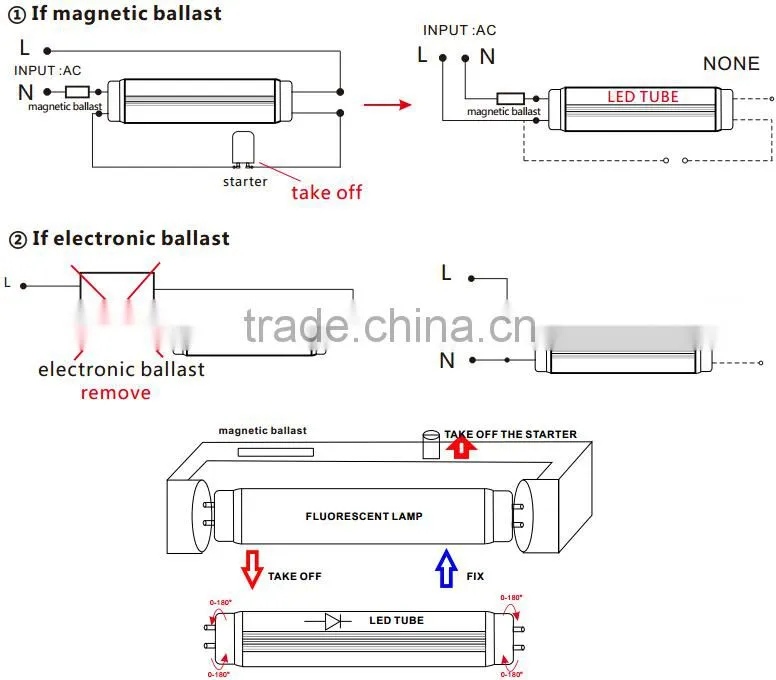

led billboard light installation instruction:
The single side supply replacement and instruction:

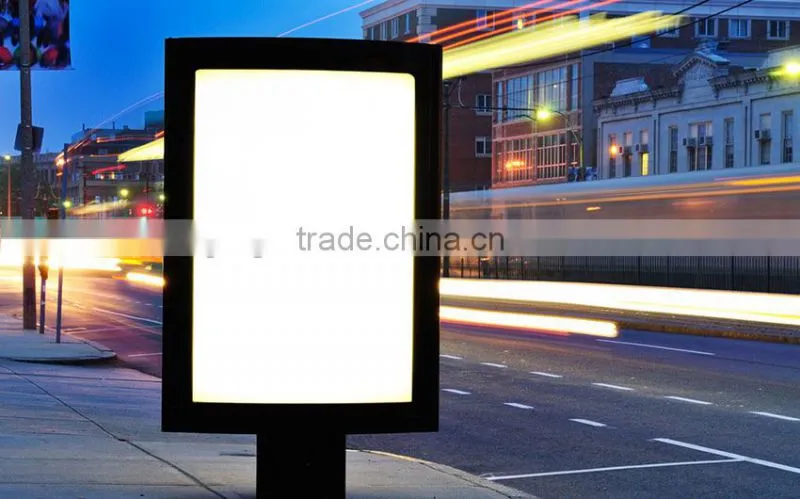

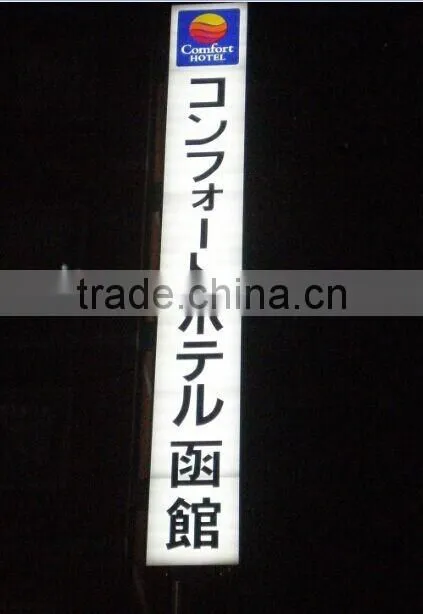

Advertising board LED Tube Application:
1. Response within 12 hours.
2. Customer label is supported
3. OEM and ODM orders are welcome.
4. IES files and Dialux lighting design services are available.
5. Defective items will be compensated immediately or in next order.
6. Professional After-sale service:
1). Customers send us details about the damage of goods, such as pictures or video;
2). Damage is reported to engineering and QC department by sales department;
3). Possible reasons of damage and best solutions are suggested to customers;
4). Maintenance or new components or new tubes free of charge to customers within warranty.
