Top Quality Sign Box LED Lamps Double Sides LED Tube Light High Output 4ft 5ft 6ft 7ft 8ft

Top Quality Sign Box LED Lamps Double Sides LED Tube Light High Output 4ft 5ft 6ft 7ft 8ft thumbnail-1
Top Quality Sign Box LED Lamps Double Sides LED Tube Light High Output 4ft 5ft 6ft 7ft 8ft thumbnail-2
Top Quality Sign Box LED Lamps Double Sides LED Tube Light High Output 4ft 5ft 6ft 7ft 8ft thumbnail-3
Top Quality Sign Box LED Lamps Double Sides LED Tube Light High Output 4ft 5ft 6ft 7ft 8ft thumbnail-4
Top Quality Sign Box LED Lamps Double Sides LED Tube Light High Output 4ft 5ft 6ft 7ft 8ft thumbnail-5
Top Quality Sign Box LED Lamps Double Sides LED Tube Light High Output 4ft 5ft 6ft 7ft 8ft thumbnail-6

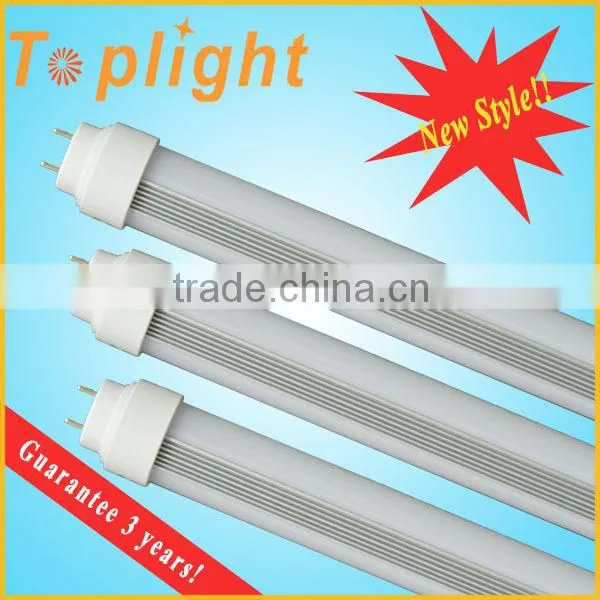

Top Quality Sign Box LED Lamps Double Sides LED Tube Light High Output 4ft 5ft 6ft 7ft 8ft photo-1
Top Quality Sign Box LED Lamps Double Sides LED Tube Light High Output 4ft 5ft 6ft 7ft 8ft photo-2
Top Quality Sign Box LED Lamps Double Sides LED Tube Light High Output 4ft 5ft 6ft 7ft 8ft photo-3
Top Quality Sign Box LED Lamps Double Sides LED Tube Light High Output 4ft 5ft 6ft 7ft 8ft photo-4
Top Quality Sign Box LED Lamps Double Sides LED Tube Light High Output 4ft 5ft 6ft 7ft 8ft photo-5
Top Quality Sign Box LED Lamps Double Sides LED Tube Light High Output 4ft 5ft 6ft 7ft 8ft photo-6
US$ 18 - 25 MOQ: 30 Pieces
Key Specifications
Get Latest Price
LED Light Source:
Eipstar 3528 LED
Warranty(Years):
3
Input Voltage(V):
100~277VAC
Contact Supplier Request Quote Chat Now
Shenzhen Toplight Lighting Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Eipstar 3528 LED
Warranty(Years) 3
Input Voltage(V) 100~277VAC
Lamp Power(W) 40
Lamp Luminous Flux(lm) 3900-4100lm
Lamp Luminous Efficiency(lm/w) 90
Color Temperature(CCT) Other, cool white, natural white,warm white
Working Temperature(℃) -20, 40
Working Lifetime(Hour) 50000
Lamp Body Material Other, PC+AL
IP Rating Other, IP 30
Certification CE, PSE
Place of Origin Guangdong, China
Brand Name Topligt
Model Number T10

Top Quality Sign box LED Lamps Double sides LED Tube High output 4ft 5ft 6ft 7ft 8ft

Top Quality Sign box LED Lamps Double sides LED Tube Light High output 4ft 5ft 6ft 7ft 8ft

Advantages



Product advantage :

 1.Double sided LED Tube is our patent product,tailored for US market,Hot-selling now,

2.Great Design,Super bright since it's 240degrees shine(2x120°),Rotating lamp holder 180°,T10 G13,Very suitable for gasstation. advertising and sign box lighting.
3.Competitive price as we are the professional manufacturer in Shenzhen for 7years.
4.Our products are surely of standard quality,Japanese Imported PC cover and RUBYCON capacitor and high quality Epistar LED chip.Every product inspected strictly by trained workers from assembly,test,aging and packing before shipping.
5.Great after-service.We will be patient to cooperate customers to solve the complaints on time,Building a long term cooperative is our cooperation purpose.
Professional Spec





Specification:



Length :2382mm

LED's Q'ty:576pcs 3528 LEDs

Payment Term: TT or Paypal/Western Union

Shipping Term: by express, by air or by sea(up to you)

Delivery Time: 4-7days for sample; 7-14days for bulk

Model No.: TP-T10SMD576DS-40W

Min order:30pcs

FOB Port: Shenzhen port







Technical specifications



TP-T10SMD616DS-30W



Introduction




Base (standard designation)

T10 G13



Shell material

Aluminum + Plastic(half aluminum,half plastic)



Plastic cover version

Clear/Frosted



Mercury-free

Yes



Recycling

Yes




Main electrical data



Rated wattage(Walt)

40W



Total wattage/power(Walt)

40±1W



Dimension(mm)

2382mm*30mm±1mm



Input Voltage (Nominal voltage)

AC85-277V



Operating frequency

50~60 Hz



Power factor(PF)

>95%



CRI(Ra)

>75



CT

2700-6500K



LED Driver

Rubycon Isolated driver



Light Source

3525LED



LED lamps quantity

576PCS



Lumen

110-125LM/W



Light Technical Data



Beam Angle

240°



Operating temperature(Celsius degree)

-20~+45 Degrees Celsius



Storage temperature(Celsius degree)

-20~+45 Degrees Celsius



Operation Humidity(RH)

 ≤80%



Warranty

3years















Models:





                   Model Power Length
TP-T10SMD216DS-(10-14)W 10-14W 2ft(602mm)
TP-T10SMD288DS-(10-14)W 10-14W 2ft(602mm)
TP-T10SMD216DS-(12-16)W 12-16W 3ft(906mm)
TP-T10SMD288DS-(12-26)W 12-26W 4ft(1212mm)
TP-T10SMD336DS-(14-26)W 14-26W 4ft(1212mm)
TP-T10SMD384DS-(16-26)W 16-26W 4ft(1212mm)
TP-T10SMD432DS-(22-26)W 22-26W 4ft(1212mm)
TP-T10SMD336DS-(22-32)W 22-32W 5ft(1512mm)
TP-T10SMD616DS-(20-30)W 20-30W 5ft(1512mm)
TP-T10SMD432DS-(24-36)W 24-36W 6ft(1779mm)
TP-T10SMD528DS-(28-36)W 28-36W 6ft(1779mm)
TP-T10SMD576DS-(36-45)W 36-45W 8ft(2382mm)





Aging:



The double shine  tube light's aging time is over 72hours, the LED tube lights' efficiency will improve better in the aging, and contribute to the efficiency of late use stability. LED in product quality control aging test is a very important link

Product Description

 Detailed description

Top Quality Sign box LED Lamps Double sides LED Tube Light High output 4ft 5ft 6ft 7ft 8ft


Top Quality Sign box LED Lamps Double sides LED Tube Light High output 4ft 5ft 6ft 7ft 8ftTop Quality Sign box LED Lamps Double sides LED Tube Light High output 4ft 5ft 6ft 7ft 8ft

Top Quality Sign box LED Lamps Double sides LED Tube Light High output 4ft 5ft 6ft 7ft 8ft


 Installation Direction

 Top Quality Sign box LED Lamps Double sides LED Tube Light High output 4ft 5ft 6ft 7ft 8ft



 Package

Packaging & Shipping





 Top Quality Sign box LED Lamps Double sides LED Tube Light High output 4ft 5ft 6ft 7ft 8ft


  Application:
Top Quality Sign box LED Lamps Double sides LED Tube Light High output 4ft 5ft 6ft 7ft 8ft

Top Quality Sign box LED Lamps Double sides LED Tube Light High output 4ft 5ft 6ft 7ft 8ftTop Quality Sign box LED Lamps Double sides LED Tube Light High output 4ft 5ft 6ft 7ft 8ftTop Quality Sign box LED Lamps Double sides LED Tube Light High output 4ft 5ft 6ft 7ft 8ft



Company Information



Top Quality Sign box LED Lamps Double sides LED Tube Light High output 4ft 5ft 6ft 7ft 8ftTop Quality Sign box LED Lamps Double sides LED Tube Light High output 4ft 5ft 6ft 7ft 8ftTop Quality Sign box LED Lamps Double sides LED Tube Light High output 4ft 5ft 6ft 7ft 8ft





Shipping&Payment





Top Quality Sign box LED Lamps Double sides LED Tube Light High output 4ft 5ft 6ft 7ft 8ft



Thank you so much for your time to scan our products,If you are interested in know more,Kindly you contact us freely,Your inquiry will be replied in 24hours.



------------------Welcome to make a field inspection of our factory ^_^
